BikeWise

Specialized Men's Epic Expert 2018

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension

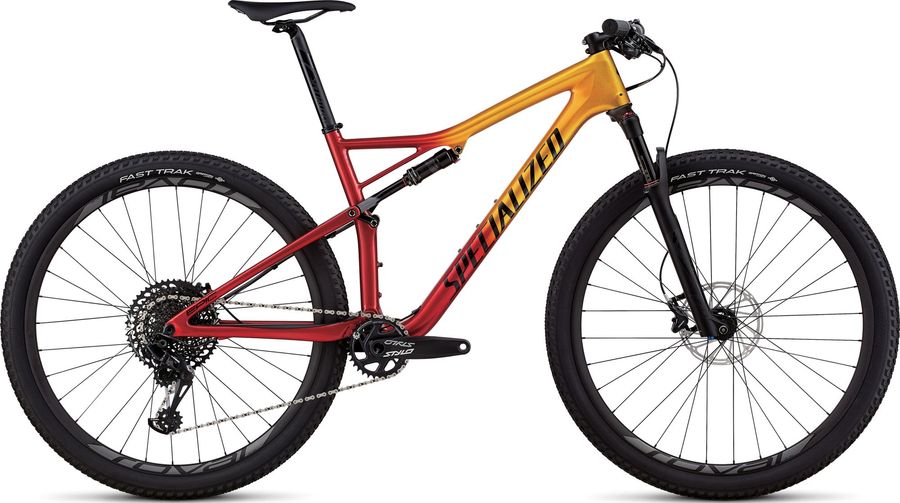

Specialized Men's Epic Expert 2018

About the Specialized Men's Epic Expert 2018

The Specialized Men's Epic Expert 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12).

Specifications

Acessories
Grip
Specialized Sip Grip
Pedals
Specialized Plataforma 9/16"
Components
Handlebar
Specialized Mini Rise Alumínio
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Saddle
Specialized Phenom Comp
Drivetrain
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Bottom bracket
SRAM GXP 108 g
BB frame interface
English/BSA (MTB/Road: 68/73mm), English/BSA (MTB: 83mm), English/BSA 100mm, English/BSA 68/73mm, English/BSA 68mm, English/BSA 73mm, English/BSA 83mm, English/BSA Tandem, Italian (70mm)
Bearing type
Ceramic, Standard
Chain line
51.0mm, n/a
Crank interface
GXP
Cup material
Aluminum
Model
BB-GXP-A1
Name
GXP Bottom Bracket
Spindle diameter
24mm
Weight based on
BB GXP Team English 68/73
Weight
108
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Crankset
Truvativ Stylo 6K 11/12s
BB compatibility
BB30/PF30-68/73mm
GXP 100mm/PF GXP 121mm
GXP/PF GXP 68/73mm
PowerSpline BB
BB spindle interface
24mm, 30mm, Power Spline
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 66.5mm, 76.5mm
Chainring material
Aluminum
Chainring size
30T, 32T, 34T
Crank arm length
165mm, 170mm, 175mm
Model
FC-STYL-6K-A1
Name
STYLO 6K Crankset
Speeds
11/12
Shifter
SRAM GX Eagle 11s
Cable length
2200mm
Cable pull ratio
X-actuation
Color
Black
Compatible derailleur hub
RD: 11s
Matchmaker compatible
Yes
Model
SL-GX-1PA-A1
Name
GX-e 11-speed Trigger Shifter
Shifter type
Trigger
Speeds
11
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Specialized FACT 11m carbon
Front suspension
RockShox SID
Wheels
Spokes
DT Swiss Revolution
Tires
Specialized Fast Trak 29x2.3"
Rims
Roval Control

Geometry

Size S M L XL
a
Seat tube length
400,0
434,0
470,0
520,0
b
Seat tube angle
74,75º
74,75º
74,75º
74,75º
c
Top tube length
568,0
595,0
623,0
649,0
d
Head tube length
95,0
105,0
120,0
140,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1095,0
1123,0
1152,0
1178,0
i
Chainstay length
438,0
438,0
438,0
438,0
j
Bottom bracket drop
38,9
38,9
38,9
38,9
k
Stack height
588,0
597,0
611,0
630,0
l
Reach
408,0
433,0
456,0
475,0
m
Standover height
764,0
770,0
776,0
799,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
