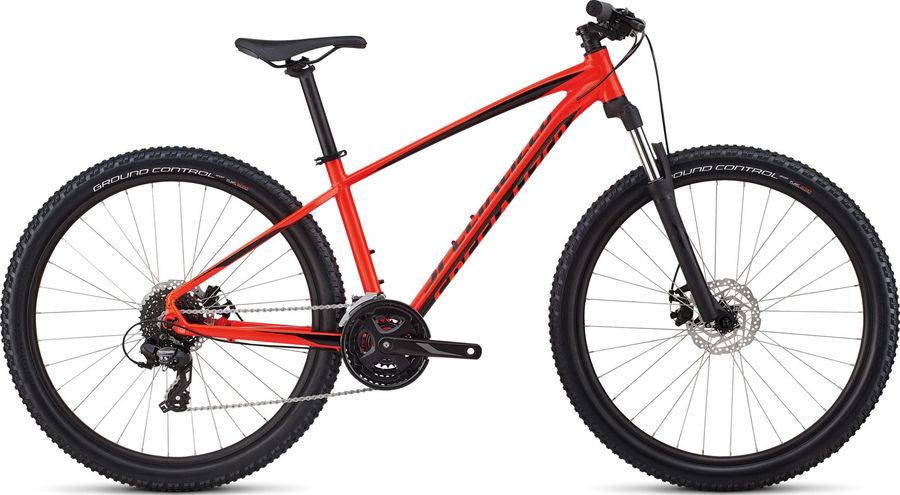

Specialized Men's Pitch 2019

MTB Trail

Groupset

Shimano Tourney

Frame material

Alloy

Wheel size

27,5"

Suspension type

Hardtail

About the Specialized Men's Pitch 2019

The Specialized Men's Pitch 2019 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 24 gears (3x8).

Specifications

Acessories
Pedals	Specialized Dirt

Drivetrain
Rear derailleur	Shimano Tourney RD-TX800 SGS 8/7s
B axle material Stainless steel Bracket body finish Painted Bracket body material Resin Compatible chain HG 8/7-speed Lower pulley max 34T Lower pulley min 28T Model RD-TX800 P axle finish Zinc plated P axle material Steel pulley.screws_material Steel Pulley teeth 13/13T Pulley cage SGS Speeds 8/7 Upper pulley max 14T Upper pulley min 11T Total capacity 43T
Front derailleur	Shimano Tourney TX FD-TX800
action.top_swing applicable_top_mid_tooth_difference 10T cable_route_type.dual_pull Chain guide finish Chrome plated Chain guide material Steel Primary color Series color Compatible chain HG 8/7-speed front_clamp_band.finish Painted front_clamp_band.material Steel Inner link finish Painted Inner link material Steel Model FD-TX800-TS3 Outer link finish Zinc plated Outer link material Steel Rear clamp band base bracket finish Painted Rear clamp band base bracket material Steel Stroke adjusting screw finish Zinc plated Stroke adjusting screw material Steel Total capacity 20T
Shifter	Shimano ST-EF41
Bracket material Steel Clamp bolt material Steel Brake cable type T-type Brake lever material Steel/Resin Brake cable adjust Brake cable adjust type Two hand Compatible brake type V-Brake Lever size finger 2 Brake reach adjust Primary color Black Model ST-EF41-L Shifting lever front speeds 3 Main lever body material Resin Shifting lever optical gear display With Shifting lever recommended shifting lever outer casing OT-SIS40 Release lever body material Resin Shifter type EZ FIRE PLUS Shifting lever cable material Steel Shifting lever cable adjust

Frameset
Frame	Specialized A1 Alumínio

Wheels
Rims	Specialized Stout XC 27.5

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Tourney 3 × 8

Crank: 44-24T

Cassette: 11-34T

Speeds: 24s

Gearing

Average

0,71

Average

Compared to similar bikes, the Specialized Men's Pitch 2019 has a good uphill performance and an excellent downhill performance.

Report incorrect information

Geometry

Size	XS	S	M	L	XL
a Seat tube length	310,0	360,0	415,0	450,0	510,0
b Seat tube angle	74,0º	73,0º	73,0º	73,0º	73,0º
c Top tube length	542,0	572,0	599,0	625,0	649,0
d Head tube length	95,0	95,0	100,0	120,0	135,0
e Head tube angle	68,5º	68,5º	68,5º	68,5º	68,5º
f Rake	-	-	-	-	-
g Trail	-	-	-	-	-
h Wheelbase	1063,0	1083,0	1112,0	1139,0	1165,0
i Chainstay length	435,0	435,0	435,0	435,0	435,0
j Bottom bracket drop	43,0	43,0	43,0	43,0	43,0
k Stack height	562,0	562,0	585,0	604,0	618,0
l Reach	380,0	400,0	420,0	440,0	460,0
m Standover height	660,0	690,0	739,0	766,0	808,0
x Bottom bracket height	-	-	-	-	-
y Front center	-	-	-	-	-
