Specialized Men's S-Works Epic XX1 Eagle 2018

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension

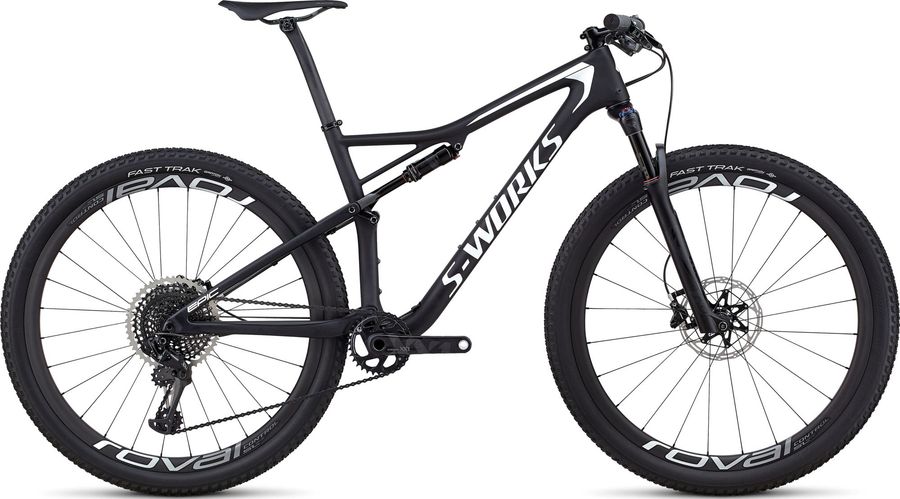

Specialized Men's S-Works Epic XX1 Eagle 2018

About the Specialized Men's S-Works Epic XX1 Eagle 2018

The Specialized Men's S-Works Epic XX1 Eagle 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12).

Specifications

Acessories
Grip
Specialized Sip Grip
Pedals
Specialized Plataforma 9/16"
Components
Seatpost
Specialized S-Works FACT
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Steam
Specialized S-Works SL
Saddle
Specialized S-Works Phenom
Handlebar
Specialized S-Works Carbon Mini Rise
Drivetrain
Bottom bracket
SRAM GXP 108 g
BB frame interface
English/BSA (MTB/Road: 68/73mm), English/BSA (MTB: 83mm), English/BSA 100mm, English/BSA 68/73mm, English/BSA 68mm, English/BSA 73mm, English/BSA 83mm, English/BSA Tandem, Italian (70mm)
Bearing type
Ceramic, Standard
Chain line
51.0mm, n/a
Crank interface
GXP
Cup material
Aluminum
Model
BB-GXP-A1
Name
GXP Bottom Bracket
Spindle diameter
24mm
Weight based on
BB GXP Team English 68/73
Weight
108
Crankset
SRAM XX1 Eagle 11/12s
BB compatibility
BB30/PF30-68/73mm
BB30A
GXP 100mm/PF GXP 121mm
GXP/PF GXP 68/73mm
BB spindle interface
24mm, 30mm
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 66.5mm, 76.5mm
Chainring material
Aluminum
Chainring size
30T, 32T, 34T, 36T, 38T
Crank arm length
165mm, 170mm, 175mm
Model
FC-XX-1-B1
Name
XX1 Eagle™ Crankset
Speeds
11/12
Chain
SRAM XX1 246 g
Chain connector
PowerLock
Chain length links
118 links
Color inner link
Silver
Color outer link
Silver
Compat speed
11s
Inner link finish
Chrome Plated
Model
CN-XX-1-A1
Name
XX1 HARD CHROME Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
246
Shifter
SRAM XX1 EAGLE 12s 122 g
Cable length
2200mm
Cable pull ratio
X-actuation
Color
Black, Gold
Compatible derailleur hub
RD:12s
Matchmaker compatible
Yes
Model
SL-XX-1-B1
Name
XX1 Eagle Trigger Shifter
Shifter type
Trigger
Speeds
12
Weight
122
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Specialized S-Works FACT 12m
Front suspension
RockShox SID
Wheels
Spokes
DT Swiss Competition
Rear hub
Roval Control SL, selado, 12x148mm, 28h
Tires
Specialized Fast Trak 29x2.3"
Rims
Roval Control
Front hub
Roval Control SL, selado, 15x110mm, 24h

Geometry

Size S M L XL
a
Seat tube length
400,0
434,0
470,0
520,0
b
Seat tube angle
74,75º
74,75º
74,75º
74,75º
c
Top tube length
568,0
595,0
623,0
649,0
d
Head tube length
95,0
105,0
120,0
140,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1095,0
1123,0
1152,0
1178,0
i
Chainstay length
438,0
438,0
438,0
438,0
j
Bottom bracket drop
38,9
38,9
38,9
38,9
k
Stack height
588,0
597,0
611,0
630,0
l
Reach
408,0
433,0
456,0
475,0
m
Standover height
764,0
770,0
776,0
799,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
