Specialized Men's S-Works Stumpjumper 27.5 2018

MTB Enduro
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm

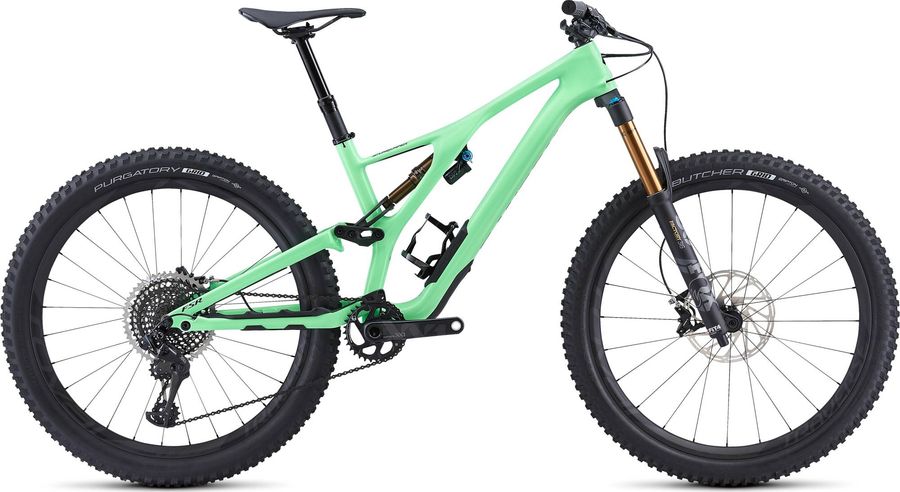

Specialized Men's S-Works Stumpjumper 27.5 2018

About the Specialized Men's S-Works Stumpjumper 27.5 2018

The Specialized Men's S-Works Stumpjumper 27.5 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Specialized Men's S-Works Stumpjumper 27.5 2018 has 5 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Pedals
Specialized Dirt
Components
Steam
Syntace MegaForce 2, 6-degree, 31.8mm clamp
Saddle
Body Geometry Phenom Expert, Adaptive Edge design, hollow titanium rails, carbon fiber base, 143mm
Seatpost
Command Post IRcc, 16-position micro-height adjustable, two-bolt head, bottom mount cable routing, remote SRL lever, 34.9mm, S: 130mm, M/L/XL: 160mm of travel
Handlebar
Specialized Trail, FACT carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm
Brakes
SRAM Guide RSC Hydraulic 377 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Silver
Model
DB-GDE-RSC-B1
Name
Guide RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
377
Drivetrain
Crankset
SRAM XX1 Eagle, Boost™ 148, 170mm crankarm, 24mm spindle, 32T
Shifter
SRAM XX1 Eagle, trigger, 12-speed
Bottom bracket
SRAM GXP
Cassette
SRAM X01 Eagle
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
FACT 11m, full carbon chassis and rear end, asymmetrical design, 27.5 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Rear suspension
Fox Float DPX2 Factory EVOL
Front suspension
Fox 34 Float Factory Kashima
Wheels
Tires
Butcher, GRID Casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.6"

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
410,0
455,0
505,0
b
Seat tube angle
75,3º
75,0º
74,6º
74,2º
c
Top tube length
567,0
592,0
624,0
657,0
d
Head tube length
105,0
110,0
140,0
155,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
112,0
112,0
112,0
112,0
h
Wheelbase
1154,0
1176,0
1209,0
1240,0
i
Chainstay length
429,0
429,0
429,0
429,0
j
Bottom bracket drop
21,0
21,0
21,0
21,0
k
Stack height
589,0
593,0
620,0
634,0
l
Reach
412,0
432,0
452,0
477,0
m
Standover height
736,0
740,0
755,0
771,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
726,0
748,0
780,0
812,0
