Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm

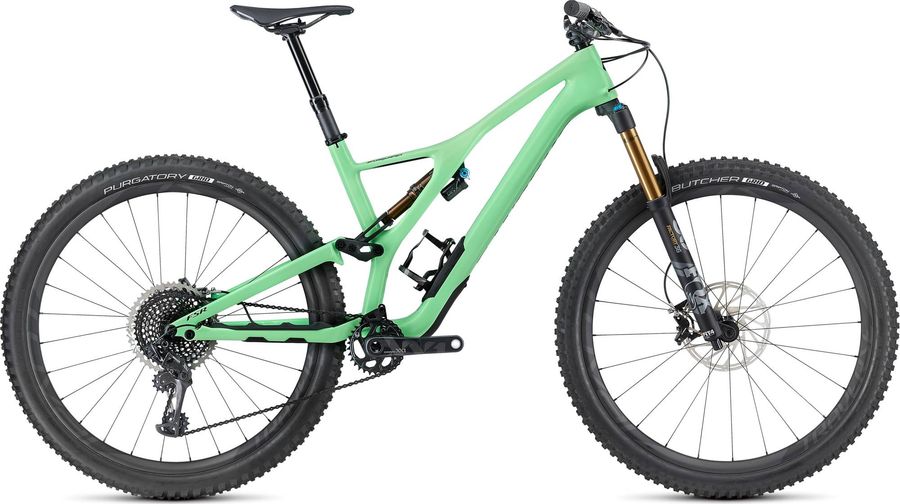

About the Specialized Men's S-Works Stumpjumper 29 2018
The Specialized Men's S-Works Stumpjumper 29 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
|
|---|---|
|
Pedals
|
Specialized Dirt
|
|
Steam
|
Syntace MegaForce 2, 6-degree, 31.8mm clamp
|
|---|---|
|
Saddle
|
Body Geometry Phenom Expert, Adaptive Edge design, hollow titanium rails, carbon fiber base, 143mm
|
|
Seatpost
|
Command Post IRcc, 16-position micro-height adjustable, two-bolt head, bottom mount cable routing, remote SRL lever, 34.9mm, S: 130mm, M/L/XL: 160mm of travel
|
|
Handlebar
|
Specialized Trail, FACT carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm
|
|
Brakes
|
SRAM Guide RSC
Hydraulic
377 g
|
|
|
|
|
Crankset
|
SRAM XX1 Eagle, Boost™ 148, 170mm crankarm, 24mm spindle, 30T
|
|---|---|
|
Shifter
|
SRAM XX1 Eagle, trigger, 12-speed
|
|
Bottom bracket
|
SRAM GXP
|
|
Cassette
|
SRAM XG-1295 X01 Eagle
|
|
Rear derailleur
|
SRAM XX1 Eagle
12s
|
|
|
|
|
Chain
|
SRAM XX1 Eagle
239 g
|
|
|
|
|
Frame
|
FACT 11m, full carbon chassis and rear end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm of travel
|
|---|---|
|
Rear suspension
|
Fox Float DPX2 Factory EVOL
|
|
Front suspension
|
Fox 36 Factory
|
|
Rims
|
Roval Traverse SL 29, hookless carbon, 30mm inner width, 24h/28h, tubeless ready, hand-built
|
|---|---|
|
Tires
|
Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
|
|
Spokes
|
DT Swiss Revolution
|
|
Rear hub
|
Roval Traverse, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
|
|
Front hub
|
Roval Traverse, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 24h
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
410,0
|
455,0
|
505,0
|
|
b
Seat tube angle
|
74,8º
|
74,5º
|
74,1º
|
73,7º
|
|
c
Top tube length
|
569,0
|
592,0
|
625,0
|
659,0
|
|
d
Head tube length
|
95,0
|
95,0
|
125,0
|
140,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
107,0
|
107,0
|
107,0
|
107,0
|
|
h
Wheelbase
|
1146,0
|
1166,0
|
1198,0
|
1229,0
|
|
i
Chainstay length
|
434,0
|
434,0
|
434,0
|
434,0
|
|
j
Bottom bracket drop
|
33,0
|
33,0
|
33,0
|
33,0
|
|
k
Stack height
|
611,0
|
611,0
|
638,0
|
653,0
|
|
l
Reach
|
402,0
|
422,0
|
442,0
|
467,0
|
|
m
Standover height
|
744,0
|
747,0
|
759,0
|
772,0
|
|
x
Bottom bracket height
|
342,0
|
342,0
|
342,0
|
342,0
|
|
y
Front center
|
714,0
|
734,0
|
766,0
|
797,0
|
