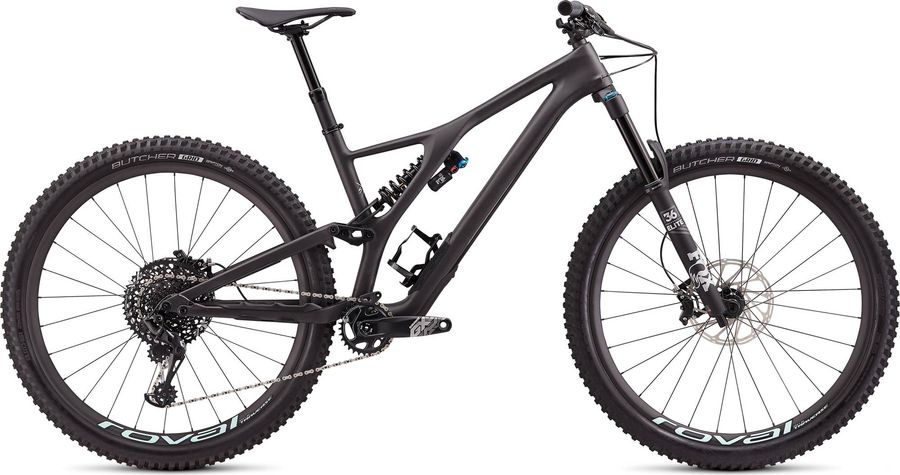

Specialized Men's Stumpjumper EVO Pro 29 2019

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Specialized Men's Stumpjumper EVO Pro 29 2019

About the Specialized Men's Stumpjumper EVO Pro 29 2019

The Specialized Men's Stumpjumper EVO Pro 29 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12).

Specifications

Acessories
Pedals
Specialized Dirt
Components
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Seatpost
Specialized Command Post IRCC
Saddle
Specialized Phenom Expert
Steam
Specialized Trail
Drivetrain
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Shifter
SRAM GX Eagle 11s
Cable length
2200mm
Cable pull ratio
X-actuation
Color
Black
Compatible derailleur hub
RD: 11s
Matchmaker compatible
Yes
Model
SL-GX-1PA-A1
Name
GX-e 11-speed Trigger Shifter
Shifter type
Trigger
Speeds
11
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Bottom bracket
SRAM DUB
Crankset
SRAM GX Eagle 11/12s 621 g
BB compatibility
DUB BSA MTB 100
DUB PF MTB 121
DUB BSA73 SB+
DUB PF92 SB+
DUB BSA73
DUB PF89.5
DUB PF92
DUB PF30 MTB73
DUB BB30 MTB73
DUB:BSA73
PF89.5
PF92
PF30 MTB73
BB30 MTB73
BSA MTB68SP
BB spindle interface
DUB
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 56.5mm, 66.5mm, 76.5mm
Chainring material
Aluminum
Chainring size
30T, 32T, 34T
Crank arm length
165mm, 170mm, 175mm
Model
FC-GX-1-B1
Name
GX Eagle DUB Crankset
Speeds
11/12
Weight based on
DUB 175mm Boost 32t
Weight
621
Frameset
Front suspension
Fox 36 Float Performance Elite
Frame
Specialized FACT 11m carbon
Rear suspension
Fox DHX2 Performance Elite
Wheels
Rims
Roval Traverse Carbon
Tires
Specialized Butcher Grid
Front hub
Specialized selado, 15x110mm, spacing, 28h
Spokes
DT Swiss Industry
Rear hub
DT Swiss 350

Geometry

Size S2 S3
a
Seat tube length
400,0
450,0
b
Seat tube angle
76,0º
75,6º
c
Top tube length
599,0
635,0
d
Head tube length
100,0
105,0
e
Head tube angle
63,5º
63,5º
f
Rake
-
-
g
Trail
-
-
h
Wheelbase
1220,0
1252,0
i
Chainstay length
443,0
443,0
j
Bottom bracket drop
47,0
47,0
k
Stack height
619,0
623,0
l
Reach
445,0
475,0
m
Standover height
743,0
756,0
x
Bottom bracket height
-
-
y
Front center
-
-
