Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm
Price
$5,296.00

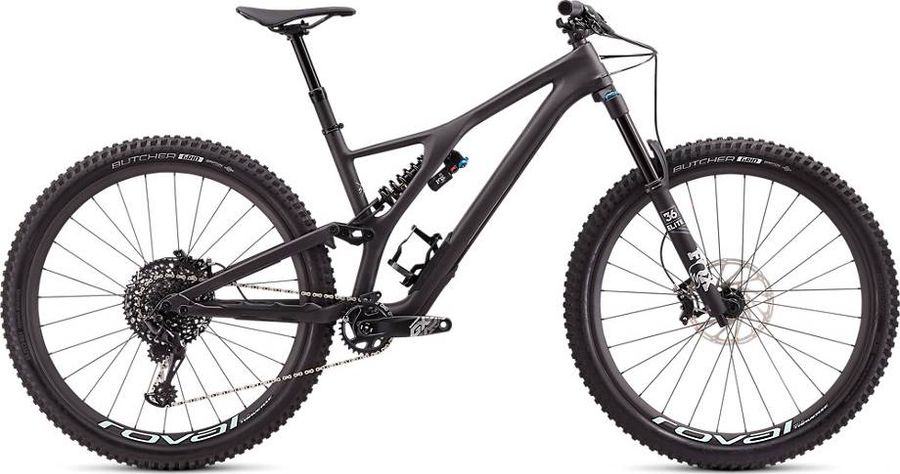

About the Specialized Men's Stumpjumper EVO Pro 29 2020
The Specialized Men's Stumpjumper EVO Pro 29 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Deity, Knuckleduster, Black
|
|---|---|
|
Pedals
|
Specialized Dirt
|
|
Steam
|
Specialized Trail, forged alloy, 4-bolt, 5mm rise, 40mm
|
|---|---|
|
Saddle
|
Body Geometry Phenom Expert, hollow titanium rails, carbon fiber base, 143mm
|
|
Seatpost
|
Command Post IRcc, 16-position micro-height adjustable, two-bolt head, bottom mount cable routing, remote SRL lever, 34.9mm, 160mm of travel
|
|
Handlebar
|
Specialized, 7050 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 800mm width
|
|
Brakes
|
SRAM Code RSC
Hydraulic
|
|
|
|
|
Crankset
|
SRAM GX Eagle, DUB, 170mm, 30T
|
|---|---|
|
Shifter
|
SRAM GX Eagle, trigger, 12-speed
|
|
Bottom bracket
|
SRAM DUB, threaded BB
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Cassette
|
SRAM GX Eagle
|
|
Frame
|
FACT 11m full carbon frame, asymmetrical design, 29 style-specific EVO Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm of travel
|
|---|---|
|
Front suspension
|
Fox 36 Float Performance Elite
|
|
Rear suspension
|
Fox DHX2 Performance Elite
|
|
Rims
|
Roval Traverse Carbon 29, hookless carbon, 30mm inner width, hand-built tubeless ready, 28h
|
|---|---|
|
Tires
|
Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
|
|
Spokes
|
DT Swiss Industry
|
|
Rear hub
|
DT Swiss 350, Star Ratchet, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
|
|
Front hub
|
Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
|
Geometry
| Size | S2 | S3 |
|---|---|---|
|
a
Seat tube length
|
400,0
|
450,0
|
|
b
Seat tube angle
|
76,0º
|
75,6º
|
|
c
Top tube length
|
599,0
|
635,0
|
|
d
Head tube length
|
100,0
|
105,0
|
|
e
Head tube angle
|
63,5º
|
63,5º
|
|
f
Rake
|
44,0
|
44,0
|
|
g
Trail
|
138,0
|
138,0
|
|
h
Wheelbase
|
1220,0
|
1252,0
|
|
i
Chainstay length
|
443,0
|
443,0
|
|
j
Bottom bracket drop
|
47,0
|
47,0
|
|
k
Stack height
|
619,0
|
623,0
|
|
l
Reach
|
445,0
|
475,0
|
|
m
Standover height
|
743,0
|
756,0
|
|
x
Bottom bracket height
|
328,0
|
328,0
|
|
y
Front center
|
781,0
|
813,0
|
