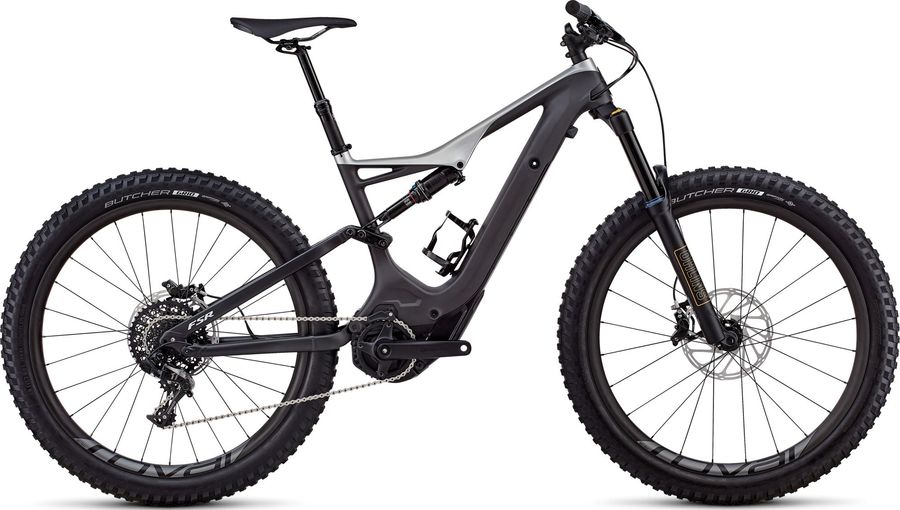

Specialized Men's Turbo Levo FSR Expert Carbon 6Fattie/29 2018

E-Bike
MTB Fatbike
Groupset
SRAM X01
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Specialized Men's Turbo Levo FSR Expert Carbon 6Fattie/29 2018

About the Specialized Men's Turbo Levo FSR Expert Carbon 6Fattie/29 2018

The Specialized Men's Turbo Levo FSR Expert Carbon 6Fattie/29 2018 is a Full suspension Fatbike Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 11 gears (1x11).

Specifications

Acessories
Grip
Specialized Sip Grip
Components
Seatpost
Specialized Command Post IRCC
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Saddle
Specialized Henge Comp
Steam
Specialized Trail
Drivetrain
Cassette
SRAM XG-1175 11s 325 g
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1175-A1
Name
XG-1175 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Weight
325
Rear derailleur
SRAM X01 11s 250 g
Cable pull ratio
X-actuation
Cage
Long, n/a
Cage material
Aluminum, Carbon
Color
Black, Blue, Green, Red
Max tooth
42
Model
RD-X0-1-A2
Name
X01® X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
250
Shifter
SRAM X1
Chain
KMC X11
Frameset
Front suspension
Ohlins RXF 36
Frame
Specialized M5 Alumínio
Rear suspension
RockShox Monarch RT3 215 g
Body eyelet
No Bushing, Shock Block, Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 184x48, 190x51, 194x46, 197x48, 197x51, 197x54, 197x57, 200x51, 200x57, 216x63
Lockout force
219, 320, 380
Model
RS-MNR-RT3-D1
Name
Monarch RT3
Rebound tune
H, L, M
Shaft eyelet
Standard, Trek Mount
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
Roval Traverse Carbon
Tires
Specialized Butcher Grid
Front hub
Specialized selado, 15x110mm, spacing, 24h
Rear hub
Specialized selado, 12x148mm, thru-axle, 28h

Geometry

Size S M L XL
a
Seat tube length
396,0
435,0
468,0
520,0
b
Seat tube angle
74,2º
73,9º
73,6º
73,3º
c
Top tube length
554,0
581,0
611,0
644,0
d
Head tube length
95,0
100,0
130,0
150,0
e
Head tube angle
66,1º
66,1º
66,1º
66,1º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1157,0
1185,0
1215,0
1250,0
i
Chainstay length
459,0
459,0
459,0
459,0
j
Bottom bracket drop
18,0
18,0
18,0
18,0
k
Stack height
598,0
603,0
630,0
649,0
l
Reach
386,0
411,0
430,0
456,0
m
Standover height
753,0
762,0
772,0
780,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
