Specialized P.3 2017
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Front travel
100mm

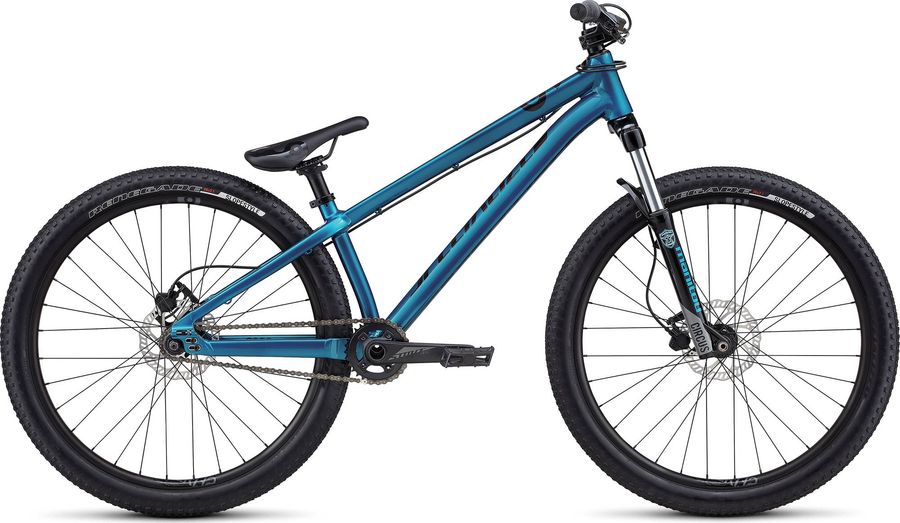

About the Specialized P.3 2017
The Specialized P.3 2017 is a Hardtail Mountain Bike with a alloy frame. Its features include hydraulic disc brakes e tapered head tube.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Specialized P.Grip, lock-on
|
|---|---|
|
Pedals
|
Specialized Dirt Pedal, nylon body w/ molded pins, DU bushing
|
|
Steam
|
Forged Alloy, 31.8mm clamp, 40mm
|
|---|---|
|
Brakes
|
Tektro, hydraulic disc, organic pads
|
|
Saddle
|
P.Series Dirt, steel rails
|
|
Seatpost
|
Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm
|
|
Handlebar
|
Specialized P.Series MTB Dirt, 6061 alloy, 9-degree backsweep, 6-degree upsweep, 38mm rise, 750mm width, 31.8mm
|
|
Chain
|
KMC Z610H, single-speed, 1/2""x3/32""
|
|---|---|
|
Crankset
|
Stout DJ Expert cranks, 30mm Cr-Mo spindle, 170mm, 30T
|
|
Bottom bracket
|
BB30, sealed cartridge bearings
|
|
Frame
|
Specialized A1 Premium Aluminum, fully-butted tubing, tapered head tube, BB30 forged BB shell, integrated ISCG 05 tabs, forged horizontal dropouts, integrated chain tensioners
|
|---|---|
|
Front suspension
|
Manitou Circus Sport
|
|
Rims
|
P.26, alloy, double-wall, triple void, 32mm inner width, 32h
|
|---|---|
|
Tires
|
Renegade Slopestyle, 26x2.1"", 60TPI, wire bead
|
|
Spokes
|
Stainless, 14g, black
|
|
Rear hub
|
P. Series Dirt Jump, alloy disc hub, sealed cartridge bearings, single speed w/ 14t 3/32"" cog, 10mm Cr-Mo axle, 32h
|
|
Front hub
|
Specialized disc, alloy, sealed cartridge bearings,15x100mm thru-axle, 32h
|
Geometry
| Size | 22.5" |
|---|---|
|
a
Seat tube length
|
304,0
|
|
b
Seat tube angle
|
74,0º
|
|
c
Top tube length
|
576,0
|
|
d
Head tube length
|
128,0
|
|
e
Head tube angle
|
70,5º
|
|
f
Rake
|
40,0
|
|
g
Trail
|
77,0
|
|
h
Wheelbase
|
1035,0
|
|
i
Chainstay length
|
389,0
|
|
j
Bottom bracket drop
|
7,0
|
|
k
Stack height
|
552,0
|
|
l
Reach
|
419,0
|
|
m
Standover height
|
344,0
|
|
x
Bottom bracket height
|
331,0
|
|
y
Front center
|
646,0
|
