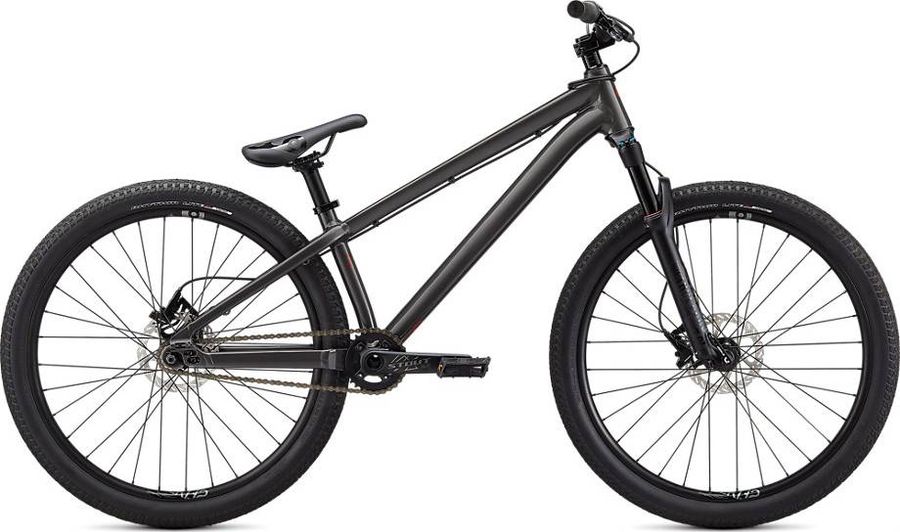

Specialized P.3 2020

Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Front travel
100mm
Price
$2,000.00
Specialized P.3 2020

About the Specialized P.3 2020

The Specialized P.3 2020 is a Hardtail Mountain Bike with a alloy frame. Its features include hydraulic disc brakes e tapered head tube.

Features

The Specialized P.3 2020 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Specialized P.Grip, lock-on
Components
Steam
Specialized P.Series, 4-bolt, 40mm
Saddle
P.Series Dirt, steel rails
Seatpost
Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm
Handlebar
Specialized P.Series MTB Dirt, 6061 alloy, 9-degree backsweep, 6-degree upsweep, 38mm rise, 750mm width, 31.8mm clamp
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Chain
KMC Z610, single speed, 1/2x3/32"
Crankset
Stout DJ, 30mm Cr-Mo spindle, 170mm, 30T
Cassette
Cr-Mo, 14t
Bottom bracket
PF30, 73mm shell
Frameset
Frame
Specialized A1 Premium Aluminum, fully butted tubing, tapered head tube, PF30 BB shell, integrated ISCG 05 tabs, forged horizontal dropouts, integrated chain tensioners
Front suspension
RockShox Pike DJ Solo Air 1839 g
Color
Diffusion Black, Gloss Black
fork offset
40mm (26")
Max tire width (mm)
66
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-PIKE-DJ-A3
Name
Pike DJ
Spring
Solo Air
Travel (mm)
100mm, 140mm
Upper tube type
35mm tapered wall aluminum
Weight based on
140mm, Maxle Ultimate
Weight
1839
Wheel size
26"
Wheels
Rims
P.Series 26" disc, 26.4mm internal width, 32h
Tires
Specialized Rhythm Lite Control 26x2.3
Spokes
Stainless, 14g
Rear hub
P.Series Dirt Jump, sealed cartridge bearings, 10mm Cr-Mo axle, 32h
Front hub
P.Series Dirt Jump, sealed cartridge bearings, high-low flange, 15x100mm spacing, 32h

Geometry

Size 22.5"
a
Seat tube length
312,0
b
Seat tube angle
70,0º
c
Top tube length
630,0
d
Head tube length
122,0
e
Head tube angle
69,5º
f
Rake
40,0
g
Trail
83,0
h
Wheelbase
1060,0
i
Chainstay length
382,0
j
Bottom bracket drop
16,0
k
Stack height
575,0
l
Reach
420,0
m
Standover height
335,0
x
Bottom bracket height
322,5
y
Front center
678,0
