Specialized P.3 Pro 2017

Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Front travel
100mm

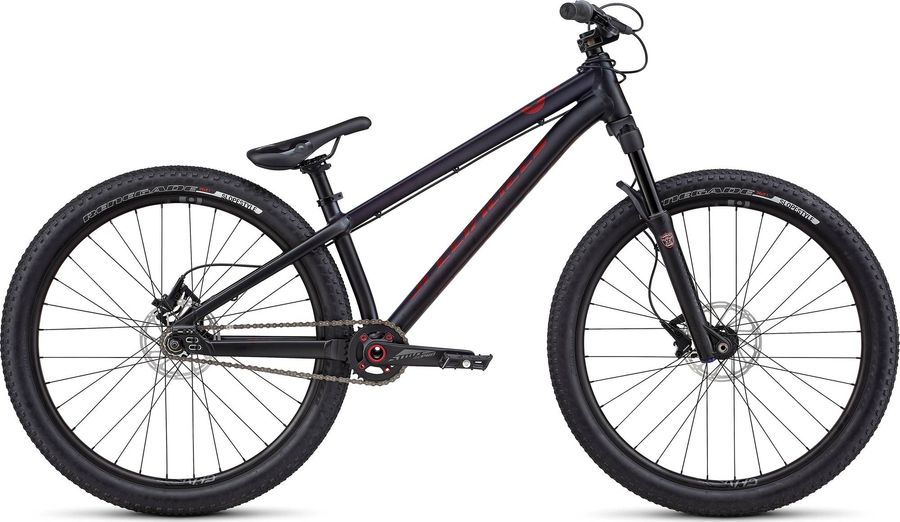

Specialized P.3 Pro 2017

About the Specialized P.3 Pro 2017

The Specialized P.3 Pro 2017 is a Hardtail Mountain Bike with a alloy frame. Its features include hydraulic disc brakes e tapered head tube.

Features

The Specialized P.3 Pro 2017 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Specialized P.Grip, lock-on
Pedals
Specialized Dirt Pedal, nylon body w/ molded pins, DU bushing
Components
Steam
Forged Alloy, 31.8mm clamp, 40mm
Saddle
P.Series Dirt, steel rails
Seatpost
Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm
Handlebar
Specialized P.Series MTB Dirt, 6061 alloy, 9-degree backsweep, 6-degree upsweep, 38mm rise, 750mm width, 31.8mm
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Chain
KMC Z610H, single-speed, 1/2""x3/32""
Crankset
Stout DJ PRO crankset, 30mm alloy spindle, 170mm, 30T
Bottom bracket
BB30, sealed cartridge bearings
Frameset
Frame
Specialized A1 Premium Aluminum, fully-butted tubing, tapered head tube, BB30 forged BB shell, integrated ISCG 05 tabs, forged horizontal dropouts, integrated chain tensioners
Front suspension
Manitou Circus Expert
Wheels
Rims
P.26, alloy, double-wall, triple void, 32mm inner width, 32h
Tires
Renegade Slopestyle, 26x2.1"", 60TPI, wire bead
Spokes
Stainless, 14g, black
Rear hub
P. Series Dirt Jump, alloy disc hub, sealed cartridge bearings, single speed w/ 14t 3/32"" cog, 10mm Cr-Mo axle, 32h
Front hub
Specialized disc, alloy, sealed cartridge bearings,15x100mm thru-axle, 32h

Geometry

Size 22.5"
a
Seat tube length
304,0
b
Seat tube angle
74,0º
c
Top tube length
576,0
d
Head tube length
128,0
e
Head tube angle
70,5º
f
Rake
40,0
g
Trail
77,0
h
Wheelbase
1035,0
i
Chainstay length
389,0
j
Bottom bracket drop
7,0
k
Stack height
552,0
l
Reach
419,0
m
Standover height
344,0
x
Bottom bracket height
331,0
y
Front center
646,0
