Specialized Pitch Expert 1X 2020

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
Price
$875.00

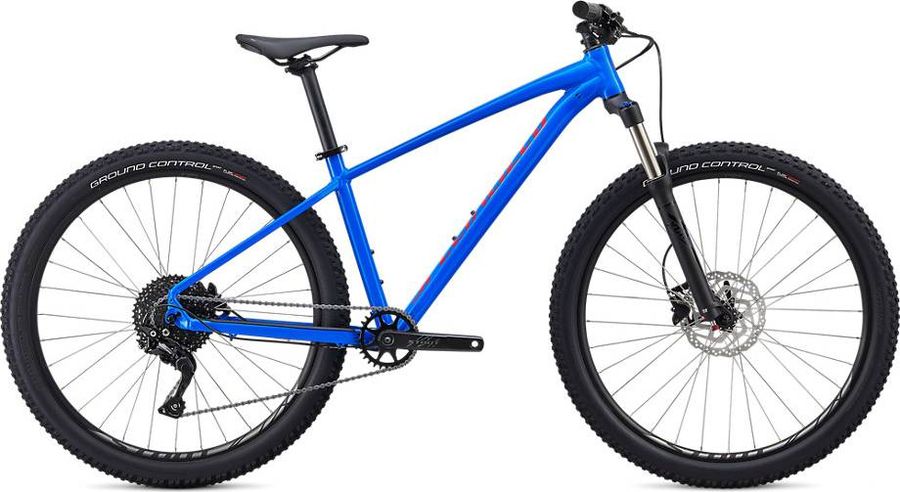

Specialized Pitch Expert 1X 2020

About the Specialized Pitch Expert 1X 2020

The Specialized Pitch Expert 1X 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include internal routing e hydraulic disc brakes.

Features

The Specialized Pitch Expert 1X 2020 has 2 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Specialized MTB Grip, lock-on
Components
Steam
Stout 3D-forged alloy, 31.8mm, 6-degree rise
Seatpost
Alloy, 12mm offset, 2-bolt clamp, 30.9mm
Handlebar
Stout Mini Rise, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Stout 1x, forged alloy, 30T
Shifter
Shimano Deore, RapidFire Plus, 10-speed w/ Optical Gear Display
Bottom bracket
Square-tapered, 73mm, internal bearings
Chain
KMC X10
Cassette
Sunrace MS3 11-42T 10-speed
Rear derailleur
Shimano Deore RD-M6000-SGS SGS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M6000-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Frameset
Frame
A1 Premium Aluminum, Sport Trail 27.5 Geometry, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger
Front suspension
SR Suntour XCR
Wheels
Rims
Stout Trail 27.5, alloy, disc-specific, double-wall, 25mm internal width, 32h
Tires
Ground Control Sport, 60 TPI, wire bead, Flak Jacket Flat protection, 27.5 x 2.3"
Spokes
Stainless, 14g
Rear hub
Shimano FH-TX505, Center Lock™ disc, 9x135mm spacing, quick-release, 32h
Front hub
Shimano, Center Lock™ disc, 9x100mm spacing, quick-release, 32h

Geometry

Size XS SM MD LG XL
a
Seat tube length
310,0
360,0
415,0
450,0
510,0
b
Seat tube angle
74,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
537,0
567,0
594,0
620,0
644,0
d
Head tube length
95,0
95,0
100,0
120,0
135,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
68,5º
f
Rake
42,0
42,0
42,0
42,0
42,0
g
Trail
94,0
94,0
94,0
94,0
94,0
h
Wheelbase
1058,0
1078,0
1107,0
1134,0
1160,0
i
Chainstay length
430,0
430,0
430,0
430,0
430,0
j
Bottom bracket drop
43,0
43,0
43,0
43,0
43,0
k
Stack height
557,0
557,0
580,0
599,0
613,0
l
Reach
375,0
395,0
415,0
435,0
455,0
m
Standover height
655,0
685,0
734,0
761,0
803,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
310,0
y
Front center
631,0
651,0
680,0
708,0
733,0
