Specialized Pitch Sport 650b 2017
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

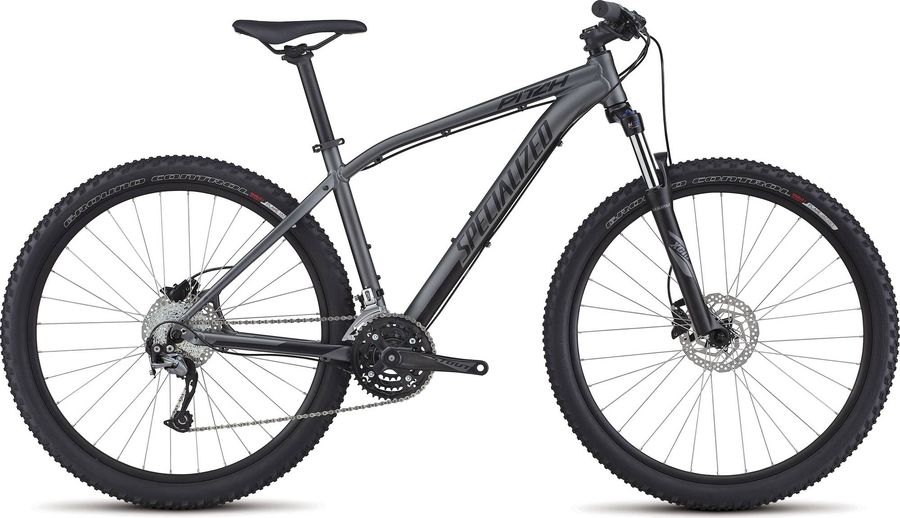

About the Specialized Pitch Sport 650b 2017
The Specialized Pitch Sport 650b 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 24 gears (3x8). Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Specialized MTB Grip, lock-on
|
|---|---|
|
Pedals
|
Specialized Dirt
|
|
Steam
|
Stout 3D-forged alloy, 31.8mm, 6-degree rise
|
|---|---|
|
Saddle
|
Body Geometry mountain, steel rails, 143mm
|
|
Seatpost
|
Alloy, 12mm offset, 2-bolt clamp, 30.9mm
|
|
Handlebar
|
Stout bar, 15mm rise, 9-degree backsweep, 5-degree upsweep, 720mm width, 31.8mm
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
Stout, forged alloy construction, 44/32/22T
|
|---|---|
|
Shifter
|
Shimano Altus, 8-speed
|
|
Bottom bracket
|
Square taper, 73mm, internal bearings
|
|
Rear derailleur
|
Shimano Alivio, Shadow design, SGS cage
|
|
Front derailleur
|
Shimano Altus, 34.9mm clamp, down-swing
|
|
Chain
|
KMC X8
|
|
Cassette
|
Sunrace M66 11-34T 8-speed
|
|
Frame
|
Specialized A1 Premium Aluminum, Sport Trail 650b Geometry, butted tube sets, externally relieved head tube, forged dropouts, reinforced disc mount, replaceable alloy derailleur hanger
|
|---|---|
|
Front suspension
|
SR Suntour XCM
|
|
Rims
|
Stout 650b, alloy, disc only, double-wall, 25mm inner width, 32h
|
|---|---|
|
Tires
|
Ground Control Sport, 650bx2.1"", 60TPI, wire bead, Flak Jacket protection
|
|
Spokes
|
Stainless, 14g
|
|
Rear hub
|
Shimano Center Lock, disc, 10x135mm QR, 32h
|
|
Front hub
|
Shimano Center Lock, disc, 9x100mm QR, 32h
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
330,0
|
394,0
|
444,0
|
460,0
|
510,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
534,0
|
555,0
|
585,0
|
604,0
|
630,0
|
|
d
Head tube length
|
100,0
|
100,0
|
100,0
|
100,0
|
120,0
|
|
e
Head tube angle
|
70,5º
|
70,5º
|
70,5º
|
70,5º
|
70,5º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
79,0
|
79,0
|
79,0
|
79,0
|
79,0
|
|
h
Wheelbase
|
1023,0
|
1044,0
|
1063,0
|
1082,0
|
1108,0
|
|
i
Chainstay length
|
423,0
|
423,0
|
423,0
|
423,0
|
423,0
|
|
j
Bottom bracket drop
|
48,0
|
48,0
|
48,0
|
48,0
|
48,0
|
|
k
Stack height
|
578,0
|
578,0
|
578,0
|
578,0
|
597,0
|
|
l
Reach
|
368,0
|
389,0
|
408,0
|
427,0
|
447,0
|
|
m
Standover height
|
692,0
|
731,0
|
778,0
|
790,0
|
833,0
|
|
x
Bottom bracket height
|
301,0
|
301,0
|
301,0
|
301,0
|
301,0
|
|
y
Front center
|
605,0
|
626,0
|
645,0
|
664,0
|
690,0
|
