Specialized S-Works Demo 8 2017

MTB Downhill
Groupset
SRAM X01
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
200mm
Rear travel
200mm

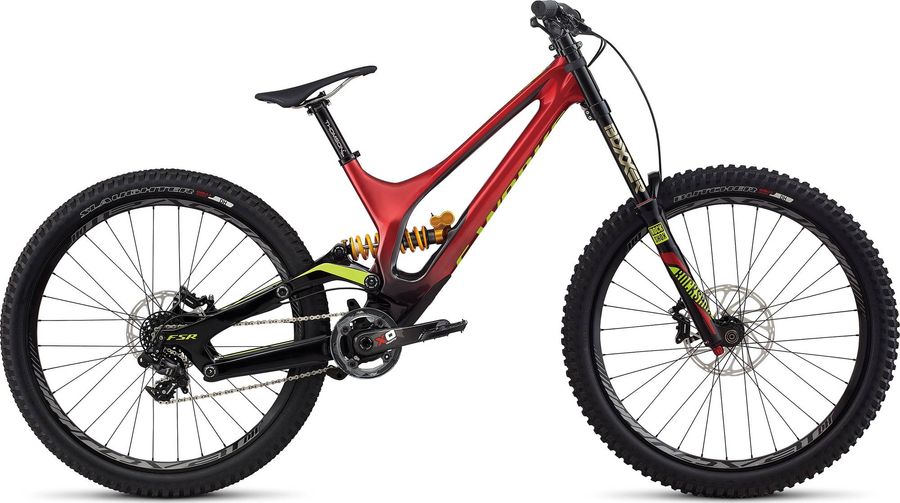

Specialized S-Works Demo 8 2017

About the Specialized S-Works Demo 8 2017

The Specialized S-Works Demo 8 2017 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 7 gears (1x7). Its features include internal routing e hydraulic disc brakes.

Features

The Specialized S-Works Demo 8 2017 has 2 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Pedals
Specialized Boomslang, 6061 alloy, sealed cartridge bearings
Components
Steam
Specialized P.Series MTB, forged alloy, 4-bolt, 45mm
Saddle
Phenom Expert, Adaptive Edge design, hollow titanium rails, 143mm
Seatpost
Thomson, alloy, straight, 12-degree clamp
Handlebar
Specialized DH, FACT carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
SRAM X0 DH, BB30, carbon arms, triple base w/Gamut bashguard 165mm, SRAM 34T
Shifter
XO DH, 7-speed, trigger
Bottom bracket
SRAM BB30, 83mm
Cassette
SRAM X01 DH
Chain
SRAM PC-1130 259 g
Chain connector
PowerLock
Chain length links
114 links, 120 links
Color inner link
Grey
Color outer link
Silver
Compat speed
11s
Inner link finish
Polished
Model
CN-1130-A1
Name
PC-1130 Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Rear derailleur
SRAM X01 DH 10s, 7s
Cable pull ratio
Exact actuation
Cage
Medium, Short
Cage material
Aluminum
Color
Black, Red
Max tooth
26, 28
Model
RD-X0-1DH-A2
Name
X01 DH X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
10s, 7s
Frameset
Frame
FACT 11m, S3 Geometry, carbon front triangle, full carbon link and rear end, FACT IS construction, BB30, full internal cable routing, 135mm dropouts, lipped and sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
Front suspension
RockShox Boxxer Team Coil
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm, 48mm
Maximum rotor size
210mm
Minimum rotor size
160mm, 200mm
Model
FS-BXR-TEAM-A2
Name
BoXXer Team
Spring
Coil
Travel (mm)
200mm
Upper tube type
35mm tapered aluminum
Wheel size
26", 27.5"
Rear suspension
Ohlins TTX
Wheels
Rims
Roval 650b, alloy, 24mm inner width, 32h
Tires
Butcher, DH casing, 650bx2.5"", 60TPI, wire bead
Spokes
DT Swiss Competition, stainless, black 1.8/2.0""
Rear hub
Custom DT Swiss 350, 135mm spacing, SRAM XD driver, 54T ratchet, 12mm thru-axle, 32h
Front hub
Specialized disc, alloy flange & disc mount, sealed cartridge bearings, 20mm thru-axle, 32h

Geometry

Size Short MD Long Long
a
Seat tube length
367,0
367,0
367,0
367,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
572,0
597,0
617,0
637,0
d
Head tube length
105,0
105,0
105,0
105,0
e
Head tube angle
63,5º
63,5º
63,5º
63,5º
f
Rake
52,0
52,0
52,0
52,0
g
Trail
118,0
118,0
118,0
118,0
h
Wheelbase
1184,0
1209,0
1229,0
1249,0
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
12,0
12,0
12,0
12,0
k
Stack height
615,0
615,0
615,0
615,0
l
Reach
396,0
421,0
441,0
461,0
m
Standover height
699,0
699,0
699,0
699,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
754,0
779,0
799,0
819,0
