Groupset
Shimano XTR
Frame material
Carbon
Wheel size
700c
Suspension type
Full suspension
Front travel
170mm
Rear travel
170mm
Price
$9,750.00

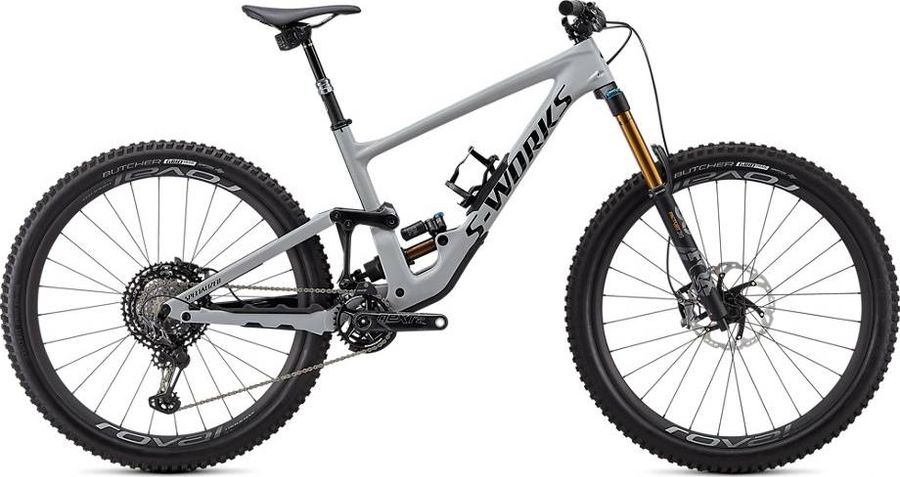

About the Specialized S-Works Enduro 2020
The Specialized S-Works Enduro 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Deity, Knuckleduster, Black
|
|---|
|
Steam
|
Deity Copperhead, 35.0mm
|
|---|---|
|
Saddle
|
Body Geometry Myth 155 S2, Body Geometry Henge 143 S3/S4/S5
|
|
Seatpost
|
RockShox Reverb AXS, 30.9, 1X remote, (S2/S3: 150mm, S4/S5:170mm)
|
|
Handlebar
|
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm, 35.0mm
|
|
Brakes
|
Shimano XTR BR-M9120
385 (BL-M9120) g
Hydraulic disc brake
4 piston
|
|
|
|
|
Crankset
|
Race Face Next R Carbon, 170mm, Steel, 30T
|
|---|---|
|
Shifter
|
Shimano XTR M9100, 12-speed
|
|
Bottom bracket
|
Threaded, 30mm spindle
|
|
Chain
|
Shimano CN-M9100
242 g
|
|
|
|
|
Cassette
|
Shimano XTR CS-M9100-12
12s
HYPERGLIDE+
|
|
10-51T 10-12-14-16-18-21-24-28-33-39-45-51 10-51T: 367g |
|
|
Rear derailleur
|
Shimano XTR RD-M9100-SGS
240 g
SGS
12s
|
|
|
|
|
Frame
|
The new Enduro features a full-carbon frameset, boasting 170mm of suspension travel in an all-new design that increases your control and speed over the roughest sections of trail, yet also boasts exceptional pedaling efficiency. We’ve also given the new Enduro aggressive “long, low and slack” geometry for a more balanced and confident feel at speed. You’ll find a host smart details, including our SWAT™ Door down tube storage integration, a creak-free threaded BB, and painless internal cable routing. Finally, our S-Works frame also sports upper and lower carbon linkage, which shaves an additional 210 grams of the ultra-light frameset.
|
|---|---|
|
Rear suspension
|
Fox Float X2 Factory
|
|
Front suspension
|
Fox 36 Float Factory Kashima
|
|
Rims
|
Roval Traverse SL Carbon 29, hookless carbon, 30mm inner width, hand-built, 2Bliss Ready
|
|---|---|
|
Tires
|
Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
|
|
Spokes
|
DT Competition Race
|
|
Rear hub
|
Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, Shimano Micro Spline driver body, 12mm thru-axle, 148mm spacing, 28h
|
|
Front hub
|
Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 28h
|
Geometry
| Size | S2 | S3 | S4 | S5 |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
420,0
|
440,0
|
465,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
591,0
|
619,0
|
644,0
|
670,0
|
|
d
Head tube length
|
95,0
|
100,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
63,9º
|
63,9º
|
63,9º
|
63,9º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
132,0
|
132,0
|
132,0
|
132,0
|
|
h
Wheelbase
|
1217,0
|
1246,0
|
1274,0
|
1302,0
|
|
i
Chainstay length
|
442,0
|
442,0
|
442,0
|
442,0
|
|
j
Bottom bracket drop
|
28,0
|
28,0
|
28,0
|
28,0
|
|
k
Stack height
|
616,0
|
620,0
|
629,0
|
638,0
|
|
l
Reach
|
437,0
|
464,0
|
487,0
|
511,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
347,0
|
347,0
|
347,0
|
347,0
|
|
y
Front center
|
777,0
|
806,0
|
833,0
|
862,0
|
