Specialized S-Works Enduro 650b 2017

MTB Enduro
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
170mm

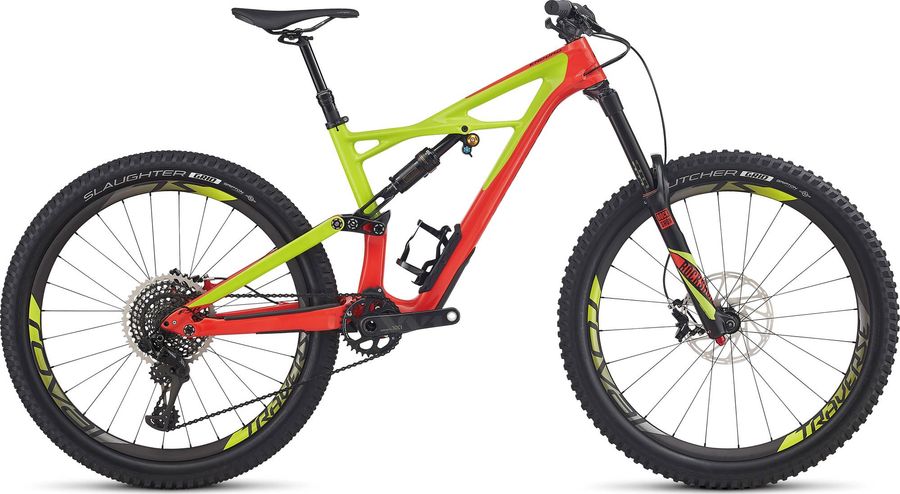

Specialized S-Works Enduro 650b 2017

About the Specialized S-Works Enduro 650b 2017

The Specialized S-Works Enduro 650b 2017 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Specialized S-Works Enduro 650b 2017 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Pedals
Resin Test Ride w/toe clips
Components
Steam
Syntace MegaForce 2, 6-degree, 31.8mm bar clamp
Saddle
Body Geometry Henge Expert, hollow titanium rails, 143mm
Seatpost
Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel
Handlebar
Specialized DH, FACT carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm
Brakes
SRAM Guide RS Hydraulic 384 g
Application
MTB
Blade material
Aluminum - Forged, Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RS-B1
Name
Guide RS
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
384
Drivetrain
Crankset
SRAM XX1 Eagle, carbon, 24mm spindle, 52mm chainline, 32T
Shifter
SRAM XX1 Eagle, 12-speed, trigger
Bottom bracket
SRAM GXP XR, 73mm
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
FACT 11m, X-Wing layout, full carbon chassis and rear end, All-Mountain Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, ManFu link, oversized pivot bearings, 12x148mm dropouts, replaceable derailleur hanger, 170mm of travel
Front suspension
RockShox Lyrik RCT3 Dual Position Air, Solo Air 2005 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
42mm (27.5"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-LYRK-RCT3-A1
Name
Lyrik RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27/29 Solo Air, RCT3, 180mm travel
Weight
2005
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+
Rear suspension
Ohlins STX
Wheels
Rims
Roval Traverse SL 650, hookless carbon, 30mm inner width, 24/28h, tubeless ready
Tires
Butcher, GRID casing, 650x2.6"", 60TPI, Aramid folding bead, 2Bliss Ready
Spokes
DT Swiss Revolution
Rear hub
Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Front hub
Roval Traverse, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 24h

Geometry

Size SM MD LG XL
a
Seat tube length
396,0
430,0
467,0
521,0
b
Seat tube angle
76,5º
76,0º
76,0º
75,0º
c
Top tube length
547,0
572,0
600,0
628,0
d
Head tube length
95,0
100,0
115,0
125,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
106,0
106,0
106,0
106,0
h
Wheelbase
1149,0
1171,0
1197,0
1221,0
i
Chainstay length
421,0
421,0
421,0
421,0
j
Bottom bracket drop
10,5
10,5
10,5
10,5
k
Stack height
581,0
586,0
600,0
609,0
l
Reach
406,0
426,0
446,0
466,0
m
Standover height
757,0
767,0
778,0
792,0
x
Bottom bracket height
350,0
350,0
350,0
350,0
y
Front center
728,0
750,0
776,0
801,0
