Specialized S-Works Epic Hardtail 2022

MTB Cross Country
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

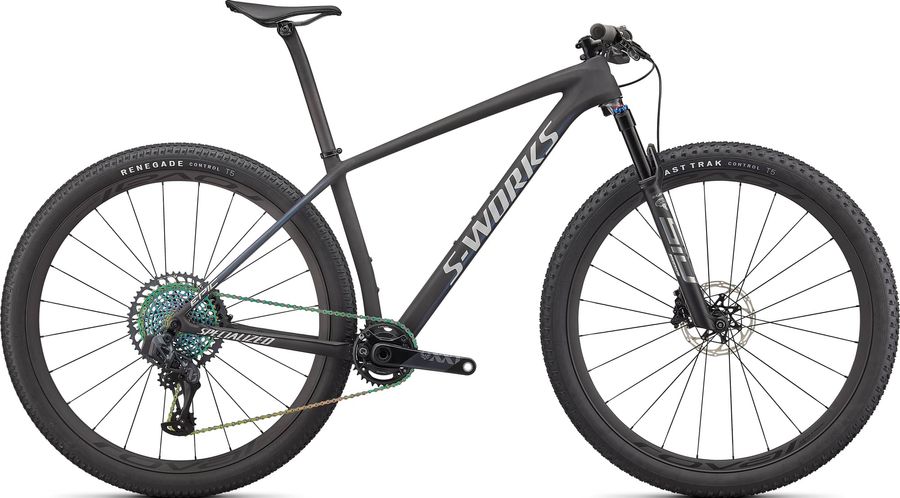

Specialized S-Works Epic Hardtail 2022

About the Specialized S-Works Epic Hardtail 2022

The Specialized S-Works Epic Hardtail 2022 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148.

Features

The Specialized S-Works Epic Hardtail 2022 has 6 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
S-Works SL, alloy, titanium bolts, 6-degree
Saddle
Body Geometry S-Works Power, carbon fiber rails, carbon fiber base
Seatpost
S-Works FACT carbon, 10mm setback, 30.9mm
Handlebar
S-Works Carbon XC Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 760mm, 31.8mm
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
Quarq XX1 Powermeter, DUB, 170/175mm, 34t, 34T
Shifter
SRAM Eagle AXS Rocker Paddle
Bottom bracket
SRAM DUB, BSA 73mm, threaded
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
S-Works FACT 12m, Progressive XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing,
Front suspension
RockShox SID SL Ultimate BRAIN DebonAir
Color
Gloss Black
fork offset
44mm (29")
Max tire width (mm)
60
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-SIDS-BNUL-C1
Name
SID SL Ultimate BRAIN
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
29"
Wheels
Rims
Roval Control SL, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 24h
Tires
Front: Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35, Rear: Specialized Renegade, Control Casing, T5 Compound, 29x2.35
Spokes
DT Swiss Aerolite
Rear hub
Roval Control SL, DT Swiss 180 Internals, DT Swiss Ratchet EXP, Ceramic bearings, 12mm thru-axle, 148mm spacing, 24h straight-pull t-head
Front hub
Roval Control SL, DT Swiss Internals, Ceramic Bearings, 6-bolt, 15mm thru-axle, 110mm spacing, Torque caps, 24h straight pull t-head

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
430,0
470,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
579,0
604,0
633,0
662,0
d
Head tube length
95,0
95,0
110,0
125,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
101,0
101,0
101,0
101,0
h
Wheelbase
1092,0
1117,0
1148,0
1178,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
63,0
63,0
63,0
63,0
k
Stack height
608,0
608,0
622,0
636,0
l
Reach
405,0
430,0
455,0
480,0
m
Standover height
762,0
792,0
816,0
847,0
x
Bottom bracket height
309,0
309,0
309,0
309,0
y
Front center
670,0
695,0
725,0
755,0
