Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
130mm

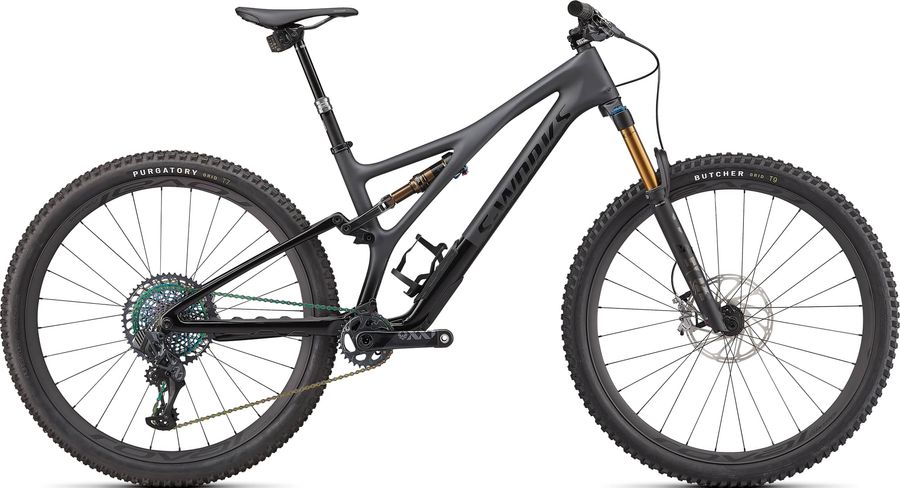

About the Specialized S-Works Stumpjumper 2022
The Specialized S-Works Stumpjumper 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Deity, Knuckleduster, Black
|
|---|
|
Steam
|
Deity, 35.0mm
|
|---|---|
|
Saddle
|
Bridge, 155/143mm, Hollow Ti-rails
|
|
Seatpost
|
RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
|
|
Handlebar
|
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
|
|
Brakes
|
SRAM G2 Ultimate
Hydraulic
238 g
|
|
|
|
|
Crankset
|
SRAM XX1 Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm, Alloy, 30T
|
|---|---|
|
Shifter
|
SRAM Eagle AXS Rocker Paddle
|
|
Bottom bracket
|
SRAM DUB, BSA 73mm, threaded
|
|
Cassette
|
SRAM XG-1299 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM XX1 Eagle AXS
12s
|
|
|
|
|
Chain
|
SRAM XX1 Eagle
239 g
|
|
|
|
|
Frame
|
FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel
|
|---|---|
|
Front suspension
|
Fox 34 Float Factory Kashima
|
|
Rear suspension
|
Fox Float DPS Factory Kashima
|
|
Rims
|
Roval Control 240, hookless carbon, 29mm inner width, hand-built, 2Bliss Ready
|
|---|---|
|
Tires
|
Front: Butcher, GRID casing, GRIPTON® T7 compound, 29x2.3", Rear: Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3"
|
|
Spokes
|
DT Swiss Competition Race
|
|
Rear hub
|
DT Swiss 240, Ratchet EXP, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
|
|
Front hub
|
DT Swiss 240, sealed cartridge bearings, 15x110mm spacing, 28h
|
Geometry
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
|
a
Seat tube length
|
385,0
|
385,0
|
405,0
|
425,0
|
445,0
|
465,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
565,0
|
585,0
|
607,0
|
634,0
|
662,0
|
694,0
|
|
d
Head tube length
|
95,0
|
100,0
|
110,0
|
120,0
|
130,0
|
140,0
|
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
126,0
|
126,0
|
126,0
|
126,0
|
126,0
|
126,0
|
|
h
Wheelbase
|
1154,0
|
1177,0
|
1202,0
|
1230,0
|
1270,0
|
1304,0
|
|
i
Chainstay length
|
434,0
|
434,0
|
434,0
|
434,0
|
444,0
|
444,0
|
|
j
Bottom bracket drop
|
47,0
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
|
k
Stack height
|
616,0
|
615,0
|
624,0
|
634,0
|
643,0
|
652,0
|
|
l
Reach
|
412,0
|
432,0
|
452,0
|
477,0
|
502,0
|
532,0
|
|
m
Standover height
|
732,0
|
736,0
|
746,0
|
751,0
|
759,0
|
759,0
|
|
x
Bottom bracket height
|
328,0
|
333,0
|
333,0
|
333,0
|
333,0
|
333,0
|
|
y
Front center
|
724,0
|
746,0
|
770,0
|
800,0
|
829,0
|
863,0
|
