Specialized S-Works Stumpjumper 6Fattie 2018

MTB Trail
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension

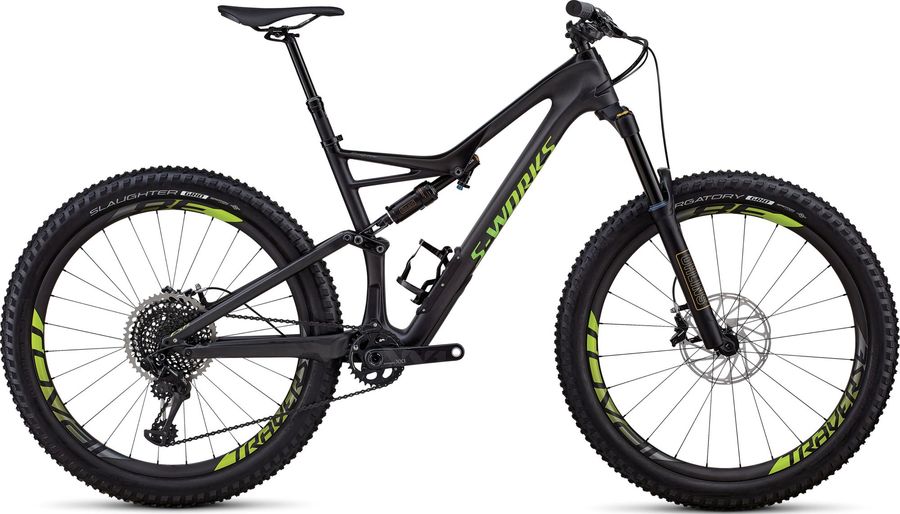

Specialized S-Works Stumpjumper 6Fattie 2018

About the Specialized S-Works Stumpjumper 6Fattie 2018

The Specialized S-Works Stumpjumper 6Fattie 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12).

Specifications

Acessories
Grip
Specialized Sip Grip
Pedals
Specialized Plataforma 9/16"
Components
Seatpost
Specialized Command Post IRCC
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Cassette
SRAM XG-1295 X01 Eagle
Crankset
SRAM XX1 Eagle 11/12s
BB compatibility
BB30/PF30-68/73mm
BB30A
GXP 100mm/PF GXP 121mm
GXP/PF GXP 68/73mm
BB spindle interface
24mm, 30mm
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 66.5mm, 76.5mm
Chainring material
Aluminum
Chainring size
30T, 32T, 34T, 36T, 38T
Crank arm length
165mm, 170mm, 175mm
Model
FC-XX-1-B1
Name
XX1 Eagle™ Crankset
Speeds
11/12
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Shifter
SRAM XX1 EAGLE 12s 122 g
Cable length
2200mm
Cable pull ratio
X-actuation
Color
Black, Gold
Compatible derailleur hub
RD:12s
Matchmaker compatible
Yes
Model
SL-XX-1-B1
Name
XX1 Eagle Trigger Shifter
Shifter type
Trigger
Speeds
12
Weight
122
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Bottom bracket
SRAM PressFit 30
Frameset
Frame
Specialized FACT 11m carbon
Front suspension
Ohlins RXF 36
Rear suspension
Ohlins STX
Wheels
Rims
Roval Traverse Carbon
Rear hub
Roval Traverse SL, 12x148mm, 28h
Spokes
DT Swiss Revolution
Tires
Specialized Purgatory Grid 27.5x3.0"

Geometry

Size S M L XL
a
Seat tube length
396,0
430,0
468,0
523,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
563,0
590,0
616,0
648,0
d
Head tube length
95,0
95,0
125,0
145,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1122,0
1149,0
1179,0
1212,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
618,0
618,0
646,0
664,0
l
Reach
386,0
413,0
431,0
457,0
m
Standover height
754,0
761,0
770,0
777,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
