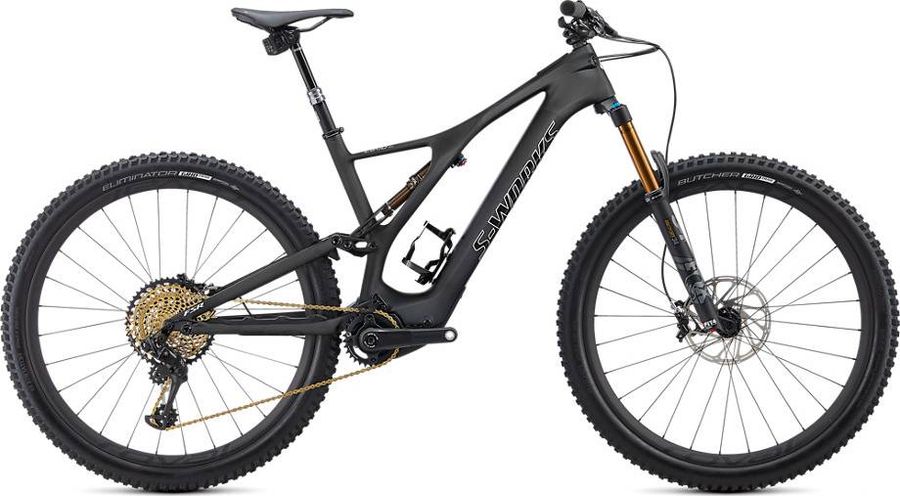

Specialized S-Works Turbo Levo SL 2020
The Specialized S-Works Turbo Levo SL 2020 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm
Price
$13,525.00
About the Specialized S-Works Turbo Levo SL 2020
The Specialized S-Works Turbo Levo SL 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Specialized Trail Grips
|
|---|
|
Steam
|
Syntace MegaForce 2, 6-degree, 31.8mm clamp
|
|---|---|
|
Saddle
|
Bridge, 155/143mm, Hollow Ti-rails
|
|
Battery
|
Specialized SL1-320, fully integrated, 320Wh, also included a Specialized SL1-160, external battery w/Cable, 160Wh
|
|
Charger
|
Custom charger, 48V System w/ SL system charger plug
|
|
Seatpost
|
RockShox Reverb AXS, 30.9mm, S: 125, M:150, L/XL: 170mm
|
|
Handlebar
|
Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm
|
|
Brakes
|
SRAM G2 Ultimate
Hydraulic
238 g
|
|
|
|
|
Crankset
|
Praxis, carbon M30, custom offset, SRAM X-Sync Eagle, 94 BCD, 30T
|
|---|---|
|
Motor
|
Specialized SL 1.1, custom lightweight motor
|
|
Shifter
|
SRAM XX1 Eagle, trigger, 12-speed
|
|
Cassette
|
SRAM XG-1299 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM XX1 Eagle
12s
|
|
|
|
|
Chain
|
SRAM XX1 Eagle
239 g
|
|
|
|
|
Frame
|
FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
|
|---|---|
|
Front suspension
|
Fox 34 Float Factory Kashima
|
|
Rear suspension
|
Fox Float DPS Factory Kashima
|
|
Rims
|
Roval Traverse SL 29, hookless carbon, 30mm inner width, 2Bliss Ready, hand-built, 28h
|
|---|---|
|
Tires
|
Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
|
|
Spokes
|
DT Competition Race
|
|
Rear hub
|
Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
|
|
Front hub
|
Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 28h
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
390,0
|
410,0
|
455,0
|
505,0
|
|
b
Seat tube angle
|
75,3º
|
75,0º
|
74,6º
|
74,2º
|
|
c
Top tube length
|
581,0
|
604,0
|
636,0
|
670,0
|
|
d
Head tube length
|
95,0
|
95,0
|
125,0
|
140,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
111,0
|
111,0
|
111,0
|
111,0
|
|
h
Wheelbase
|
1172,0
|
1192,0
|
1224,0
|
1255,0
|
|
i
Chainstay length
|
444,0
|
444,0
|
444,0
|
444,0
|
|
j
Bottom bracket drop
|
27,0
|
27,0
|
27,0
|
27,0
|
|
k
Stack height
|
613,0
|
613,0
|
640,0
|
654,0
|
|
l
Reach
|
422,0
|
442,0
|
462,0
|
487,0
|
|
m
Standover height
|
794,0
|
797,0
|
814,0
|
821,0
|
|
x
Bottom bracket height
|
348,0
|
348,0
|
348,0
|
348,0
|
|
y
Front center
|
729,0
|
749,0
|
781,0
|
812,0
|
