Specialized Stumpjumper Coil Carbon 29/6Fattie 2019

MTB Trail
Groupset
SRAM GX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension

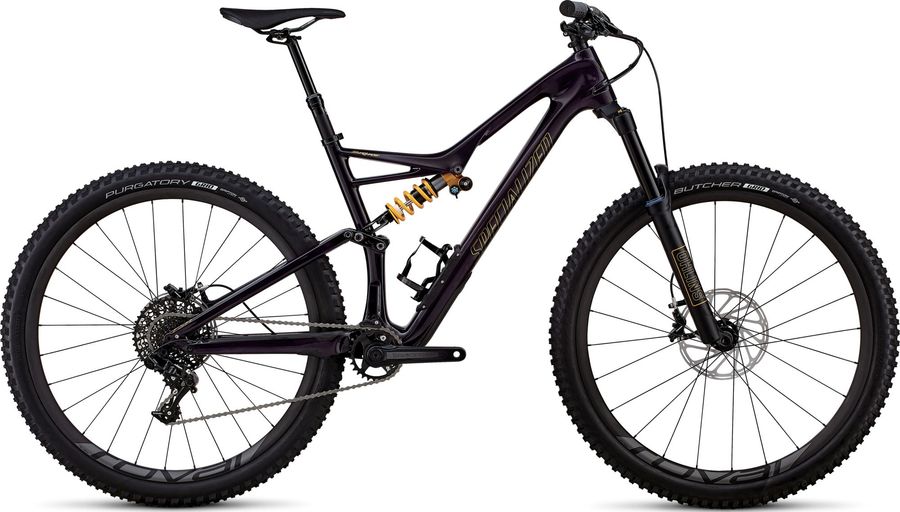

Specialized Stumpjumper Coil Carbon 29/6Fattie 2019

About the Specialized Stumpjumper Coil Carbon 29/6Fattie 2019

The Specialized Stumpjumper Coil Carbon 29/6Fattie 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11).

Specifications

Acessories
Grip
Specialized Sip Grip
Pedals
Specialized Plataforma 9/16"
Components
Seatpost
Specialized Command Post IRCC
Saddle
Specialized Henge Comp
Steam
Specialized Trail
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Shifter
SRAM GX 10, 2s 123 g
Cable length
1900mm, 2200mm
Cable pull ratio
Exact actuation
Color
Black
Compatible derailleur hub
FD: 2s, FD: 2s/RD: 10s, RD: 10s, Set: FD: 2s/RD: 10s
Matchmaker compatible
Yes
Model
SL-GX-A1
Name
GX 2x10 EXACT ACTUATION Trigger Shifters
Shifter type
Trigger
Speeds
10, 2
Weight based on
GX 10s Shifter Rear
Weight
123
Bottom bracket
Race Face PF30
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Crankset
Race Face Aeffect
Rear derailleur
SRAM GX
Frameset
Frame
Specialized FACT 11m carbon
Front suspension
Ohlins RXF 36
Rear suspension
Ohlins TTX RT
Wheels
Rims
Roval Traverse Carbon
Tires
Specialized Butcher Grid
Front hub
Specialized selado, 15x110mm, spacing, 24h
Rear hub
Specialized selado, 12x148mm, thru-axle, 28h
Spokes
DT Swiss Industry

Geometry

Size S M L XL
a
Seat tube length
396,0
430,0
468,0
523,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
563,0
590,0
616,0
648,0
d
Head tube length
125,0
145,0
95,0
95,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1122,0
1149,0
1179,0
1212,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
618,0
618,0
646,0
664,0
l
Reach
386,0
413,0
431,0
457,0
m
Standover height
754,0
761,0
770,0
777,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
