Groupset
Shimano SLX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm

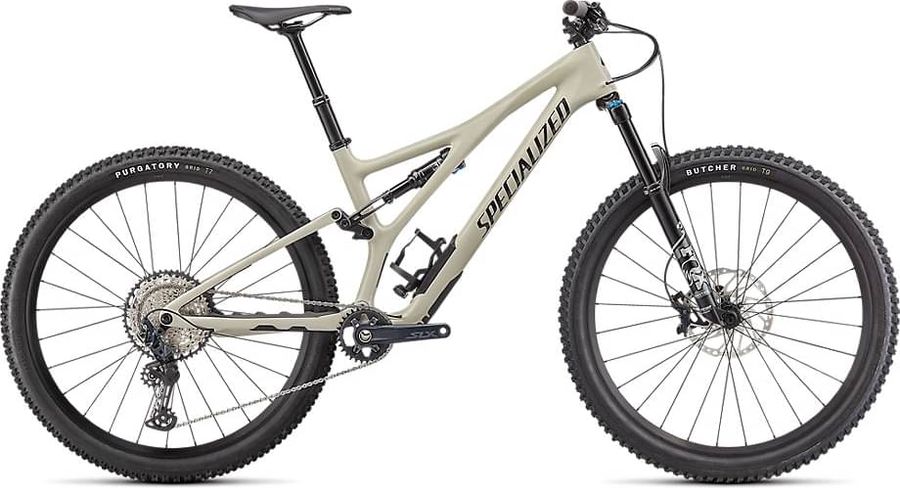

About the Specialized Stumpjumper Comp 2022
The Specialized Stumpjumper Comp 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Alloy Trail Stem, 35mm bar bore
|
|---|---|
|
Saddle
|
Bridge Comp, Hollow Cr-mo rails, 155/143mm
|
|
Seatpost
|
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
|
|
Handlebar
|
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
|
|
Brakes
|
Shimano SLX BR-M7120
444 (BL-M7100) g
Hydraulic disc brake
4 piston
|
|
|
|
|
Crankset
|
Shimano SLX, S1:165mm, S2-S5: 170mm, S6: 175mm, 30T
|
|---|---|
|
Shifter
|
Shimano SLX, M7100, 12spd
|
|
Bottom bracket
|
Shimano, BB-MT800, Threaded
|
|
Cassette
|
Shimano SLX CS-M7100-12
HYPERGLIDE+
|
|
10-51T 10-51T: 534g |
|
|
Rear derailleur
|
Shimano SLX RD-M7100
313 g
SGS
12s
|
|
|
|
|
Chain
|
Shimano CN-M7100
252 g
|
|
|
|
|
Frame
|
FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel
|
|---|---|
|
Front suspension
|
Fox 34 Float Rhythm
|
|
Rear suspension
|
Fox Float DPS Performance
|
|
Rims
|
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
|
|---|---|
|
Tires
|
Front: Butcher, GRID casing, GRIPTON® T7 compound, 29x2.3", Rear: Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3"
|
|
Spokes
|
DT Swiss Industry
|
|
Rear hub
|
Shimano MT510-B, Centerlock 28h, 12x148 Boost, Microspline
|
|
Front hub
|
Shimano MT400-B, Centerlock 28h, 15x110 Boost
|
Geometry
| Size | S1 | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|---|
|
a
Seat tube length
|
385,0
|
385,0
|
405,0
|
425,0
|
445,0
|
465,0
|
|
b
Seat tube angle
|
76,5º
|
76,5º
|
76,5º
|
76,5º
|
76,5º
|
76,5º
|
|
c
Top tube length
|
565,0
|
585,0
|
607,0
|
634,0
|
662,0
|
694,0
|
|
d
Head tube length
|
95,0
|
100,0
|
110,0
|
120,0
|
130,0
|
140,0
|
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
126,0
|
126,0
|
126,0
|
126,0
|
126,0
|
126,0
|
|
h
Wheelbase
|
1154,0
|
1177,0
|
1202,0
|
1230,0
|
1270,0
|
1304,0
|
|
i
Chainstay length
|
434,0
|
434,0
|
434,0
|
434,0
|
444,0
|
444,0
|
|
j
Bottom bracket drop
|
40,0
|
35,0
|
35,0
|
35,0
|
35,0
|
35,0
|
|
k
Stack height
|
616,0
|
615,0
|
624,0
|
634,0
|
643,0
|
652,0
|
|
l
Reach
|
412,0
|
432,0
|
452,0
|
477,0
|
502,0
|
532,0
|
|
m
Standover height
|
732,0
|
736,0
|
746,0
|
751,0
|
759,0
|
759,0
|
|
x
Bottom bracket height
|
335,0
|
340,0
|
340,0
|
340,0
|
340,0
|
340,0
|
|
y
Front center
|
724,0
|
746,0
|
770,0
|
800,0
|
829,0
|
863,0
|
