Specialized Stumpjumper Comp Alloy 27.5 2018

MTB Trail
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension

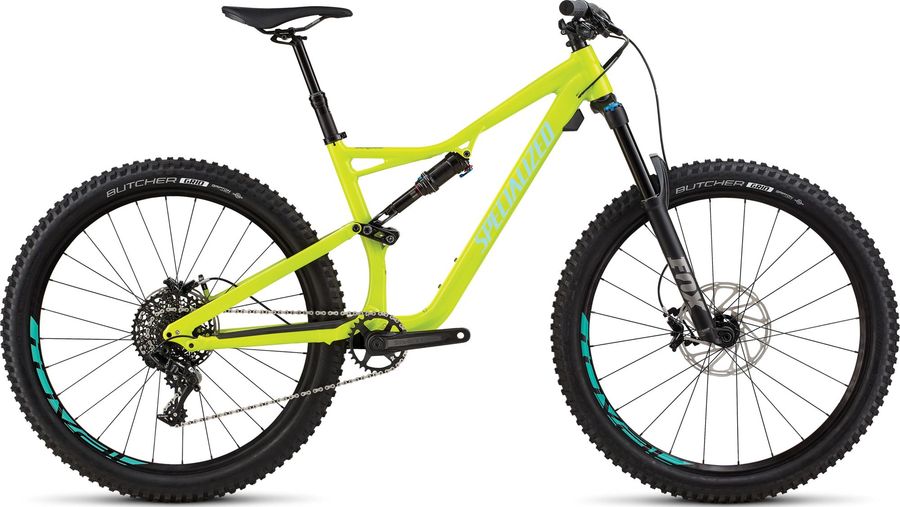

Specialized Stumpjumper Comp Alloy 27.5 2018

About the Specialized Stumpjumper Comp Alloy 27.5 2018

The Specialized Stumpjumper Comp Alloy 27.5 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11).

Specifications

Acessories
Grip
Specialized Sip Grip
Pedals
Specialized Plataforma 9/16"
Components
Seatpost
Specialized Command Post IRCC
Brake lever
Shimano SLX BL-M7000
Saddle
Specialized Henge Comp
Steam
Specialized Trail
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Handlebar
Specialized Alumínio 6061
Drivetrain
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Shifter
SRAM GX 10, 2s 123 g
Cable length
1900mm, 2200mm
Cable pull ratio
Exact actuation
Color
Black
Compatible derailleur hub
FD: 2s, FD: 2s/RD: 10s, RD: 10s, Set: FD: 2s/RD: 10s
Matchmaker compatible
Yes
Model
SL-GX-A1
Name
GX 2x10 EXACT ACTUATION Trigger Shifters
Shifter type
Trigger
Speeds
10, 2
Weight based on
GX 10s Shifter Rear
Weight
123
Bottom bracket
Race Face PF30
Chain
KMC X11
Crankset
Race Face Aeffect
Rear derailleur
SRAM GX
Frameset
Front suspension
Fox 34 Rhythm
Rear suspension
RockShox Monarch R 205 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Model
RS-MNR-R-C3
Name
Monarch R
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
205
Frame
Specialized M5 Alumínio
Wheels
Tires
Specialized Butcher Grid
Front hub
Specialized selado, 15x110mm, spacing, 24h
Rear hub
Specialized selado, 12x148mm, thru-axle, 28h
Rims
Roval Traverse Alumínio
Spokes
DT Swiss Industry

Geometry

Size S M L XL
a
Seat tube length
396,0
430,0
468,0
523,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
553,0
585,0
618,0
646,0
d
Head tube length
95,0
105,0
115,0
125,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1096,0
1126,0
1158,0
1184,0
i
Chainstay length
420,0
420,0
420,0
420,0
j
Bottom bracket drop
18,0
18,0
18,0
18,0
k
Stack height
590,0
599,0
608,0
617,0
l
Reach
388,0
414,0
442,0
464,0
m
Standover height
742,0
748,0
762,0
774,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
