Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm
Price
$4,520.00

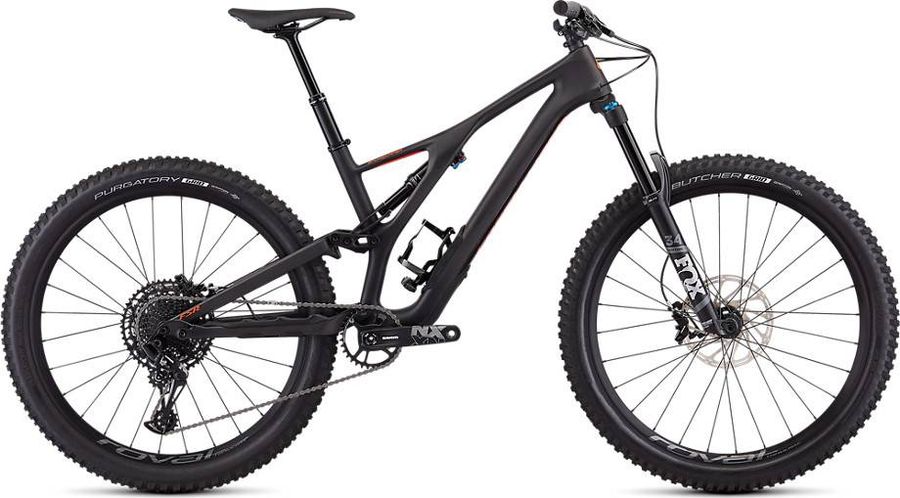

About the Specialized Stumpjumper Comp Carbon 27.5 2020
The Specialized Stumpjumper Comp Carbon 27.5 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Specialized Sip grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
|
|---|
|
Steam
|
Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
|
|---|---|
|
Saddle
|
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
|
|
Seatpost
|
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S: 125mm, M/L: 150mm, XL: 170mm
|
|
Handlebar
|
Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, XS 720mm, S-XL 750mm,
|
|
Brakes
|
SRAM Guide R
Hydraulic
392 g
|
|
|
|
|
Crankset
|
SRAM NX Eagle, DUB, 170mm, Steel, 30T
|
|---|---|
|
Shifter
|
SRAM NX Eagle, trigger, 12-speed
|
|
Bottom bracket
|
SRAM DUB, BSA 73mm, Threaded
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM NX Eagle
|
|
Frame
|
FACT 11m, full carbon chassis and rear-end, asymmetrical design, 27.5 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
|
|---|---|
|
Front suspension
|
Fox 34 Float Rhythm
|
|
Rear suspension
|
Fox Float DPS Performance
|
|
Rims
|
Roval Traverse 27.5, hookless alloy, 30mm inner width, tubeless ready
|
|---|---|
|
Tires
|
Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.6"
|
|
Spokes
|
DT Swiss Industry
|
|
Rear hub
|
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
|
|
Front hub
|
Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
410,0
|
455,0
|
505,0
|
|
b
Seat tube angle
|
75,3º
|
75,0º
|
74,6º
|
74,2º
|
|
c
Top tube length
|
567,0
|
592,0
|
624,0
|
657,0
|
|
d
Head tube length
|
105,0
|
110,0
|
140,0
|
155,0
|
|
e
Head tube angle
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
112,0
|
112,0
|
112,0
|
112,0
|
|
h
Wheelbase
|
1154,0
|
1176,0
|
1209,0
|
1240,0
|
|
i
Chainstay length
|
429,0
|
429,0
|
429,0
|
429,0
|
|
j
Bottom bracket drop
|
21,0
|
21,0
|
21,0
|
21,0
|
|
k
Stack height
|
589,0
|
593,0
|
620,0
|
634,0
|
|
l
Reach
|
412,0
|
432,0
|
452,0
|
477,0
|
|
m
Standover height
|
736,0
|
740,0
|
755,0
|
771,0
|
|
x
Bottom bracket height
|
336,0
|
336,0
|
336,0
|
336,0
|
|
y
Front center
|
726,0
|
748,0
|
780,0
|
812,0
|
