Specialized Stumpjumper EVO Comp Alloy 29 2020

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm
Price
$3,620.00

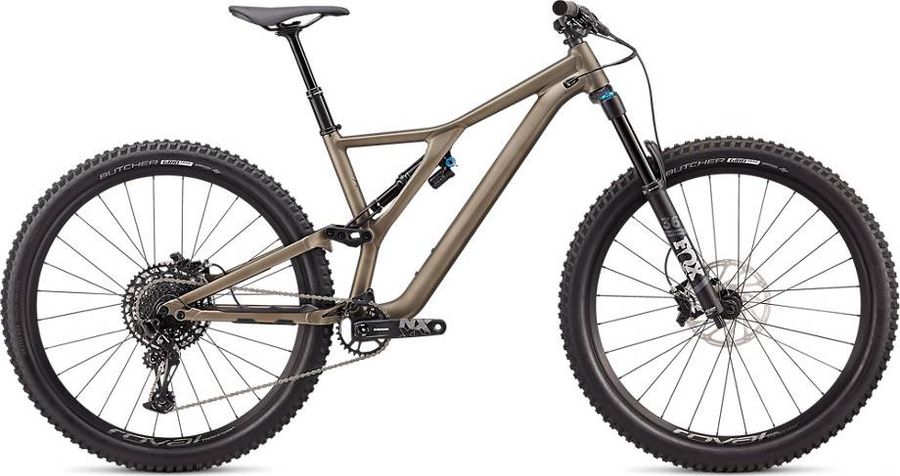

Specialized Stumpjumper EVO Comp Alloy 29 2020

About the Specialized Stumpjumper EVO Comp Alloy 29 2020

The Specialized Stumpjumper EVO Comp Alloy 29 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Specialized Stumpjumper EVO Comp Alloy 29 2020 has 6 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Deity, Knuckleduster, Black
Pedals
Specialized Dirt
Components
Steam
Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
Saddle
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
Seatpost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, 150mm of travel
Handlebar
Specialized, 7050 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 800mm width
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM NX Eagle, DUB, 165mm, 30T, Steel, 30T
Shifter
SRAM NX Eagle, trigger, 12-speed
Bottom bracket
SRAM DUB, threaded BB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM NX Eagle
Frameset
Frame
M5 alloy frame, asymmetrical design, 29 style-specific EVO Trail Geometry, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm of travel
Rear suspension
Fox Float DPX2 Performance
Front suspension
Fox 36 Float Rhythm
Wheels
Rims
Roval Traverse 29, hookless alloy, 30mm inner width, tubeless ready
Tires
Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
Spokes
DT Swiss Industry
Rear hub
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
Front hub
Specialized, sealed cartridge bearings, 15x110mm spacing, 28h

Geometry

Size S2 S3
a
Seat tube length
400,0
450,0
b
Seat tube angle
76,0º
75,6º
c
Top tube length
599,0
635,0
d
Head tube length
100,0
105,0
e
Head tube angle
63,5º
63,5º
f
Rake
44,0
44,0
g
Trail
138,0
138,0
h
Wheelbase
1220,0
1252,0
i
Chainstay length
443,0
443,0
j
Bottom bracket drop
47,0
47,0
k
Stack height
619,0
623,0
l
Reach
445,0
475,0
m
Standover height
754,0
770,0
x
Bottom bracket height
328,0
328,0
y
Front center
781,0
813,0
