Specialized Stumpjumper Expert 6Fattie/29 2018

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension

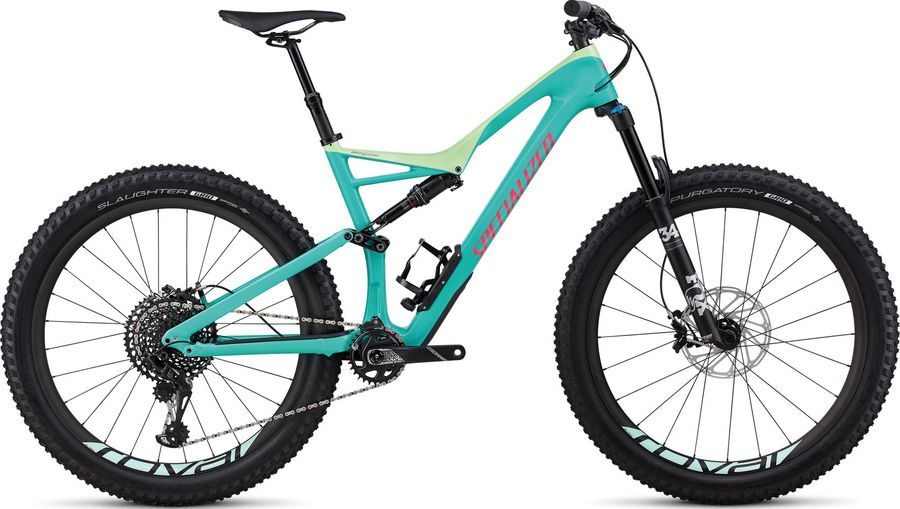

Specialized Stumpjumper Expert 6Fattie/29 2018

About the Specialized Stumpjumper Expert 6Fattie/29 2018

The Specialized Stumpjumper Expert 6Fattie/29 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12).

Specifications

Acessories
Grip
Specialized Sip Grip
Pedals
Specialized Plataforma 9/16"
Components
Seatpost
Specialized Command Post IRCC
Saddle
Specialized Henge Comp
Steam
Specialized Trail
Brake lever
SRAM Guide R
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Shifter
SRAM GX Eagle 11s
Cable length
2200mm
Cable pull ratio
X-actuation
Color
Black
Compatible derailleur hub
RD: 11s
Matchmaker compatible
Yes
Model
SL-GX-1PA-A1
Name
GX-e 11-speed Trigger Shifter
Shifter type
Trigger
Speeds
11
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Specialized M5 Alumínio
Front suspension
Fox 34 Performance
Rear suspension
RockShox Monarch RT3 215 g
Body eyelet
No Bushing, Shock Block, Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 184x48, 190x51, 194x46, 197x48, 197x51, 197x54, 197x57, 200x51, 200x57, 216x63
Lockout force
219, 320, 380
Model
RS-MNR-RT3-D1
Name
Monarch RT3
Rebound tune
H, L, M
Shaft eyelet
Standard, Trek Mount
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
Roval Traverse Carbon
Front hub
Specialized selado, 15x110mm, spacing, 24h
Rear hub
Specialized selado, 12x148mm, thru-axle, 28h
Tires
Specialized Purgatory Grid 27.5x3.0"
Spokes
DT Swiss Industry

Geometry

Size S M L XL
a
Seat tube length
396,0
430,0
468,0
523,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
563,0
590,0
616,0
648,0
d
Head tube length
95,0
95,0
125,0
145,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1122,0
1149,0
1179,0
1212,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
618,0
618,0
646,0
664,0
l
Reach
386,0
413,0
431,0
457,0
m
Standover height
754,0
761,0
770,0
777,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
