Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm

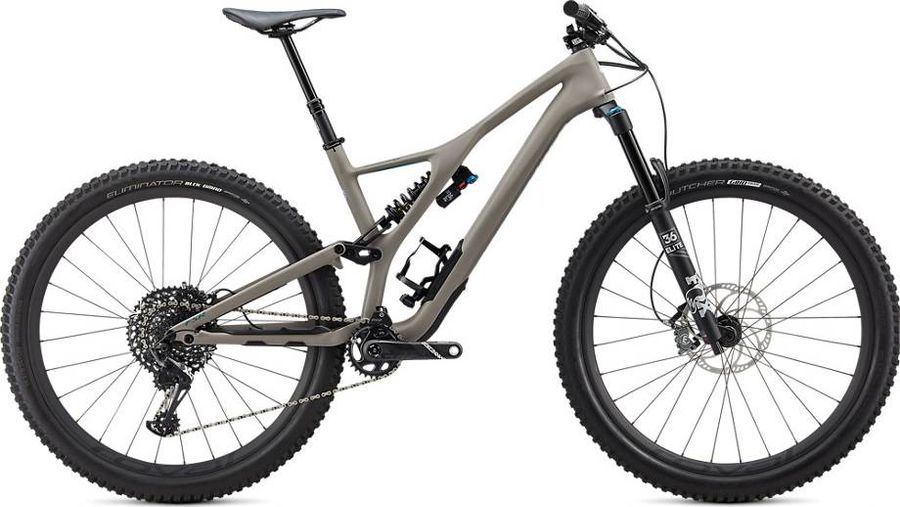

About the Specialized Stumpjumper Pemberton LTD Edition 29 2019
The Specialized Stumpjumper Pemberton LTD Edition 29 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Deity, Knuckleduster, Black
|
|---|---|
|
Pedals
|
Specialized Dirt
|
|
Steam
|
Deity Copperhead, 31.8mm
|
|---|---|
|
Saddle
|
Body Geometry Henge Expert, hollow titanium rails, carbon fiber base, 143mm
|
|
Seatpost
|
RockShox Reverb Stealth, 30.9, 1X remote, (S: 125mm, M: 150mm, L/XL:175mm)
|
|
Handlebar
|
Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm
|
|
Brakes
|
Magura MT7
|
|
Crankset
|
SRAM Descendant Carbon, Boost™ 148, DUB, 170mm crankarm, 30T
|
|---|---|
|
Shifter
|
SRAM X01 Eagle, trigger, 12-speed
|
|
Bottom bracket
|
SRAM DUB, threaded BB
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM GX Eagle
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
FACT 11m, full carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm of travel
|
|---|---|
|
Front suspension
|
Fox 36 Float Performance Elite
|
|
Rear suspension
|
Fox DHX2 Performance Elite
|
|
Rims
|
Roval Traverse Carbon 29, hookless carbon, 30mm inner width, hand-built, 2Bliss Ready
|
|---|---|
|
Tires
|
Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
|
|
Spokes
|
DT Competition Race
|
|
Rear hub
|
DT Swiss 350, Star Ratchet, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
|
|
Front hub
|
DT Swiss 350, sealed cartridge bearings, 15x110mm spacing, 28h
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
410,0
|
455,0
|
505,0
|
|
b
Seat tube angle
|
74,8º
|
74,5º
|
74,1º
|
73,7º
|
|
c
Top tube length
|
569,0
|
592,0
|
625,0
|
659,0
|
|
d
Head tube length
|
95,0
|
95,0
|
125,0
|
140,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
107,0
|
107,0
|
107,0
|
107,0
|
|
h
Wheelbase
|
1146,0
|
1166,0
|
1198,0
|
1229,0
|
|
i
Chainstay length
|
434,0
|
434,0
|
434,0
|
434,0
|
|
j
Bottom bracket drop
|
33,0
|
33,0
|
33,0
|
33,0
|
|
k
Stack height
|
611,0
|
611,0
|
638,0
|
653,0
|
|
l
Reach
|
402,0
|
422,0
|
442,0
|
467,0
|
|
m
Standover height
|
744,0
|
747,0
|
759,0
|
772,0
|
|
x
Bottom bracket height
|
342,0
|
342,0
|
342,0
|
342,0
|
|
y
Front center
|
714,0
|
734,0
|
766,0
|
797,0
|
