Specialized Stumpjumper ST LTD Downieville Carbon 29 2019

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
140mm
Rear travel
120mm

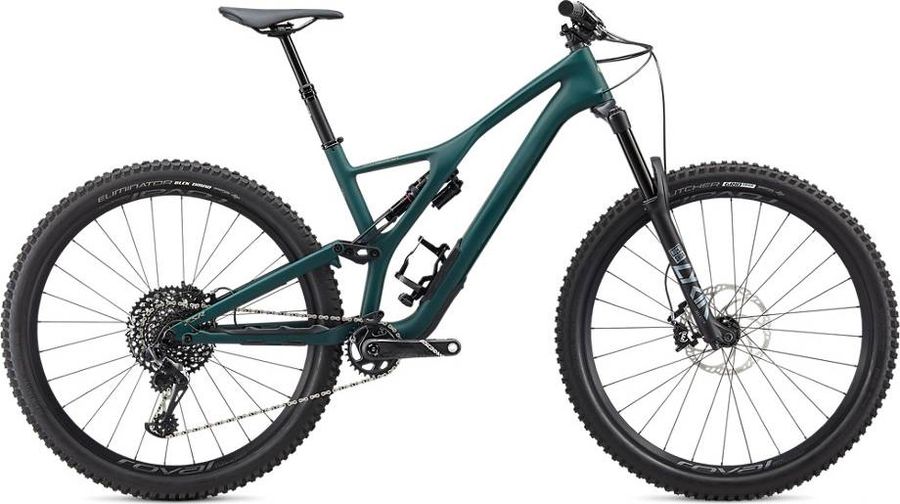

Specialized Stumpjumper ST LTD Downieville Carbon 29 2019

About the Specialized Stumpjumper ST LTD Downieville Carbon 29 2019

The Specialized Stumpjumper ST LTD Downieville Carbon 29 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Specialized Stumpjumper ST LTD Downieville Carbon 29 2019 has 6 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Deity, Knuckleduster, Black
Pedals
Specialized Dirt
Components
Steam
Specialized Trail, forged alloy, 4-bolt, 5mm rise, 40mm
Saddle
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
Seatpost
RockShox Reverb Stealth, 30.9, 1X remote, (S: 125mm, M: 150mm, L/XL:175mm)
Handlebar
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp
Brakes
Magura MT5
Drivetrain
Crankset
SRAM Decsendant Carbon, Boost™ 148, DUB, 170mm crankarm, 30T
Shifter
SRAM X01 Eagle, trigger, 12-speed
Bottom bracket
SRAM DUB, threaded BB
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM GX Eagle
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
FACT 11m, full carbon chassis and rear end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 120mm of travel
Front suspension
RockShox Lyrik Select+ DebonAir 2003 g
Color
Diffusion Black, Gloss Black
Damper type
Charger 2.1 RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SELP-C2
Name
Lyrik Select+
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
2003
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Wheels
Rims
Roval Traverse 29, hookless alloy, 30mm inner width, 2Bliss Ready
Tires
Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
Spokes
DT Competition Race
Rear hub
Roval Traverse, DT Swiss 3-Pawl System, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Front hub
Roval Traverse, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 28h

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
410,0
455,0
505,0
b
Seat tube angle
75,3º
75,0º
74,6º
74,2º
c
Top tube length
567,0
591,0
623,0
657,0
d
Head tube length
95,0
95,0
125,0
140,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
103,0
103,0
103,0
103,0
h
Wheelbase
1142,0
1162,0
1194,0
1224,0
i
Chainstay length
434,0
434,0
434,0
434,0
j
Bottom bracket drop
36,0
36,0
36,0
36,0
k
Stack height
608,0
608,0
635,0
649,0
l
Reach
407,0
427,0
447,0
472,0
m
Standover height
369,0
779,0
369,0
369,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
710,0
730,0
762,0
793,0
