BikeWise

Specialized Turbo Levo 2020

E-Bike
MTB Enduro
Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Rear travel
150mm
Price
$4,975.00

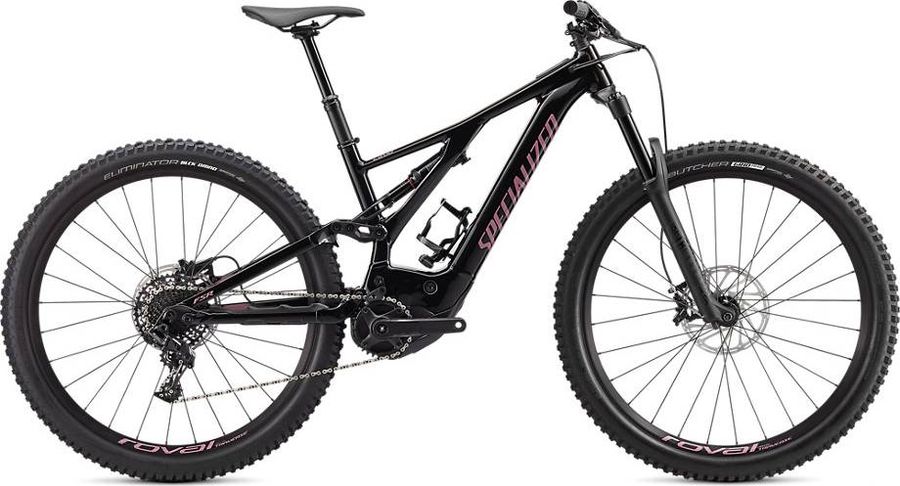

Specialized Turbo Levo 2020

About the Specialized Turbo Levo 2020

The Specialized Turbo Levo 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include internal routing, dropper seatpost, and boost 110 .

Features

The Specialized Turbo Levo 2020 has 6 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Specialized Sip grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Components
Steam
Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
Saddle
Body Geometry Myth 155 S, Body Geometry Henge 143 M/L/XL, steel rails
Battery
Specialized M2-500, integrated battery w/rock guard, 500Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug
Seatpost
TranzX dropper, 34.9mm, XS-S: 100mm, M: 120mm, L/XL: 150mm Travel
Handlebar
Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
Praxis forged M30, custom offset, 32T, custom steel
Motor
Specialized 2.1, custom Rx Trail-tuned motor, 250W nominal
Shifter
SRAM S700, single-click lever
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
KMC X11
Frameset
Front suspension
RockShox 35 29, DebonAir spring, Motion Control damper, 51mm offset, 15x110mm thru-axle
Frame
Specialized M5 Premium Aluminum, 29 Trail Geometry, integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Wheels
Rims
Roval Traverse 29, hookless alloy, 30mm inner width, tubeless ready
Tires
Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
Spokes
DT Swiss Industry
Rear hub
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
Front hub
Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
410,0
455,0
505,0
b
Seat tube angle
75,04º
74,79º
74,48º
74,14º
c
Top tube length
574,0
597,0
628,0
661,0
d
Head tube length
95,0
95,0
125,0
140,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
111,0
111,0
111,0
111,0
h
Wheelbase
1179,0
1199,0
1232,0
1263,0
i
Chainstay length
452,0
452,0
452,0
452,0
j
Bottom bracket drop
27,0
27,0
27,0
27,0
k
Stack height
603,0
603,0
631,0
644,0
l
Reach
412,0
432,0
452,0
477,0
m
Standover height
757,0
757,0
778,0
784,0
x
Bottom bracket height
347,5
347,5
347,5
347,5
y
Front center
729,0
749,0
781,0
812,0
