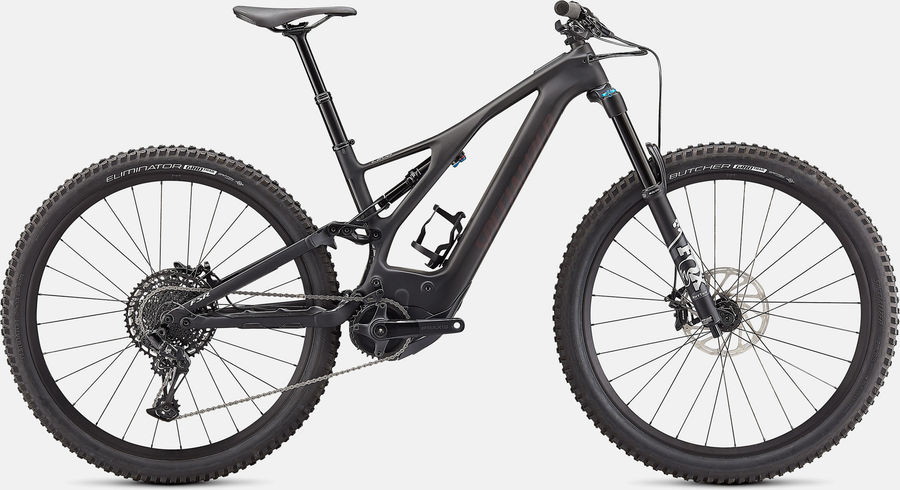

Specialized Turbo Levo Comp Carbon 2021
The Specialized Turbo Levo Comp Carbon 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm
About the Specialized Turbo Levo Comp Carbon 2021
The Specialized Turbo Levo Comp Carbon 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Alloy Trail Stem, 35mm bar bore
|
|---|---|
|
Saddle
|
Bridge Comp, Hollow Cr-mo rails, 155/143mm
|
|
Battery
|
Specialized M2-700, integrated battery w/rock guard, 700Wh
|
|
Charger
|
Custom charger, 42V4A w/ Rosenberger plug
|
|
Seatpost
|
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S: 125mm, M/L: 150mm, XL: 170mm
|
|
Handlebar
|
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm width
|
|
Brakes
|
SRAM Guide RE
Hydraulic
415 g
|
|
|
|
|
Crankset
|
Praxis forged M30, custom offset, SRAM X-Sync Eagle, 104BCD, 32T,steel
|
|---|---|
|
Motor
|
Specialized Turbo Full Power System 2.2 Motor
|
|
Shifter
|
SRAM NX Eagle, single-click lever
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM PG-1230 NX Eagle
|
|
Frame
|
FACT 9m Carbon w/ M5 alloy rear triangle, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, dropper post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
|
|---|---|
|
Front suspension
|
Fox 36 Float Rhythm
|
|
Rear suspension
|
Fox Float DPS Performance
|
|
Rims
|
Roval 29, hookless alloy, 30mm inner width, tubeless ready
|
|---|---|
|
Tires
|
Front: Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.6", Rear: Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
|
|
Spokes
|
DT Swiss Industry
|
|
Rear hub
|
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
|
|
Front hub
|
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
410,0
|
455,0
|
505,0
|
|
b
Seat tube angle
|
75,04º
|
74,79º
|
74,48º
|
74,14º
|
|
c
Top tube length
|
574,0
|
597,0
|
628,0
|
661,0
|
|
d
Head tube length
|
95,0
|
95,0
|
125,0
|
140,0
|
|
e
Head tube angle
|
66,04º
|
66,04º
|
66,04º
|
66,04º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
111,0
|
111,0
|
111,0
|
111,0
|
|
h
Wheelbase
|
1179,0
|
1199,0
|
1232,0
|
1263,0
|
|
i
Chainstay length
|
452,0
|
452,0
|
452,0
|
452,0
|
|
j
Bottom bracket drop
|
27,0
|
27,0
|
27,0
|
27,0
|
|
k
Stack height
|
603,0
|
603,0
|
631,0
|
644,0
|
|
l
Reach
|
412,0
|
432,0
|
452,0
|
477,0
|
|
m
Standover height
|
757,0
|
757,0
|
778,0
|
784,0
|
|
x
Bottom bracket height
|
347,5
|
347,5
|
347,5
|
347,5
|
|
y
Front center
|
729,0
|
749,0
|
781,0
|
812,0
|
