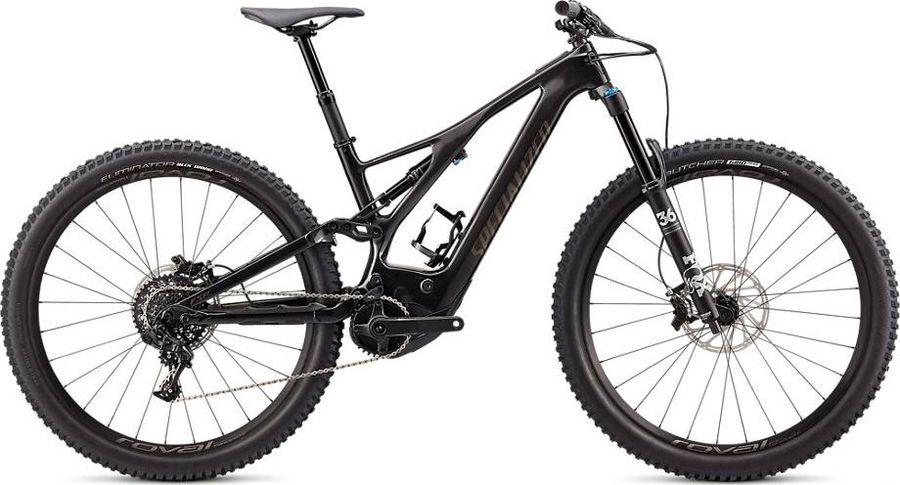

Specialized Turbo Levo Expert Carbon 2020
The Specialized Turbo Levo Expert Carbon 2020 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM X1
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm
Price
$8,275.00
About the Specialized Turbo Levo Expert Carbon 2020
The Specialized Turbo Levo Expert Carbon 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X1 drivetrain of 11 gears (1x11). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Specialized Sip grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
|
|---|
|
Steam
|
Specialized Trail, forged alloy, 4-bolt, 5mm rise, 40mm
|
|---|---|
|
Saddle
|
Bridge 155 S2, Bridge 143 S3/S4/S5, Hollow cr-mo rails
|
|
Battery
|
Specialized M2-700, integrated battery w/rock guard, 700Wh
|
|
Charger
|
Custom charger, 42V4A w/ Rosenberger plug
|
|
Seatpost
|
Command Post IRcc, 16-position micro-height adjustable, two-bolt head, bottom mount cable routing, remote SRL lever, 34.9mm, S: 130mm, M/L/XL: 160mm of travel
|
|
Handlebar
|
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp
|
|
Brakes
|
SRAM Code R
Hydraulic
|
|
|
|
|
Crankset
|
Praxis forged M30, custom offset, 32T, custom steel
|
|---|---|
|
Motor
|
Specialized 2.1, custom Rx Trail-tuned motor, 250W nominal
|
|
Shifter
|
SRAM S700, single-click lever
|
|
Cassette
|
SRAM XG-1175
11s
325 g
|
|
|
|
|
Rear derailleur
|
SRAM X1 X-HORIZON Rear Derailleur
11s
256 g
|
|
|
|
|
Chain
|
KMC X11
|
|
Frame
|
FACT 9m Carbon w/ M5 alloy rear triangle, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
|
|---|---|
|
Front suspension
|
Fox 36 Performance
|
|
Rear suspension
|
Fox Float DPS Performance
|
|
Rims
|
Roval Traverse 29, hookless alloy, 30mm width, hand-built, 2Bliss Ready
|
|---|---|
|
Tires
|
Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
|
|
Spokes
|
DT Swiss Competition Race
|
|
Rear hub
|
DT Swiss 360, 3-pawl design, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
|
|
Front hub
|
Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
410,0
|
455,0
|
505,0
|
|
b
Seat tube angle
|
75,04º
|
74,79º
|
74,48º
|
74,14º
|
|
c
Top tube length
|
574,0
|
597,0
|
628,0
|
661,0
|
|
d
Head tube length
|
95,0
|
95,0
|
125,0
|
140,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
111,0
|
111,0
|
111,0
|
111,0
|
|
h
Wheelbase
|
1179,0
|
1199,0
|
1232,0
|
1263,0
|
|
i
Chainstay length
|
452,0
|
452,0
|
452,0
|
452,0
|
|
j
Bottom bracket drop
|
27,0
|
27,0
|
27,0
|
27,0
|
|
k
Stack height
|
603,0
|
603,0
|
631,0
|
644,0
|
|
l
Reach
|
412,0
|
432,0
|
452,0
|
477,0
|
|
m
Standover height
|
757,0
|
757,0
|
778,0
|
784,0
|
|
x
Bottom bracket height
|
347,5
|
347,5
|
347,5
|
347,5
|
|
y
Front center
|
729,0
|
749,0
|
781,0
|
812,0
|
