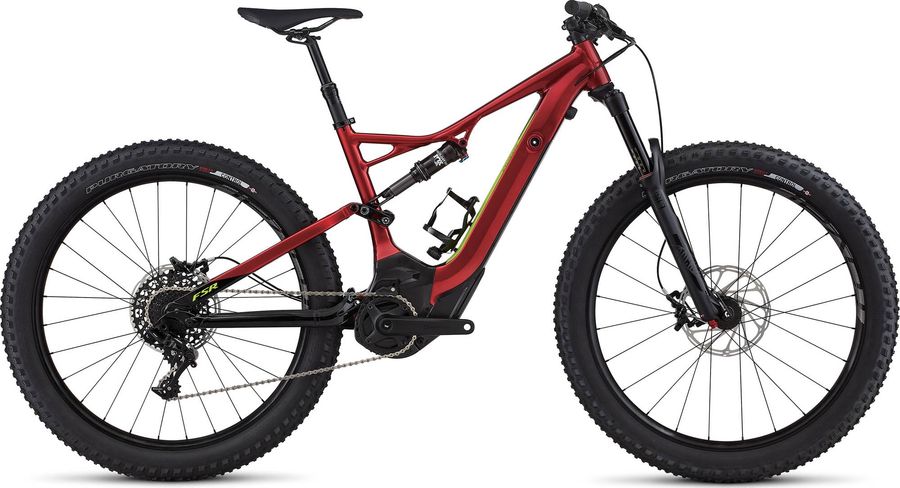

Specialized Turbo Levo FSR Comp 6Fattie 2017
The Specialized Turbo Levo FSR Comp 6Fattie 2017 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm
About the Specialized Turbo Levo FSR Comp 6Fattie 2017
The Specialized Turbo Levo FSR Comp 6Fattie 2017 is a Full suspension Fatbike Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness
|
|---|
|
Steam
|
Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise
|
|---|---|
|
Saddle
|
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
|
|
Battery
|
Custom LEVO battery, 460Wh, 40x3.2Ah, ANT+/Bluetooth connectivity, IP 67
|
|
Charger
|
Custom charger, 42V4A w/Rosenberger plug
|
|
Seatpost
|
Command Post IRcc, 12 position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm travel
|
|
Handlebar
|
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width
|
|
Brakes
|
SRAM Guide R
Hydraulic
392 g
|
|
|
|
|
Crankset
|
Custom alloy crankarms, 32T
|
|---|---|
|
Motor
|
Custom & exclusive for Specialized, Trail tuned, 250 W
|
|
Shifter
|
SRAM GX, 11-speed, trigger
|
|
Rear derailleur
|
SRAM GX 1x11 X-HORIZON Rear Derailleur
11s
265 g
|
|
|
|
|
Cassette
|
SRAM XG-1150
11s
|
|
|
|
|
Chain
|
SRAM PC-X1
|
|
Frame
|
Specialized M5 Premium Aluminum, Trail Geometry, integrated down tube battery, enclosed internal cable and Command Post IR routing, 148mm spacing, fully sealed cartridge bearings, 140mm of travel
|
|---|---|
|
Front suspension
|
RockShox Yari RC
Dual Position Air, Solo Air
2023 g
|
|
|
|
|
Rear suspension
|
Fox Float Performance
|
|
Tires
|
Purgatory, GRID casing, 650bx3.0"", 60TPI, Aramid folding bead, 2Bliss Ready
|
|---|---|
|
Spokes
|
DT Swiss Industry, stainless
|
|
Rear hub
|
Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
|
|
Front hub
|
Specialized disc, alloy, sealed cartridge bearings, 110x15mm thru-axle, 24h
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
396,0
|
435,0
|
468,0
|
520,0
|
|
b
Seat tube angle
|
74,5º
|
74,2º
|
73,9º
|
73,6º
|
|
c
Top tube length
|
551,0
|
581,0
|
611,0
|
646,0
|
|
d
Head tube length
|
95,0
|
100,0
|
130,0
|
150,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
52,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
98,0
|
99,0
|
99,0
|
99,0
|
|
h
Wheelbase
|
1150,0
|
1177,0
|
1208,0
|
1242,0
|
|
i
Chainstay length
|
455,0
|
455,0
|
455,0
|
455,0
|
|
j
Bottom bracket drop
|
21,0
|
21,0
|
21,0
|
21,0
|
|
k
Stack height
|
592,0
|
596,0
|
624,0
|
642,0
|
|
l
Reach
|
385,0
|
411,0
|
430,0
|
456,0
|
|
m
Standover height
|
751,0
|
759,0
|
769,0
|
777,0
|
|
x
Bottom bracket height
|
342,0
|
342,0
|
342,0
|
342,0
|
|
y
Front center
|
696,0
|
723,0
|
754,0
|
788,0
|
