Specialized Turbo Levo Hardtail 2021
The Specialized Turbo Levo Hardtail 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

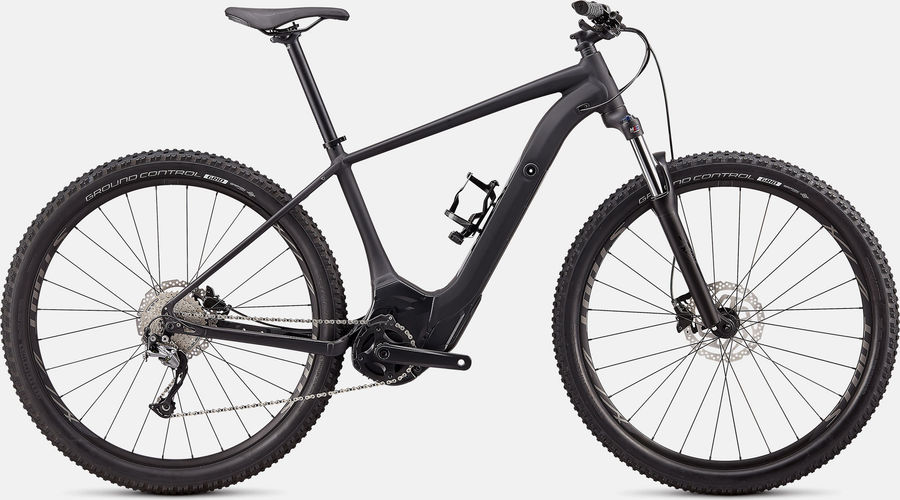

About the Specialized Turbo Levo Hardtail 2021
The Specialized Turbo Levo Hardtail 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain. Its features include internal routing, boost 110 , and boost 148.
Features
Internal routing
More info
Internal routing
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Specialized Body Geometry XC, clamp-on
|
|---|
|
Steam
|
Specialized, 3D-forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp
|
|---|---|
|
Saddle
|
Body Geometry Myth 155 XS, Body Geometry Henge 143 S/M/L/XL, steel rails
|
|
Battery
|
Specialized M1-400, integrated Trail Display, ANT+/Bluetooth® module, 400Wh
|
|
Charger
|
Custom Specialized 42V2A Charger w/ Rosenberger plug, AC power cord included
|
|
Seatpost
|
Specialized 2-bolt head, forged alloy, 8mm offset, micro-adjust, 30.9mm
|
|
Handlebar
|
Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, XS 720mm, S-XL 750mm,
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
Custom alloy forged crankarms
|
|---|---|
|
Motor
|
Specialized 1.2 E, custom Rx Street-tuned motor, 250W nominal
|
|
Shifter
|
Shimano Alivio, 9-speed w/ Optical Gear Display
|
|
Rear derailleur
|
Shimano Acera RD-M3000
|
|
Chain
|
KMC 9v
|
|
Frame
|
Specialized M5 Aluminum, 29 Trail HT Geometry, integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing
|
|---|---|
|
Front suspension
|
SR Suntour XCM 32
|
|
Rims
|
Stout XC 29, 25mm internal width, disc-specific
|
|---|---|
|
Tires
|
Ground Control, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
|
|
Spokes
|
Stainless, 14g
|
|
Rear hub
|
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
|
|
Front hub
|
Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
390,0
|
394,0
|
434,0
|
470,0
|
505,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
575,0
|
581,0
|
615,0
|
640,0
|
662,0
|
|
d
Head tube length
|
100,0
|
110,0
|
100,0
|
115,0
|
130,0
|
|
e
Head tube angle
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
|
f
Rake
|
54,0
|
54,0
|
55,0
|
55,0
|
54,0
|
|
g
Trail
|
100,0
|
100,0
|
99,0
|
99,0
|
100,0
|
|
h
Wheelbase
|
1128,0
|
1147,0
|
1171,0
|
1197,0
|
1220,0
|
|
i
Chainstay length
|
457,0
|
457,0
|
457,0
|
457,0
|
457,0
|
|
j
Bottom bracket drop
|
55,0
|
55,0
|
55,0
|
55,0
|
55,0
|
|
k
Stack height
|
605,0
|
614,0
|
623,0
|
637,0
|
651,0
|
|
l
Reach
|
392,0
|
407,0
|
427,0
|
447,0
|
465,0
|
|
m
Standover height
|
695,0
|
763,0
|
793,0
|
819,0
|
845,0
|
|
x
Bottom bracket height
|
308,0
|
308,0
|
308,0
|
308,0
|
308,0
|
|
y
Front center
|
677,0
|
696,0
|
719,0
|
745,0
|
768,0
|
