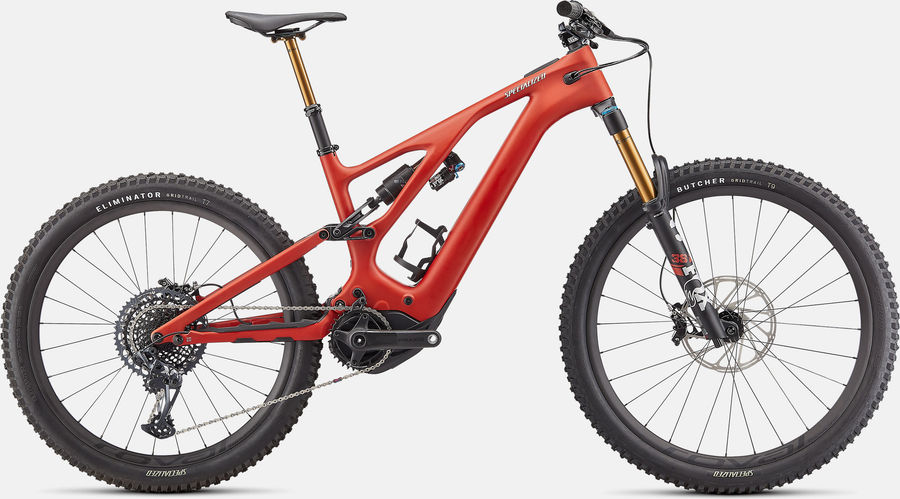

Specialized Turbo Levo Pro 2022
The Specialized Turbo Levo Pro 2022 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29" / 27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm
Price
$13,000.00
About the Specialized Turbo Levo Pro 2022
The Specialized Turbo Levo Pro 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Deity, Knuckleduster, Black
|
|---|---|
|
Pedals
|
delete
|
|
Steam
|
Deity Copperhead, 35.0mm
|
|---|---|
|
Saddle
|
Bridge, 155/143mm, Hollow Ti-rails
|
|
Battery
|
Specialized M3-700, Integrated battery, 700Wh
|
|
Charger
|
Custom charger, 42V4A w/ Rosenberger plug
|
|
Seatpost
|
FOX Transfer, 30.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 200mm
|
|
Handlebar
|
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
|
|
Brakes
|
SRAM Code RSC
Hydraulic
|
|
|
|
|
Crankset
|
Praxis Carbon M30, custom offset, 160mm, SRAM X-Sync Eagle, 104 BCD, 34T, steel
|
|---|---|
|
Motor
|
Specialized Turbo Full Power System 2.2 Motor
|
|
Shifter
|
SRAM XO1 Eagle trigger, 12-speed, single click
|
|
Chain
|
SRAM X01 Eagle
239 g
|
|
|
|
|
Cassette
|
SRAM XG-1295 Eagle
12s
350 g
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
|
|---|---|
|
Rear suspension
|
Fox Float X2 Factory
|
|
Front suspension
|
Fox 38 Float Factory Kashima
|
|
Rims
|
Front: Traverse Carbon 29, Rear: Traverse Carbon 27.5
|
|---|---|
|
Tires
|
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6", Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
|
Geometry
| Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
|
a
Seat tube length
|
390,0
|
405,0
|
425,0
|
445,0
|
465,0
|
|
b
Seat tube angle
|
77,2º
|
76,7º
|
76,2º
|
76,2º
|
76,2º
|
|
c
Top tube length
|
-
|
-
|
-
|
-
|
-
|
|
d
Head tube length
|
105,0
|
115,0
|
125,0
|
135,0
|
145,0
|
|
e
Head tube angle
|
64,5º
|
64,5º
|
64,5º
|
64,5º
|
64,5º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
130,0
|
130,0
|
130,0
|
130,0
|
130,0
|
|
h
Wheelbase
|
1207,0
|
1232,0
|
1262,0
|
1291,0
|
1325,0
|
|
i
Chainstay length
|
449,0
|
449,0
|
449,0
|
449,0
|
449,0
|
|
j
Bottom bracket drop
|
27,0
|
27,0
|
27,0
|
27,0
|
27,0
|
|
k
Stack height
|
624,0
|
633,0
|
642,0
|
651,0
|
660,0
|
|
l
Reach
|
439,0
|
459,0
|
484,0
|
509,0
|
539,0
|
|
m
Standover height
|
783,0
|
790,0
|
794,0
|
795,0
|
797,0
|
|
x
Bottom bracket height
|
350,0
|
350,0
|
350,0
|
350,0
|
350,0
|
|
y
Front center
|
760,0
|
784,0
|
814,0
|
843,0
|
878,0
|
