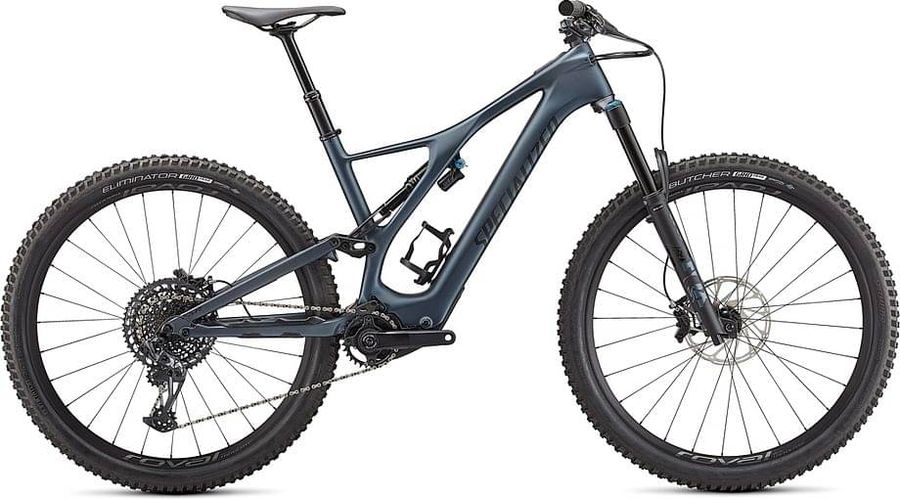

Specialized Turbo Levo SL Expert Carbon 2022
The Specialized Turbo Levo SL Expert Carbon 2022 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm
About the Specialized Turbo Levo SL Expert Carbon 2022
The Specialized Turbo Levo SL Expert Carbon 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Deity, Knuckleduster, Black
|
|---|
|
Steam
|
Alloy Trail Stem, 35mm bar bore
|
|---|---|
|
Saddle
|
Bridge Comp, Hollow Cr-mo rails, 155/143mm
|
|
Battery
|
Specialized SL1-320, fully integrated, 320Wh
|
|
Charger
|
Custom charger, 48V System w/ SL system charger plug
|
|
Seatpost
|
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S: 125mm, M/L: 150mm, XL: 170mm
|
|
Handlebar
|
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
|
|
Brakes
|
SRAM Code RS
|
|
Crankset
|
Praxis, forged M30, custom offset, SRAM X-Sync Eagle, 94 BCD, 30T
|
|---|---|
|
Motor
|
Specialized SL 1.1, custom lightweight motor
|
|
Shifter
|
SRAM X01 Eagle, trigger, 12-speed
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
|
|---|---|
|
Rear suspension
|
Fox Float DPX2 Performance
|
|
Front suspension
|
Fox 36 Float Performance Elite
|
|
Rims
|
Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready
|
|---|---|
|
Tires
|
Front: Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3", Rear: Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
|
|
Spokes
|
DT Swiss Competition Race
|
|
Rear hub
|
Roval DT Swiss 360, 3-pawl design, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
|
|
Front hub
|
Roval, sealed cartridge bearings, 15x110mm spacing, 28h
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
390,0
|
410,0
|
455,0
|
505,0
|
|
b
Seat tube angle
|
75,3º
|
75,0º
|
74,6º
|
74,2º
|
|
c
Top tube length
|
581,0
|
604,0
|
636,0
|
670,0
|
|
d
Head tube length
|
95,0
|
95,0
|
125,0
|
140,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
111,0
|
111,0
|
111,0
|
111,0
|
|
h
Wheelbase
|
1172,0
|
1192,0
|
1224,0
|
1255,0
|
|
i
Chainstay length
|
444,0
|
444,0
|
444,0
|
444,0
|
|
j
Bottom bracket drop
|
27,0
|
27,0
|
27,0
|
27,0
|
|
k
Stack height
|
613,0
|
613,0
|
640,0
|
654,0
|
|
l
Reach
|
422,0
|
442,0
|
462,0
|
487,0
|
|
m
Standover height
|
794,0
|
797,0
|
814,0
|
821,0
|
|
x
Bottom bracket height
|
348,0
|
348,0
|
348,0
|
348,0
|
|
y
Front center
|
729,0
|
749,0
|
781,0
|
812,0
|
