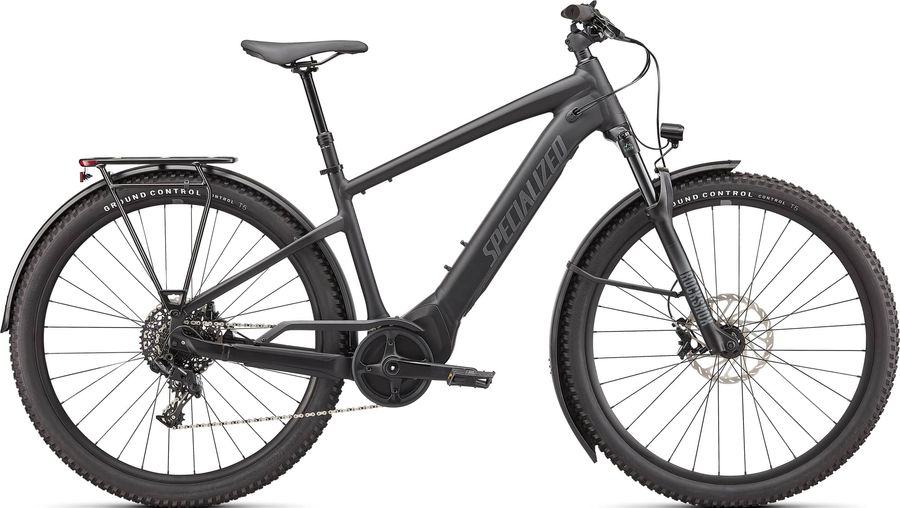

Specialized Turbo Tero 4.0 EQ 2022
The Specialized Turbo Tero 4.0 EQ 2022 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
110mm
About the Specialized Turbo Tero 4.0 EQ 2022
The Specialized Turbo Tero 4.0 EQ 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include internal routing, dropper seatpost, and boost 110 .
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Specialized Body Geometry Contour, lock-on
|
|---|---|
|
Pedals
|
Specialized platform pedal
|
|
Steam
|
Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount
|
|---|---|
|
Saddle
|
Rivo Sport, steel rails, 155mm
|
|
Battery
|
Specialized U2-710, alloy casing, state of charge display, 710Wh
|
|
Charger
|
Custom charger, 42V4A w/ Rosenberger plug, 230V
|
|
Seatpost
|
TranzX Dropper, 30.9mm, S: 100mm, M-XL: 120mm
|
|
Handlebar
|
Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, S 720mm, M-XL 750mm
|
|
Brakes
|
SRAM Guide T
Hydraulic
|
|
|
|
|
Crankset
|
Custom alloy forged crankarms, Praxis, 40T, 104BCD
|
|---|---|
|
Motor
|
Specialized 2.0, 70Nm torque, custom tuned motor, 250W nominal
|
|
Shifter
|
SRAM NX, 11-speed trigger
|
|
Rear derailleur
|
SRAM NX
11s
322 g
|
|
|
|
|
Chain
|
KMC 11v
|
|
Cassette
|
SRAM PG-1130
11s
|
|
11-28t:11,12,13,14,15,16,17,19,22,25,28 11-32t:11,12,13,14,15,17,19,22,25,28,32 11-36t:11,12,13,15,17,19,22,25,28,32,36 11-42t: 11,13,15,17,19,22,25,28,32,36,42 11-28t 11-32t 11-36t 11-42t |
|
|
Frame
|
E5 Aluminum, bottom bracket motor mount, fully integrated &lockable downtube battery, internal cable routing, lock and front rack mount
|
|---|---|
|
Front suspension
|
RockShox Recon Silver TK
Coil, Solo Air
2166 g
|
|
|
|
|
Rims
|
Stout XC 29, 25mm internal width, disc-specific
|
|---|---|
|
Tires
|
Front: Ground Control, 2Bliss Ready, 29x2.35", Rear: Ground Control, 2Bliss Ready, 29x2.35"
|
|
Spokes
|
DT Swiss Industry
|
|
Rear hub
|
Specialized alloy rear hub disc, sealed cardridge bearings, 6-bolt, 12x148mm thru-axle, 32h
|
|
Front hub
|
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
450,0
|
460,0
|
500,0
|
|
b
Seat tube angle
|
-
|
-
|
-
|
-
|
|
c
Top tube length
|
-
|
-
|
-
|
-
|
|
d
Head tube length
|
135,0
|
150,0
|
165,0
|
190,0
|
|
e
Head tube angle
|
66,4º
|
66,4º
|
66,4º
|
66,4º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
114,0
|
114,0
|
114,0
|
114,0
|
|
h
Wheelbase
|
1173,0
|
1,2e3
|
1226,0
|
1252,0
|
|
i
Chainstay length
|
470,4
|
470,4
|
470,4
|
470,4
|
|
j
Bottom bracket drop
|
57,0
|
57,0
|
57,0
|
57,0
|
|
k
Stack height
|
637,0
|
651,0
|
664,0
|
687,0
|
|
l
Reach
|
405,0
|
426,0
|
446,0
|
462,0
|
|
m
Standover height
|
773,0
|
807,0
|
807,0
|
835,0
|
|
x
Bottom bracket height
|
313,0
|
313,0
|
313,0
|
313,0
|
|
y
Front center
|
709,0
|
736,0
|
761,0
|
787,0
|
