Specialized Women's Chisel Expert 2018

Women's Bike
MTB Cross Country
Groupset
SRAM GX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail

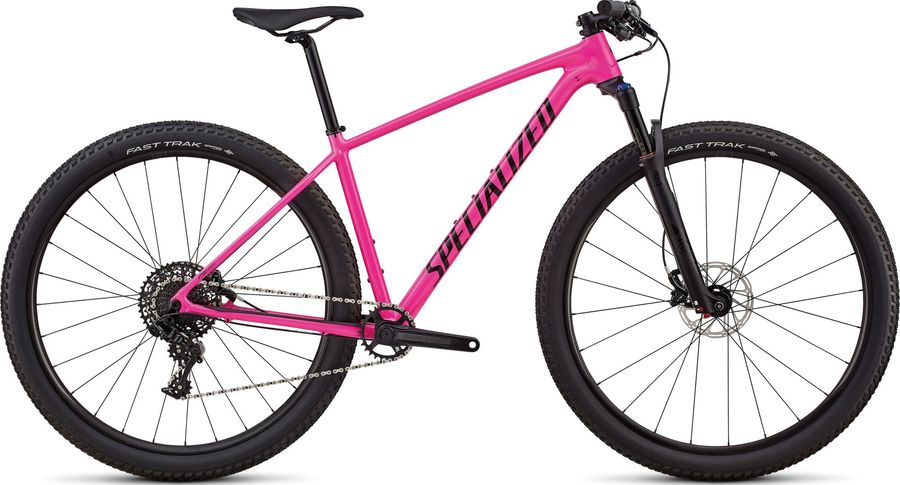

Specialized Women's Chisel Expert 2018

About the Specialized Women's Chisel Expert 2018

The Specialized Women's Chisel Expert 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11).

Specifications

Acessories
Grip
Specialized Sip Grip
Pedals
Specialized Plataforma 9/16"
Components
Handlebar
Specialized Mini Rise Alumínio
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Saddle
Specialized Myth Sport
Drivetrain
Shifter
SRAM GX 10, 2s 123 g
Cable length
1900mm, 2200mm
Cable pull ratio
Exact actuation
Color
Black
Compatible derailleur hub
FD: 2s, FD: 2s/RD: 10s, RD: 10s, Set: FD: 2s/RD: 10s
Matchmaker compatible
Yes
Model
SL-GX-A1
Name
GX 2x10 EXACT ACTUATION Trigger Shifters
Shifter type
Trigger
Speeds
10, 2
Weight based on
GX 10s Shifter Rear
Weight
123
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
KMC X11
Crankset
Race Face Aeffect
Rear derailleur
SRAM GX
Frameset
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Frame
Specialized M5 Alumínio
Wheels
Tires
Specialized Fast Trak 29x2.3"
Rear hub
Specialized sealed, 12x148mm, thru-axle, 32h

Geometry

Size XS S M L
a
Seat tube length
370,0
400,0
430,0
470,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
548,0
567,0
594,0
622,0
d
Head tube length
95,0
95,0
95,0
110,0
e
Head tube angle
69,8º
69,8º
69,8º
69,8º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1055,0
1073,0
1,1e3
1128,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
57,5
57,5
57,5
57,5
k
Stack height
586,0
595,0
605,0
619,0
l
Reach
380,0
395,0
418,0
441,0
m
Standover height
731,0
760,0
790,0
814,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
