Specialized Women's Chisel Expert 2019

Women's Bike
MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail

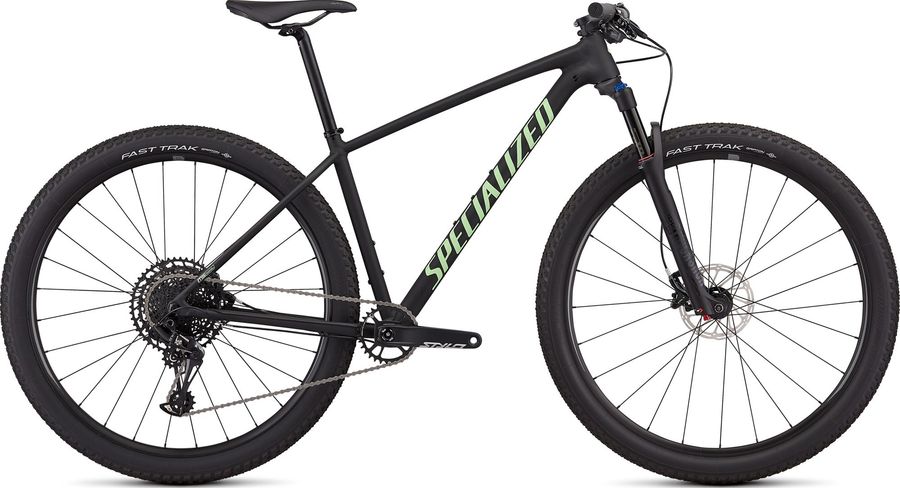

Specialized Women's Chisel Expert 2019

About the Specialized Women's Chisel Expert 2019

The Specialized Women's Chisel Expert 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12).

Specifications

Acessories
Grip
Specialized Sip Grip
Pedals
Specialized Dirt
Components
Handlebar
Specialized Mini Rise Alumínio
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Saddle
Specialized Myth Sport
Drivetrain
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Crankset
Truvativ Stylo Carbon 11/12s 555 g
BB compatibility
DUB BSA MTB 100
DUB PF MTB 121
DUB BSA73
DUB PF89.5
DUB PF92
DUB PF30 MTB73
DUB BB30 MTB73
DUB:BSA73
PF89.5
PF92
PF30 MTB73
BB30 MTB73
BSA MTB68SP
BB spindle interface
DUB
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 55.0mm, 66.5mm, 76.5mm
Chainring material
Aluminum
Chainring size
30T, 32T, 34T
Crank arm length
170mm, 175mm
Model
FC-STYL-C-B1
Name
STYLO Carbon DUB™ Crankset
Speeds
11/12
Weight based on
DUB 175mm Boost 32t
Weight
555
Shifter
SRAM NX Eagle
Bottom bracket
SRAM DUB
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Frameset
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Frame
Specialized M5 Alumínio
Wheels
Rear hub
Specialized selado, 12x148mm, thru-axle, 28h
Tires
Specialized Fast Trak 29x2.3"

Geometry

Size XS S M L
a
Seat tube length
370,0
400,0
430,0
470,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
548,0
567,0
594,0
622,0
d
Head tube length
95,0
95,0
95,0
110,0
e
Head tube angle
69,8º
69,8º
69,8º
69,8º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1055,0
1073,0
1,1e3
1128,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
57,5
57,5
57,5
57,5
k
Stack height
586,0
595,0
605,0
619,0
l
Reach
380,0
395,0
418,0
441,0
m
Standover height
731,0
760,0
790,0
814,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
