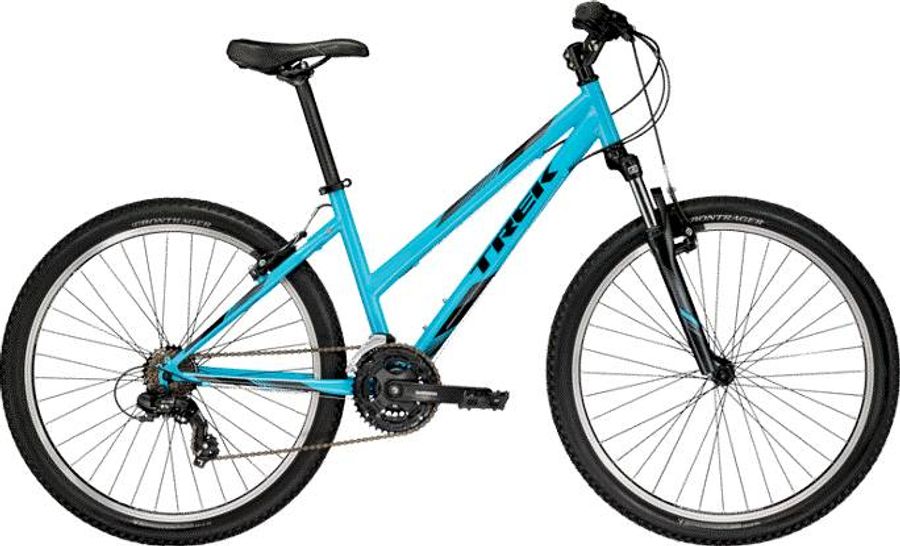

Trek 820 WSD 2021
The Trek 820 WSD 2021 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Tourney
Frame material
Steel
Wheel size
26"
Suspension type
Hardtail
Weight
15,15 kg
Front travel
75mm
Price
$499.99
About the Trek 820 WSD 2021
The Trek 820 WSD 2021 is a Hardtail Cross Country Mountain Bike with a steel frame. Equipped with a Shimano Tourney drivetrain of 21 gears (3x7). The bike weighs approximately 15,15 kg.
Specifications
|
Grip
|
Bontrager SSR
|
|---|
|
Steam
|
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
|
|---|---|
|
Brakes
|
Tektro alloy linear-pull
|
|
Saddle
|
Bontrager Sport Women's
|
|
Headset
|
1-1/8'' threadless
|
|
Seatpost
|
Bontrager alloy, 29.2mm, 12mm offset, 300mm length
|
|
Handlebar
|
Bontrager alloy, 31.8mm, 15mm rise, 660mm width
|
|
Crankset
|
Shimano Tourney TY301, 42/34/24, 170mm length
|
|---|---|
|
Shifter
|
Shimano Tourney EF41, 7 speed
|
|
Bottom bracket
|
VP BC73, 68mm, threaded
|
|
Front derailleur
|
Shimano Tourney TY500, 31.8mm clamp, top swing, dual pull
|
|
Rear derailleur
|
Shimano Tourney RD-TY300
SGS
7/6s
|
|
|
|
|
Chain
|
KMC Z7
|
|
Cassette
|
Shimano MF-TZ500
|
|
Frame
|
Trek Custom Steel, rack mounts, 135x5mm QR
|
|---|---|
|
Front suspension
|
SR Suntour M3030
|
|
Rear hub
|
Formula FM31 alloy, 7sp freewheel, 135x5mm QR
|
|---|---|
|
Front hub
|
Formula FM21 alloy, 100x5mm QR
|
Geometry
| Size | 13" | 16" | 19.5" |
|---|---|---|---|
|
a
Seat tube length
|
330,0
|
406,0
|
495,0
|
|
b
Seat tube angle
|
74,0º
|
73,5º
|
73,0º
|
|
c
Top tube length
|
522,0
|
544,0
|
573,0
|
|
d
Head tube length
|
110,0
|
110,0
|
170,0
|
|
e
Head tube angle
|
70,5º
|
70,5º
|
70,5º
|
|
f
Rake
|
-
|
-
|
-
|
|
g
Trail
|
76,0
|
76,0
|
76,0
|
|
h
Wheelbase
|
1017,0
|
1034,0
|
1062,0
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
0,0
|
0,0
|
0,0
|
|
k
Stack height
|
-
|
-
|
-
|
|
l
Reach
|
-
|
-
|
-
|
|
m
Standover height
|
653,0
|
629,0
|
623,0
|
|
x
Bottom bracket height
|
287,0
|
291,0
|
293,0
|
|
y
Front center
|
589,0
|
606,0
|
634,0
|
