BikeWise

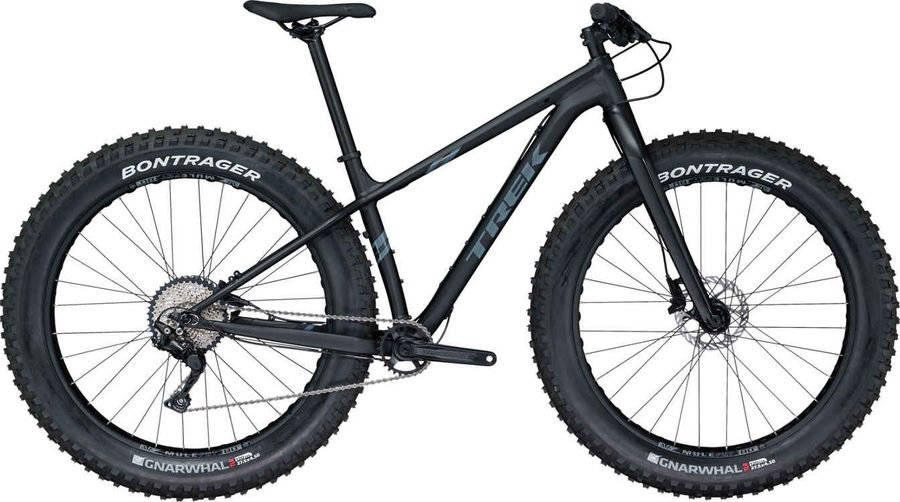

Trek Farley 5 2018

MTB Fatbike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,56 kg
Front travel
100mm
Trek Farley 5 2018

About the Trek Farley 5 2018

The Trek Farley 5 2018 is a Hardtail Fatbike Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include e-thru axle, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 14,56 kg.

Features

The Trek Farley 5 2018 has 4 features listed below.
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager Race Lite, lock-on
Pedals
Not included
Components
Steam
Bontrager Elite, 31.8mm, 7 degree, Blendr compatible
Saddle
Bontrager Evoke 1.5
Headset
FSA IS-2, 1-1/8˝ top, 1.5˝ bottom
Seatpost
Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset
Handlebar
Bontrager alloy, 31.8mm, 15mm rise
Brakes
SRAM Level Hydraulic 430 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black
Model
DB-LVL-A1
Name
Level
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm G2 Rotor (TARGET)
Weight
430
Drivetrain
Crankset
Race Face Aeffect, 28T Direct Mount Narrow-Wide
Shifter
Shimano Deore M6000, 10 speed
Bottom bracket
PF121
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Frame
Alpha Platinum Aluminum, E2 tapered head tube, internal derailleur & dropper post routing, 197mm Stranglehold adjustable thru axle dropouts
Front suspension
Bontrager Haru, OCLV Carbon
Wheels
Rims
SUNringlé Mulefut 80 SL 32-hole cutout, tubeless strips and valves sold separately
Tires
Bontrager Gnarwhal, Tubeless Ready, Inner Strength sidewalls, 120tpi, aramid bead, 27.5x4.50˝ (15.5" & 17.5" rear tire: Bontrager Barbegazi, 27.5x4.50")
Rear hub
Bontrager alloy sealed bearing, 197x12 rear
Front hub
Bontrager sealed bearing, 150x15

Geometry

Size 19.5"
a
Seat tube length
470,0
b
Seat tube angle
73,0º
c
Top tube length
632,0
d
Head tube length
120,0
e
Head tube angle
69,0º
f
Rake
51,0
g
Trail
91,0
h
Wheelbase
1145,0
i
Chainstay length
442,0
j
Bottom bracket drop
65,0
k
Stack height
619,0
l
Reach
443,0
m
Standover height
780,0
x
Bottom bracket height
315,0
y
Front center
711,0
