Trek Fuel EX 5 27.5 Plus 2018

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,97 kg
Front travel
140mm
Rear travel
130mm

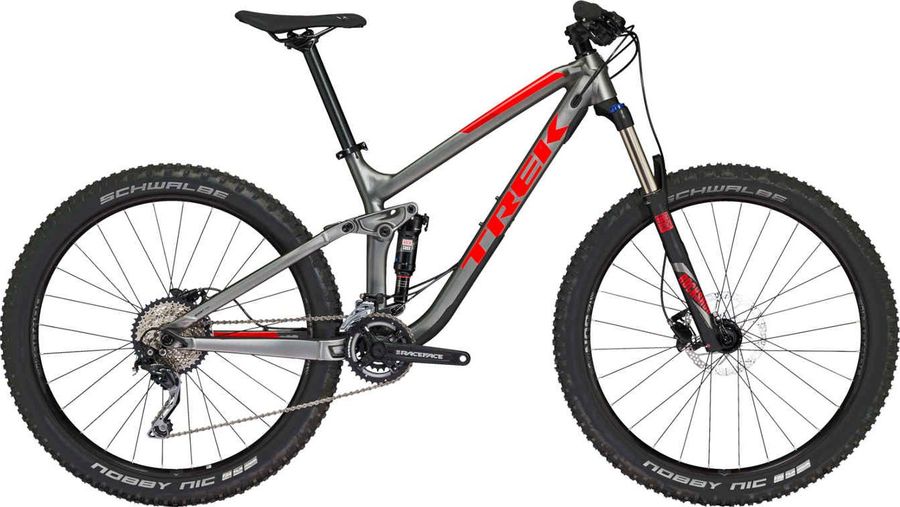

Trek Fuel EX 5 27.5 Plus 2018

About the Trek Fuel EX 5 27.5 Plus 2018

The Trek Fuel EX 5 27.5 Plus 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 14,97 kg.

Features

The Trek Fuel EX 5 27.5 Plus 2018 has 5 features listed below.
cabeamento-interno
Internal routing More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Bontrager Race
Pedals
Not included
Components
Steam
Bontrager Rhythm Comp, Knock Block, 31.8mm, 0 degree, 60mm length
Saddle
Bontrager Evoke 1.5
Headset
Knock Block Integrated, sealed cartridge bearing, 1-1/8˝ top, 1.5˝ bottom
Seatpost
Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset
Handlebar
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Brake lever
Shimano M315 hydraulic
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
Race Face Ride, 36/22
Shifter
Shimano Deore M6000, 10 speed
Bottom bracket
PF92
Front derailleur
Shimano Deore M6020
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Frame
Alpha Platinum Aluminum, ABP, Boost148, Knock Block steerer stop, Full Floater, EVO link, E2 tapered head tube, Mino Link, Control Freak internal routing, down tube guard, PF92, ISCG 05, G2 Geometry, 130mm travel
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Front suspension
RockShox Recon Silver
Wheels
Rims
SUNringlé Duroc 40 SL 28-hole, tubeless strips and valves included
Tires
Schwalbe Nobby Nic Performance w/Addix compound, Tubeless, 27.5x2.80˝
Rear hub
Bontrager sealed bearing alloy axle, Boost148
Front hub
Formula Alloy DC511, Boost110

Geometry

Size 15.5" High 17.5" High 18.5" High 19.5" High 21.5" High 23" High
a
Seat tube length
394,0
419,0
440,0
470,0
510,0
560,0
b
Seat tube angle
74,2º
74,2º
74,2º
74,2º
74,2º
74,2º
c
Top tube length
539,0
574,0
591,0
606,0
633,0
667,0
d
Head tube length
100,0
100,0
100,0
100,0
110,0
145,0
e
Head tube angle
67,2º
67,2º
67,2º
67,2º
67,2º
67,2º
f
Rake
50,0
51,0
51,0
51,0
51,0
51,0
g
Trail
96,0
96,0
96,0
96,0
96,0
96,0
h
Wheelbase
1119,0
1154,0
1171,0
1186,0
1212,0
1245,0
i
Chainstay length
427,0
427,0
427,0
427,0
427,0
427,0
j
Bottom bracket drop
26,0
26,0
26,0
26,0
26,0
26,0
k
Stack height
601,0
601,0
601,0
601,0
610,0
642,0
l
Reach
388,0
422,0
439,0
454,0
476,0
496,0
m
Standover height
753,0
733,0
728,0
723,0
733,0
773,0
x
Bottom bracket height
334,0
334,0
334,0
334,0
334,0
334,0
y
Front center
693,0
728,0
745,0
760,0
786,0
819,0
