Trek Fuel EX 5 Women's 2018

Women's Bike
MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,51 kg
Front travel
120mm
Rear travel
130mm

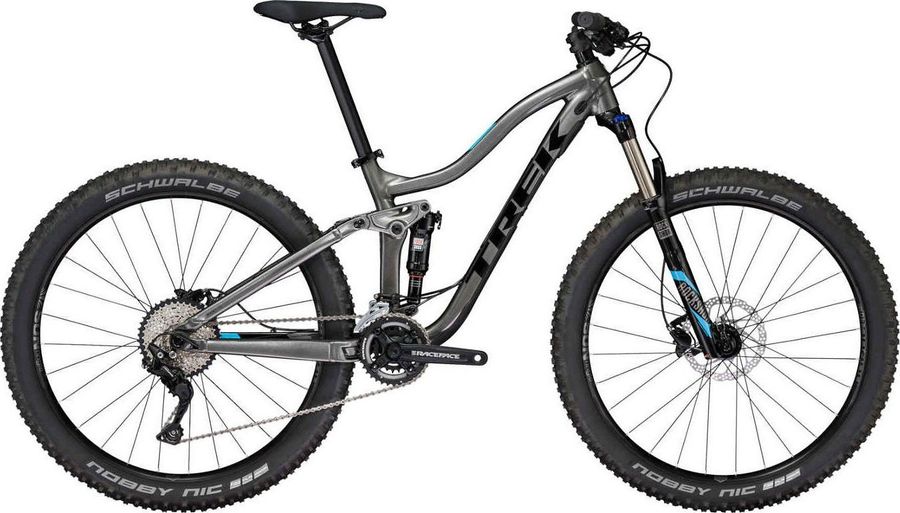

Trek Fuel EX 5 Women's 2018

About the Trek Fuel EX 5 Women's 2018

The Trek Fuel EX 5 Women's 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 14,51 kg.

Features

The Trek Fuel EX 5 Women's 2018 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Bontrager Race
Components
Steam
Bontrager Rhythm Comp, Knock Block, 31.8mm clamp, 0° rise, 60mm length
Saddle
Bontrager Evoke 1.5 Women's
Headset
Knock Block Integrated, sealed cartridge bearing
Seatpost
Bontrager SSR, 2-bolt head, 12mm offset
Handlebar
Bontrager alloy, 31.8mm clamp, 15mm rise, 720mm width
Brake lever
Shimano M315 hydraulic
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
Race Face Ride
Shifter
Shimano Deore M6000, 10-speed
Bottom bracket
PF92
Front derailleur
Shimano Deore M6020
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
Aluminum
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Front suspension
RockShox Recon Silver
Wheels
Rims
Sun Ringle Duroc 40 SL, 28-hole (tubeless strips and valves included)
Tires
Schwalbe Rocket Ron, Addix compound, tubeless, 27.5" x 2.80"
Rear hub
Front: Formula DC511 alloy, Boost110, Rear: Bontrager sealed bearing, alloy axle, Boost148
Front hub
Front: Formula DC511 alloy, Boost110, Rear: Bontrager sealed bearing, alloy axle, Boost148

Geometry

Size 14" 15.5" 17.5" 18.5"
a
Seat tube length
356,0
394,0
419,0
440,0
b
Seat tube angle
74,2º
74,2º
74,2º
74,2º
c
Top tube length
549,0
568,0
607,0
624,0
d
Head tube length
90,0
100,0
100,0
100,0
e
Head tube angle
67,7º
67,7º
67,2º
67,2º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1093,0
1113,0
1163,0
1180,0
i
Chainstay length
440,0
440,0
440,0
440,0
j
Bottom bracket drop
17,0
17,0
26,0
26,0
k
Stack height
573,0
582,0
613,0
613,0
l
Reach
389,0
405,0
440,0
457,0
m
Standover height
698,0
706,0
754,0
749,0
x
Bottom bracket height
338,0
338,0
329,0
329,0
y
Front center
-
-
-
-
