Trek Fuel EX 8 XT 2020

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
13,81 kg
Front travel
140mm
Rear travel
130mm

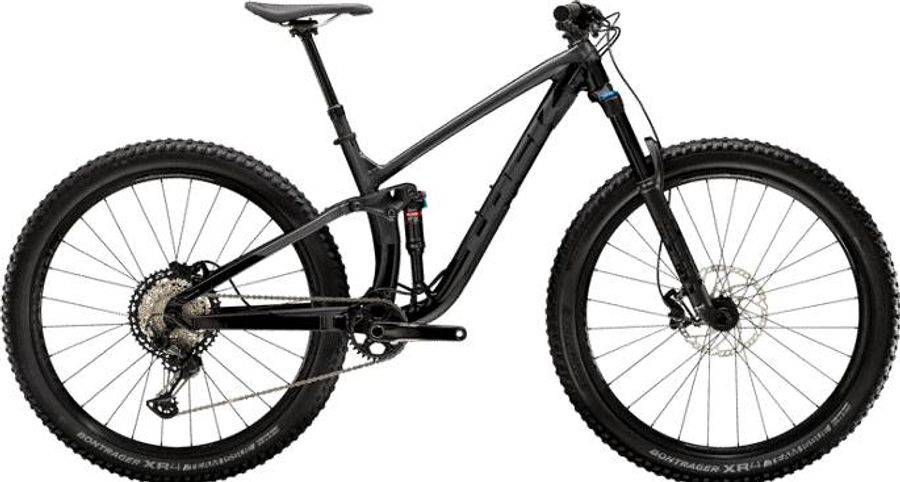

Trek Fuel EX 8 XT 2020

About the Trek Fuel EX 8 XT 2020

The Trek Fuel EX 8 XT 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 13,81 kg.

Features

The Trek Fuel EX 8 XT 2020 has 8 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Elite, alloy lock-on
Components
Steam
Bontrager Line, 35 mm, Knock Block, 0-degree, 50 mm length
Saddle
Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost
Bontrager Line Dropper, 150mm travel, internal routing, 31.6 mm, 440mm length
Handlebar
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Discs
Shimano RT66, 6-bolt, 180 mm
Brakes
Shimano Deore BR-M6000 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Black
Secondary color
Series Silver *
color.3
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal **
Pad standard
G02S Resin,
G03S Resin
Pad standard
J02A Resin **
J03A Resin **
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended brake lever
BL-M6100
BL-MT501
BL-T6000
Recommended disc brake rotor
SM-RT54****
SM-RT56****
SM-RT64
SM-RT66
Drivetrain
Crankset
Shimano XT M8100, 32T alloy ring, Boost, 175 mm length
Shifter
Shimano XT M8100, 12-speed
Bottom bracket
Shimano MT500, 92 mm, PressFit
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel
Front suspension
Fox 34 Float Rhythm
Rear suspension
Fox Float Performance EVOL
Wheels
Rims
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Tires
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60"
Spokes
NA
Rear hub
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Front hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle

Geometry

Size 13.5" High 13.5" Low 15.5" High 15.5" Low 15.5" High 15.5" Low 17.5" High 17.5" Low 18.5" High 18.5" Low 19.5" High 19.5" Low 21.5" High 21.5" Low 23" High 23" Low
a
Seat tube length
355,0
356,0
355,0
395,0
395,0
395,0
420,0
420,0
435,0
435,0
450,0
450,0
500,0
500,0
540,0
540,0
b
Seat tube angle
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
c
Top tube length
551,0
556,0
573,0
574,0
583,0
584,0
608,0
609,0
624,0
625,0
639,0
640,0
667,0
669,0
692,0
694,0
d
Head tube length
90,0
90,0
100,0
100,0
100,0
100,0
100,0
100,0
105,0
105,0
105,0
105,0
120,0
120,0
140,0
140,0
e
Head tube angle
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
f
Rake
43,0
43,0
43,0
43,0
44,0
44,0
44,0
44,0
44,0
43,0
44,0
43,0
44,0
43,0
44,0
43,0
g
Trail
107,0
111,0
108,0
111,0
115,0
119,0
116,0
119,0
116,0
119,0
116,0
119,0
116,0
119,0
116,0
119,0
h
Wheelbase
1125,0
1126,0
1149,0
1150,0
1159,0
1160,0
1184,0
1185,0
1201,0
1202,0
1216,0
1217,0
1247,0
1248,0
1275,0
1276,0
i
Chainstay length
441,0
443,0
441,0
443,0
441,0
443,0
441,0
443,0
441,0
443,0
441,0
443,0
441,0
443,0
441,0
443,0
j
Bottom bracket drop
14,0
21,0
14,0
21,0
28,0
34,0
28,0
34,0
27,0
34,0
27,0
34,0
27,0
34,0
27,0
34,0
k
Stack height
565,0
569,0
574,0
578,0
611,0
614,0
611,0
614,0
615,0
619,0
615,0
619,0
629,0
633,0
647,0
651,0
l
Reach
406,0
401,0
426,0
421,0
426,0
421,0
451,0
446,0
466,0
461,0
481,0
476,0
506,0
501,0
526,0
521,0
m
Standover height
706,0
701,0
712,0
707,0
712,0
707,0
754,0
748,0
757,0
751,0
762,0
756,0
774,0
768,0
812,0
806,0
x
Bottom bracket height
341,0
335,0
341,0
335,0
346,0
339,0
346,0
339,0
346,0
339,0
346,0
339,0
346,0
339,0
346,0
339,0
y
Front center
684,0
684,0
708,0
708,0
719,0
719,0
744,0
744,0
761,0
761,0
776,0
776,0
807,0
807,0
835,0
835,0
