Groupset
SRAM GX Eagle AXS
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
13,21 kg
Front travel
140mm
Rear travel
130mm
Price
$7,499.99

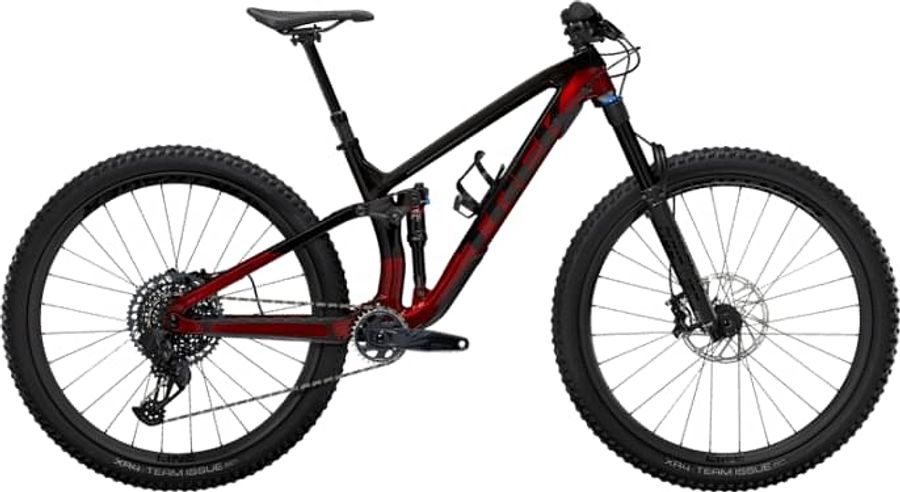

About the Trek Fuel EX 9.8 GX AXS 2021
The Trek Fuel EX 9.8 GX AXS 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle AXS drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 13,21 kg.
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Bontrager XR Trail Elite, nylon lock-on
|
|---|
|
Steam
|
Size: XS, S, Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 35mm length; Size: M, ML, L, XL, Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length
|
|---|---|
|
Saddle
|
Bontrager Arvada, austenite rails, 138mm width
|
|
Headset
|
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
|
|
Seatpost
|
Size: XS, S, Bontrager Line Elite, 100mm travel, MaxFlow, internal routing, 31.6mm, 340mm length; Size: M, ML, Bontrager Line Elite, 150mm travel, MaxFlow, internal routing, 31.6mm, 440mm length; Size: L, XL, Bontrager Line Elite, 170mm travel, MaxFlow, internal routing, 31.6mm, 480mm length
|
|
Handlebar
|
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
|
|
Discs
|
Size: XS, S, M, ML, L, XL, SRAM CenterLine, 6-bolt, round edge, 180mm; Size: M, ML, L, XL, SRAM CenterLine, 6-bolt, round edge, 200mm
|
|
Brakes
|
SRAM G2 RS
Hydraulic
397 g
|
|
|
|
|
Crankset
|
Size: XS, S, SRAM GX Eagle, DUB, 30T alloy ring, Boost (52mm chainline), 170mm length; Size: M, ML, L, XL, SRAM GX Eagle, DUB, 30T alloy ring, Boost (52mm chainline), 175mm length
|
|---|---|
|
Shifter
|
SRAM GX Eagle AXS, 12 speed
|
|
Bottom bracket
|
SRAM DUB, 92mm, PressFit
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle AXS
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Frame
|
OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel; OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
|
|---|---|
|
Front suspension
|
Fox 36 Float Performance
|
|
Rear suspension
|
Fox Float Performance EVOL
|
|
Rims
|
NEW Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
|
|---|---|
|
Tires
|
Size: XS, S, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.40''; Size: XS, S, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60''; Size: S, M, ML, L, XL, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40''; Size: S, M, ML, L, XL, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60''
|
|
Rear hub
|
Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12mm thru axle
|
|
Front hub
|
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
|
Geometry
| Size | 14" High | 14" Low | 15.5" High | 15.5" Low | 15.5" High | 15.5" Low | 17.5" High | 17.5" Low | 18.5" High | 18.5" Low | 19.5" High | 19.5" Low | 21.5" High | 21.5" Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
355,0
|
356,0
|
395,0
|
395,0
|
395,0
|
395,0
|
420,0
|
420,0
|
435,0
|
435,0
|
450,0
|
450,0
|
500,0
|
500,0
|
|
b
Seat tube angle
|
75,5º
|
75,0º
|
75,5º
|
75,0º
|
75,5º
|
75,0º
|
75,5º
|
75,0º
|
75,5º
|
75,0º
|
75,5º
|
75,0º
|
75,5º
|
75,0º
|
|
c
Top tube length
|
551,0
|
552,0
|
573,0
|
574,0
|
583,0
|
584,0
|
608,0
|
609,0
|
624,0
|
625,0
|
639,0
|
640,0
|
668,0
|
669,0
|
|
d
Head tube length
|
90,0
|
90,0
|
100,0
|
100,0
|
100,0
|
100,0
|
100,0
|
100,0
|
105,0
|
105,0
|
105,0
|
105,0
|
120,0
|
120,0
|
|
e
Head tube angle
|
66,5º
|
66,0º
|
66,5º
|
66,0º
|
66,5º
|
66,0º
|
66,5º
|
66,0º
|
66,5º
|
66,0º
|
66,5º
|
66,0º
|
66,5º
|
66,0º
|
|
f
Rake
|
42,0
|
43,0
|
42,0
|
43,0
|
43,0
|
43,0
|
43,0
|
43,0
|
43,0
|
43,0
|
43,0
|
43,0
|
43,0
|
43,0
|
|
g
Trail
|
106,0
|
111,0
|
106,0
|
111,0
|
115,0
|
119,0
|
116,0
|
119,0
|
116,0
|
119,0
|
116,0
|
119,0
|
116,0
|
119,0
|
|
h
Wheelbase
|
1125,0
|
1126,0
|
1149,0
|
1150,0
|
1159,0
|
1160,0
|
1184,0
|
1185,0
|
1201,0
|
1202,0
|
1216,0
|
1217,0
|
1247,0
|
1248,0
|
|
i
Chainstay length
|
442,0
|
443,0
|
442,0
|
443,0
|
442,0
|
443,0
|
442,0
|
443,0
|
442,0
|
443,0
|
442,0
|
443,0
|
442,0
|
443,0
|
|
j
Bottom bracket drop
|
14,0
|
21,0
|
14,0
|
21,0
|
28,0
|
34,0
|
28,0
|
34,0
|
28,0
|
34,0
|
27,0
|
34,0
|
27,0
|
34,0
|
|
k
Stack height
|
565,0
|
569,0
|
574,0
|
578,0
|
611,0
|
615,0
|
611,0
|
615,0
|
615,0
|
619,0
|
615,0
|
619,0
|
629,0
|
633,0
|
|
l
Reach
|
406,0
|
401,0
|
426,0
|
421,0
|
426,0
|
421,0
|
451,0
|
446,0
|
466,0
|
461,0
|
481,0
|
476,0
|
506,0
|
501,0
|
|
m
Standover height
|
706,0
|
701,0
|
714,0
|
708,0
|
714,0
|
708,0
|
753,0
|
747,0
|
758,0
|
752,0
|
760,0
|
754,0
|
782,0
|
776,0
|
|
x
Bottom bracket height
|
341,0
|
335,0
|
341,0
|
335,0
|
346,0
|
340,0
|
346,0
|
340,0
|
346,0
|
340,0
|
346,0
|
340,0
|
346,0
|
340,0
|
|
y
Front center
|
683,0
|
684,0
|
707,0
|
708,0
|
718,0
|
719,0
|
743,0
|
744,0
|
760,0
|
761,0
|
775,0
|
776,0
|
806,0
|
807,0
|
