Trek Fuel EX 9.9 XTR 2022

MTB Trail
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
12,63 kg
Front travel
140mm
Rear travel
130mm
Price
$7,999.00

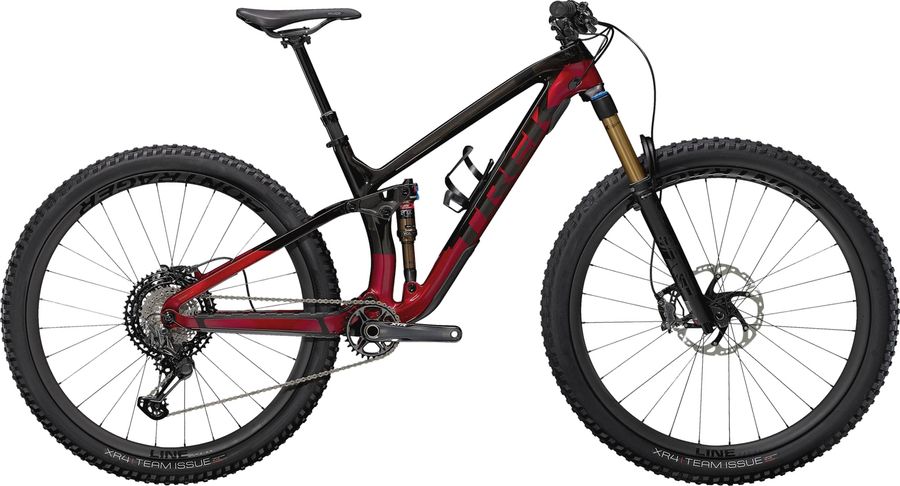

Trek Fuel EX 9.9 XTR 2022

About the Trek Fuel EX 9.9 XTR 2022

The Trek Fuel EX 9.9 XTR 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include internal routing, dropper seatpost, and boost 110 . The bike weighs approximately 12,63 kg.

Features

The Trek Fuel EX 9.9 XTR 2022 has 7 features listed below.
cabeamento-interno
Internal routing More info
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Trail Elite, alloy lock-on
Components
Steam
Size: XS, S, Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 35mm length; Size: M, ML, L, XL, Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length
Saddle
Bontrager Arvada Pro, carbon rails, 138mm width
Headset
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seatpost
Size: XS, S, Bontrager Line Elite Dropper, 100mm travel, internal routing, 31.6mm, 340mm length; Size: M, ML, Bontrager Line Elite Dropper, 150mm travel, internal routing, 31.6mm, 440mm length; Size: L, XL, Bontrager Line Elite Dropper, 170mm travel, internal routing, 31.6mm, 480mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Discs
Size: XS, S, M, ML, L, XL, Shimano RT86, 180mm, 6-bolt; Size: M, ML, L, XL, Shimano RT86, 203mm, 6-bolt
Brakes
Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g)
385 (BL-M9120)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad standard
N03A Resin pad (w/ radiator fin)
Pad standard
N04C Metal pad (w/ radiator fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Size: XS, S, Shimano XTR M9120, 30T alloy ring, Boost (52mm chainline), 170mm length; Size: M, ML, L, XL, Shimano XTR M9120, 30T alloy ring, Boost (52mm chainline), 175mm length
Shifter
Shimano XTR M9100, 12 speed
Bottom bracket
Shimano MT500, 92mm, PressFit
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
Rear suspension
Fox Float Factory EVOL
Front suspension
Fox 36 Float Factory
Wheels
Rims
NEW Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Tires
Size: XS, S, M, ML, L, XL, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29.x2.40''; Size: XS, S, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5x2.60''; Size: S, M, ML, L, XL, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.60''

Geometry

Size 14" High 14" Low 15.5" High 15.5" Low 15.5" High 15.5" Low 17.5" High 17.5" Low 18.5" High 18.5" Low 19.5" High 19.5" Low 21.5" High 21.5" Low
a
Seat tube length
355,0
356,0
395,0
395,0
395,0
395,0
420,0
420,0
435,0
435,0
450,0
450,0
500,0
500,0
b
Seat tube angle
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
75,5º
75,0º
c
Top tube length
551,0
552,0
573,0
574,0
583,0
584,0
608,0
609,0
624,0
625,0
639,0
640,0
668,0
669,0
d
Head tube length
90,0
90,0
100,0
100,0
100,0
100,0
100,0
100,0
105,0
105,0
105,0
105,0
120,0
120,0
e
Head tube angle
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
66,5º
66,0º
f
Rake
42,0
43,0
42,0
43,0
43,0
43,0
43,0
43,0
43,0
43,0
43,0
43,0
43,0
43,0
g
Trail
106,0
111,0
106,0
111,0
115,0
119,0
116,0
119,0
116,0
119,0
116,0
119,0
116,0
119,0
h
Wheelbase
1125,0
1126,0
1149,0
1150,0
1159,0
1160,0
1184,0
1185,0
1201,0
1202,0
1216,0
1217,0
1247,0
1248,0
i
Chainstay length
442,0
443,0
442,0
443,0
442,0
443,0
442,0
443,0
442,0
443,0
442,0
443,0
442,0
443,0
j
Bottom bracket drop
14,0
21,0
14,0
21,0
28,0
34,0
28,0
34,0
28,0
34,0
27,0
34,0
27,0
34,0
k
Stack height
565,0
569,0
574,0
578,0
611,0
615,0
611,0
615,0
615,0
619,0
615,0
619,0
629,0
633,0
l
Reach
406,0
401,0
426,0
421,0
426,0
421,0
451,0
446,0
466,0
461,0
481,0
476,0
506,0
501,0
m
Standover height
706,0
701,0
714,0
708,0
714,0
708,0
753,0
747,0
758,0
752,0
760,0
754,0
782,0
776,0
x
Bottom bracket height
341,0
335,0
341,0
335,0
346,0
340,0
346,0
340,0
346,0
340,0
346,0
340,0
346,0
340,0
y
Front center
683,0
684,0
707,0
708,0
718,0
719,0
743,0
744,0
760,0
761,0
775,0
776,0
806,0
807,0
