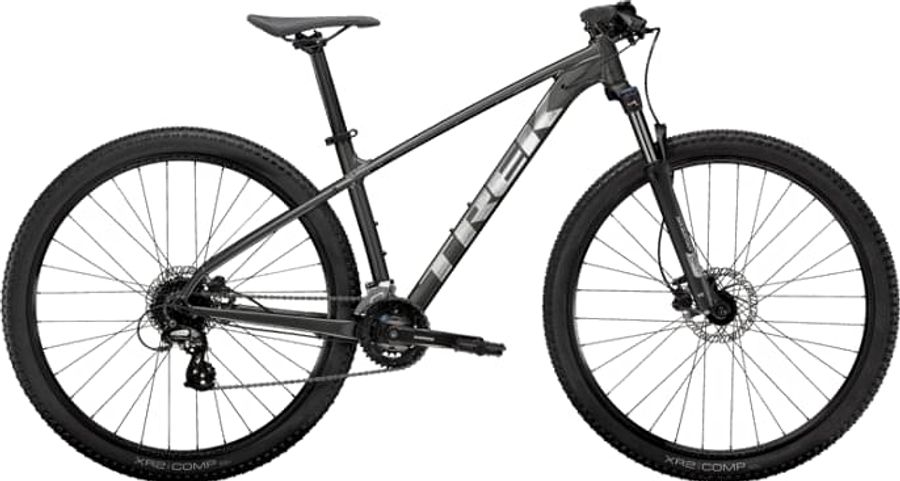

Trek Marlin 5 2022
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
26" / 27,5" / 29"
Suspension type
Hardtail
Front travel
100mm
Price
$602.10
About the Trek Marlin 5 2022
The Trek Marlin 5 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 16 gears (2x8). Its features include internal routing e hydraulic disc brakes.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Bontrager XR Endurance Comp, lock-on
|
|---|
|
Steam
|
Size: XXS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length; Size: XS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: ML, L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: XL, XXL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
|
|---|---|
|
Saddle
|
Bontrager Arvada, steel rails, 138mm width
|
|
Headset
|
Semi-integrated, 1-1/8''
|
|
Seatpost
|
Size: XXS, Bontrager alloy, 31.6mm, 12mm offset, 300mm length; Size: XS, S, M, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: ML, L, XL, XXL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length
|
|
Handlebar
|
Size: XXS, XS, Bontrager alloy, 31.8mm, 5mm rise, 690mm width; Size: S, M, ML, L, XL, XXL, Bontrager alloy, 31.8mm, 5mm rise, 720mm width
|
|
Brakes
|
Tektro HD-M275
|
|
Crankset
|
Size: XXS, Prowheel TM-CY10, 36/22, 160mm length; Size: XS, S, M, Shimano M315, 36/22, 170mm length; Size: ML, L, XL, XXL, Shimano M315, 36/22, 175mm length
|
|---|---|
|
Shifter
|
Shimano Altus M315, 8 speed
|
|
Bottom bracket
|
VP BC73, 73mm, threaded cartridge
|
|
Front derailleur
|
Shimano Altus M315, 34.9mm clamp, top swing, dual pull
|
|
Rear derailleur
|
Shimano Altus RD-M310
Smart
8/7s
|
|
|
|
|
Chain
|
KMC Z8
|
|
Cassette
|
Shimano Altus CS-HG200-8
HG
|
|
|
|
|
Frame
|
Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
|
|---|---|
|
Front suspension
|
SR Suntour XCM 30
|
|
Rims
|
Size: XXS, Bontrager Connection, alloy, double-wall, 32-hole, 20mm width, schrader valve; Size: XS, S, M, ML, L, XL, XXL, Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
|
|---|---|
|
Tires
|
Size: XXS, Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20''; Size: XS, S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''; Size: M, ML, L, XL, XXL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
|
|
Spokes
|
14g stainless steel
|
|
Rear hub
|
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
|
|
Front hub
|
Formula DC-20, alloy, 6-bolt, 5x100mm QR
|
Geometry
| Size | 13.5" | 13.5" | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23" |
|---|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
343,0
|
343,0
|
368,0
|
419,0
|
444,0
|
470,0
|
521,0
|
559,0
|
|
b
Seat tube angle
|
73,2º
|
73,5º
|
73,5º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
534,0
|
538,0
|
549,0
|
596,0
|
612,0
|
632,0
|
653,0
|
667,0
|
|
d
Head tube length
|
90,0
|
90,0
|
90,0
|
90,0
|
90,0
|
100,0
|
120,0
|
120,0
|
|
e
Head tube angle
|
68,7º
|
69,3º
|
69,3º
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
-63,0
|
44,0
|
44,0
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
87,0
|
88,0
|
88,0
|
93,0
|
93,0
|
93,0
|
93,0
|
93,0
|
|
h
Wheelbase
|
1047,0
|
1043,0
|
1060,0
|
1094,0
|
1110,0
|
1131,0
|
1153,0
|
1167,0
|
|
i
Chainstay length
|
536,0
|
432,0
|
432,0
|
432,0
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
53,0
|
58,0
|
48,0
|
58,0
|
58,0
|
58,0
|
58,0
|
58,0
|
|
k
Stack height
|
590,0
|
559,0
|
568,0
|
596,0
|
596,0
|
605,0
|
624,0
|
624,0
|
|
l
Reach
|
364,0
|
370,0
|
379,0
|
412,0
|
428,0
|
445,0
|
460,0
|
474,0
|
|
m
Standover height
|
696,0
|
652,0
|
680,0
|
742,0
|
752,0
|
751,0
|
763,0
|
798,0
|
|
x
Bottom bracket height
|
287,0
|
292,0
|
302,0
|
310,0
|
310,0
|
310,0
|
310,0
|
311,0
|
|
y
Front center
|
516,0
|
618,0
|
632,0
|
668,0
|
684,0
|
705,0
|
727,0
|
741,0
|
