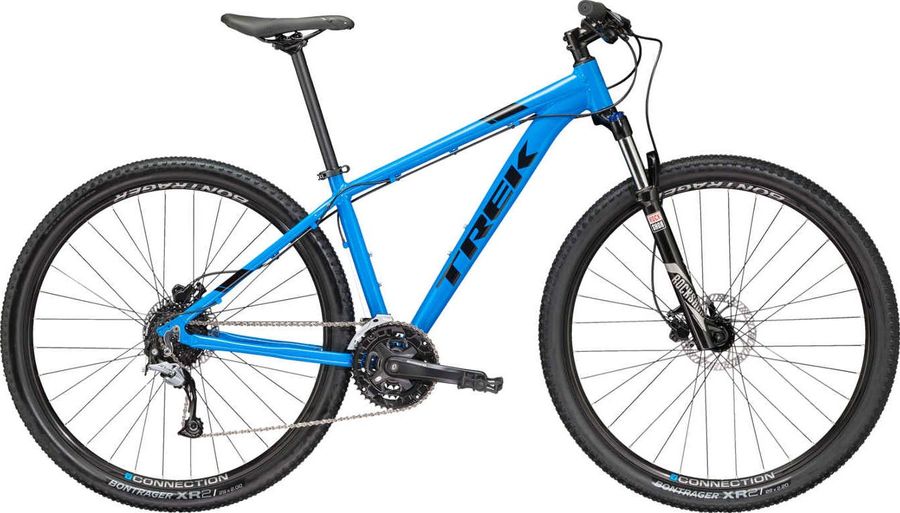

Trek Marlin 7 2018
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,29 kg
Front travel
100mm
About the Trek Marlin 7 2018
The Trek Marlin 7 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 27 gears (3x9). Its features include hydraulic disc brakes. The bike weighs approximately 14,29 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Bontrager Race
|
|---|---|
|
Pedals
|
Wellgo nylon platform
|
|
Steam
|
Bontrager alloy, 31.8mm, 7 degree, Blendr compatible
|
|---|---|
|
Saddle
|
Bontrager Evoke 1.5
|
|
Headset
|
Semi-integrated, 1-1/8˝
|
|
Seatpost
|
Bontrager alloy, 2-bolt head, 27.2mm, 12mm offset
|
|
Handlebar
|
Bontrager alloy, 31.8mm, 15mm rise
|
|
Brakes
|
Tektro HD-M285
|
|
Crankset
|
Shimano MT100, 40/30/22
|
|---|---|
|
Shifter
|
Shimano Altus M2000, 9 speed
|
|
Bottom bracket
|
Sealed cartridge
|
|
Front derailleur
|
Shimano Altus M2000
|
|
Rear derailleur
|
Shimano Acera RD-M3000
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Chain
|
KMC X9
|
|
Frame
|
Alpha Silver Aluminum w/semi-integrated head tube, rack & fender mounts, G2 Geometry on 29ers
|
|---|---|
|
Front suspension
|
RockShox XC 30
|
|
Rims
|
Bontrager Connection 32-hole double-walled
|
|---|---|
|
Tires
|
Bontrager XR2, 29x2.20˝ front, 29x2.00˝ rear (13.5 & 15.5: 27.5x2.20˝)
|
|
Rear hub
|
Formula DC22 alloy
|
|
Front hub
|
Formula DC20 alloy
|
Geometry
| Size | 13.5" | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23" |
|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
343,0
|
394,0
|
419,0
|
444,0
|
470,0
|
521,0
|
559,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
72,5º
|
72,3º
|
72,0º
|
72,0º
|
72,0º
|
|
c
Top tube length
|
519,0
|
554,0
|
596,0
|
614,0
|
633,0
|
653,0
|
667,0
|
|
d
Head tube length
|
100,0
|
100,0
|
100,0
|
100,0
|
100,0
|
120,0
|
120,0
|
|
e
Head tube angle
|
69,0º
|
69,3º
|
69,3º
|
69,6º
|
69,6º
|
69,6º
|
69,6º
|
|
f
Rake
|
44,0
|
44,0
|
51,0
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
89,0
|
87,0
|
85,0
|
83,0
|
83,0
|
83,0
|
83,0
|
|
h
Wheelbase
|
1027,0
|
1060,0
|
1110,0
|
1122,0
|
1138,0
|
1159,0
|
1173,0
|
|
i
Chainstay length
|
432,0
|
432,0
|
439,0
|
439,0
|
439,0
|
439,0
|
439,0
|
|
j
Bottom bracket drop
|
48,0
|
48,0
|
53,0
|
53,0
|
53,0
|
53,0
|
53,0
|
|
k
Stack height
|
559,0
|
579,0
|
594,0
|
595,0
|
595,0
|
614,0
|
614,0
|
|
l
Reach
|
346,0
|
375,0
|
407,0
|
422,0
|
438,0
|
452,0
|
466,0
|
|
m
Standover height
|
654,0
|
739,0
|
759,0
|
771,0
|
783,0
|
819,0
|
842,0
|
|
x
Bottom bracket height
|
306,0
|
306,0
|
316,0
|
316,0
|
316,0
|
316,0
|
316,0
|
|
y
Front center
|
600,0
|
632,0
|
676,0
|
688,0
|
704,0
|
725,0
|
739,0
|
