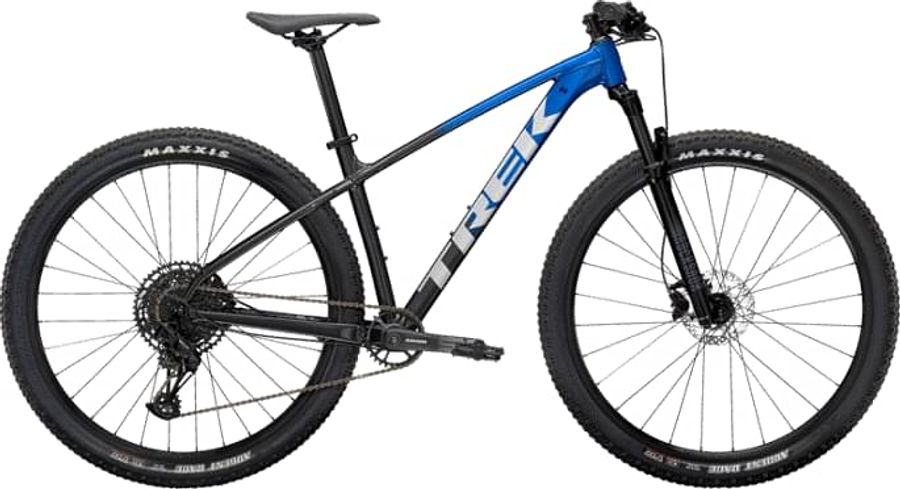

Trek Marlin 8 2022
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
26" / 27,5" / 29"
Suspension type
Hardtail
Weight
13,2 kg
Front travel
100mm
Price
$1,024.00
About the Trek Marlin 8 2022
The Trek Marlin 8 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 13,2 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Bontrager XR Trail Comp, nylon lock-on
|
|---|
|
Steam
|
Size: XXS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length; Size: XXS, XS, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: ML, L, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: XL, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
|
|---|---|
|
Saddle
|
Bontrager Arvada, steel rails, 138mm width
|
|
Headset
|
Semi-integrated, 1-1/8''
|
|
Seatpost
|
Size: XXS, Bontrager alloy, 31.6mm, 12mm offset, 300mm length; Size: XS, S, M, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: ML, L, XL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length
|
|
Handlebar
|
Size: XXS, XS, Bontrager alloy, 31.8mm, 5mm rise, 690mm width; Size: S, M, ML, L, XL, Bontrager alloy, 31.8mm, 5mm rise, 720mm width
|
|
Discs
|
Size: XXS, XS, S, M, ML, L, XL, Shimano RT26, 6-bolt,160mm; Size: L, XL, Shimano RT26, 6-bolt,180mm
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
Size: XXS, SRAM SX Eagle, 30T steel ring (49mm chainline), 155mm length; Size: XS, S, M, SRAM SX Eagle, 30T steel ring (49mm chainline), 170mm length; Size: ML, L, XL, SRAM SX Eagle, 30T steel ring (49mm chainline), 175mm length
|
|---|---|
|
Shifter
|
SRAM SX Eagle, 12 speed
|
|
Bottom bracket
|
Truvativ Powerspline, 73mm, threaded cartridge, 118mm spindle
|
|
Chain
|
SRAM SX Eagle
|
|
Cassette
|
SRAM PG-1210 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Frame
|
Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
|
|---|---|
|
Front suspension
|
RockShox Judy Silver
|
|
Rims
|
Size: XXS, XS, S, M, ML, L, XL, Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, presta valve; Size: M, ML, L, XL, Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve
|
|---|---|
|
Tires
|
Size: XXS, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 26x2.40''; Size: XS, S, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35''; Size: M, ML, L, XL, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35''; Size: M, ML, L, XL, Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.20''
|
|
Spokes
|
14g stainless steel
|
|
Rear hub
|
Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
|
|
Front hub
|
Formula DC-20 LW, alloy, 6-bolt, 5x100mm QR
|
Geometry
| Size | 13.5" | 13.5" | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|---|---|
|
a
Seat tube length
|
343,0
|
343,0
|
368,0
|
419,0
|
444,0
|
470,0
|
521,0
|
|
b
Seat tube angle
|
73,2º
|
73,5º
|
73,5º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
534,0
|
538,0
|
549,0
|
596,0
|
612,0
|
632,0
|
653,0
|
|
d
Head tube length
|
90,0
|
90,0
|
90,0
|
90,0
|
90,0
|
100,0
|
120,0
|
|
e
Head tube angle
|
68,7º
|
69,3º
|
69,3º
|
69,5º
|
69,5º
|
69,5º
|
69,5º
|
|
f
Rake
|
-63,0
|
44,0
|
44,0
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
87,0
|
88,0
|
88,0
|
93,0
|
93,0
|
93,0
|
93,0
|
|
h
Wheelbase
|
1047,0
|
1043,0
|
1060,0
|
1094,0
|
1110,0
|
1131,0
|
1153,0
|
|
i
Chainstay length
|
536,0
|
432,0
|
432,0
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
53,0
|
58,0
|
48,0
|
58,0
|
58,0
|
58,0
|
58,0
|
|
k
Stack height
|
590,0
|
559,0
|
568,0
|
596,0
|
596,0
|
605,0
|
624,0
|
|
l
Reach
|
364,0
|
370,0
|
379,0
|
412,0
|
428,0
|
445,0
|
460,0
|
|
m
Standover height
|
696,0
|
652,0
|
680,0
|
742,0
|
752,0
|
751,0
|
763,0
|
|
x
Bottom bracket height
|
287,0
|
292,0
|
302,0
|
310,0
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
516,0
|
618,0
|
632,0
|
668,0
|
684,0
|
705,0
|
727,0
|
