BikeWise

Trek Police 2019

Women's Bike
MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
14,63 kg
Front travel
100mm

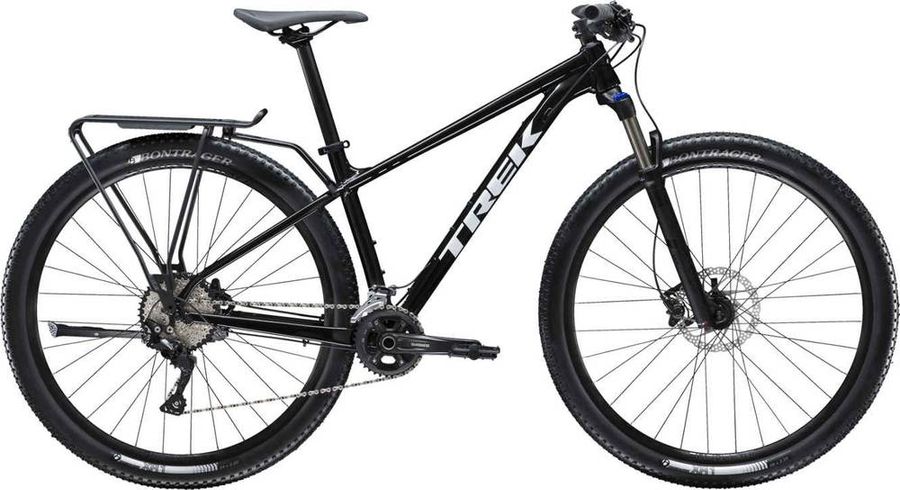

Trek Police 2019

About the Trek Police 2019

The Trek Police 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10). Its features include internal routing, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 14,63 kg.

Features

The Trek Police 2019 has 4 features listed below.
cabeamento-interno
Internal routing More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Bontrager XR Endurance Comp
Components
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Saddle
Bontrager Arvada
Handlebar
Bontrager Alloy, 31.8mm, 5mm rise
Steam
Bontrager Elite, 31.8mm
Seatpost
Bontrager Alloy, 2-bolt head, 31.6mm, 12mm offset
Drivetrain
Chain
KMC X10
Shifter
Shimano Deore SL-M6000 RAPIDFIRE PLUS
Base cover material
GFRP
Clamp bolt material
Stainless steel
Primary color
Series black
Compatible rear derailleur type
MTB 10-speed
Main lever body material
GFRP & Steel
Max multiple shifts main lever rear
3
Model
SL-M6000-R
Mount type
Clamp band
Optical gear display
With
Speeds
10
Release function
2-WAY RELEASE
release_lever_body.material
GFRP & Steel
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Painted
Shifting lever bracket material
Aluminum
Shifting lever cable finish
OPTISLICK
Shifting lever cable material
Stainless steel
Shifting lever cable adjust
Rear derailleur
Shimano Deore RD-M6000-SGS SGS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M6000-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Front derailleur
Shimano Deore FD-M6020
Crankset
Shimano FC-MT200 9s
Chain line (mm)
50
Chainring combination
40-30-22T
Primary color
Black
Compatible bottom bracket type (outboard)
Compatible chain
HG 9-speed
Crank arm finish
Painted
Crank arm material
Aluminum
crank_arm_length_mm.170
crank_arm_length_mm.175
Crank axle finish
Plated
Crank axle material
Steel
Model
FC-MT200
Pitch circle diameter
Riveted
Q factor (mm)
176
Speeds
9
Recommended bottom bracket (press fit)
BB-MT500-PA
Recommended bottom bracket (threaded normal)
BB-MT500
Spider gear arms
4
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Frame
Trek Alpha Gold Aluminum
Front suspension
RockShox Recon 30 Silver
Wheels
Front hub
Bontrager sealed bearing
Tires
Bontrager XR1, 29x2.20˝
Rear hub
Bontrager sealed bearing
Rims
Bontrager Kovee Elite 23

Geometry

Size 15.5" 17.5" 19" 21" 23"
a
Seat tube length
394,0
445,0
483,0
533,0
584,0
b
Seat tube angle
73,0º
72,5º
72,0º
72,0º
72,0º
c
Top tube length
564,0
596,0
616,0
637,0
657,0
d
Head tube length
103,0
103,0
103,0
118,0
118,0
e
Head tube angle
69,6º
69,6º
69,6º
69,6º
69,6º
f
Rake
54,0
54,0
51,0
51,0
52,0
g
Trail
83,0
83,0
81,0
81,0
81,0
h
Wheelbase
1084,0
1110,0
1121,0
1142,0
1163,0
i
Chainstay length
439,0
439,0
439,0
439,0
439,0
j
Bottom bracket drop
53,0
53,0
53,0
53,0
53,0
k
Stack height
596,0
596,0
597,0
611,0
611,0
l
Reach
380,0
406,0
420,0
436,0
456,0
m
Standover height
748,0
769,0
789,0
822,0
853,0
x
Bottom bracket height
312,0
312,0
312,0
312,0
312,0
y
Front center
650,0
676,0
687,0
708,0
729,0
