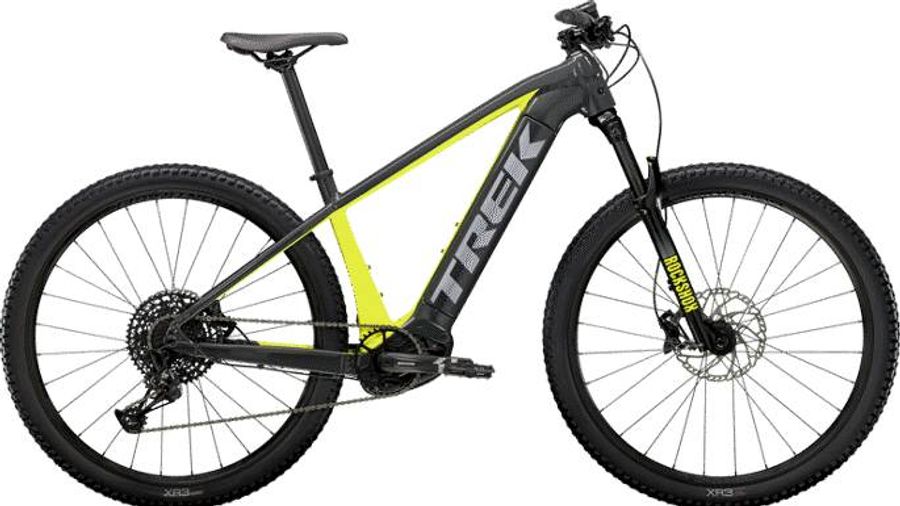

Trek Powerfly 5 2021
The Trek Powerfly 5 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
23 kg
Front travel
120mm
About the Trek Powerfly 5 2021
The Trek Powerfly 5 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include internal routing, boost 110 , and boost 148. The bike weighs approximately 23 kg.
Features
Internal routing
More info
Internal routing
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Bontrager XR Endurance Comp
|
|---|
|
Steam
|
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
|
|---|---|
|
Saddle
|
Bontrager Commuter Comp
|
|
Battery
|
Bosch PowerTube 625
|
|
Charger
|
Bosch compact 2A (100-240 V) charger
|
|
Seatpost
|
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
|
|
Handlebar
|
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
|
|
Discs
|
Shimano RT66, 203 mm, 6-bolt
|
|
Brakes
|
Shimano BR-MT420
Hydraulic disc brake
4 piston
|
|
BL-MT402-3A SM-RT54 * SM-RT56 * SM-RT64 |
|
|
Crankset
|
SRAM X1 1000, 34T, 165 mm length
|
|---|---|
|
Motor
|
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand
|
|
Shifter
|
SRAM SX Eagle single-click, 12-speed
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Chain
|
SRAM SX Eagle
|
|
Cassette
|
SRAM PG-1210 Eagle
12s
|
|
|
|
|
Frame
|
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armor, Boost148
|
|---|---|
|
Front suspension
|
RockShox Recon Silver RL
Solo Air
|
|
|
|
|
Rims
|
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
|
|---|---|
|
Tires
|
Bontrager XR3 Comp, wire bead, 30 tpi, 29x2.30"
|
|
Front hub
|
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
|
Geometry
| Size | 14.5" | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
|
a
Seat tube length
|
363,0
|
394,0
|
419,0
|
470,0
|
521,0
|
|
b
Seat tube angle
|
73,5º
|
71,6º
|
71,5º
|
71,6º
|
71,6º
|
|
c
Top tube length
|
567,0
|
595,0
|
615,0
|
639,0
|
670,0
|
|
d
Head tube length
|
130,0
|
130,0
|
130,0
|
140,0
|
160,0
|
|
e
Head tube angle
|
68,5º
|
67,6º
|
67,7º
|
67,6º
|
67,6º
|
|
f
Rake
|
42,0
|
43,0
|
55,0
|
46,0
|
45,0
|
|
g
Trail
|
95,0
|
101,0
|
107,0
|
107,0
|
107,0
|
|
h
Wheelbase
|
1096,0
|
1122,0
|
1156,0
|
1171,0
|
1203,0
|
|
i
Chainstay length
|
452,0
|
452,0
|
452,0
|
452,0
|
452,0
|
|
j
Bottom bracket drop
|
65,0
|
49,0
|
48,0
|
49,0
|
49,0
|
|
k
Stack height
|
604,0
|
620,0
|
637,0
|
646,0
|
665,0
|
|
l
Reach
|
387,0
|
387,0
|
401,0
|
422,0
|
447,0
|
|
m
Standover height
|
704,0
|
726,0
|
793,0
|
814,0
|
817,0
|
|
x
Bottom bracket height
|
291,0
|
307,0
|
325,0
|
325,0
|
325,0
|
|
y
Front center
|
652,0
|
674,0
|
708,0
|
723,0
|
755,0
|
